Manometer rear 0/2.5 bar - 50 mm - 1/4"
Code: MZ03-11Related products
Product detailed description

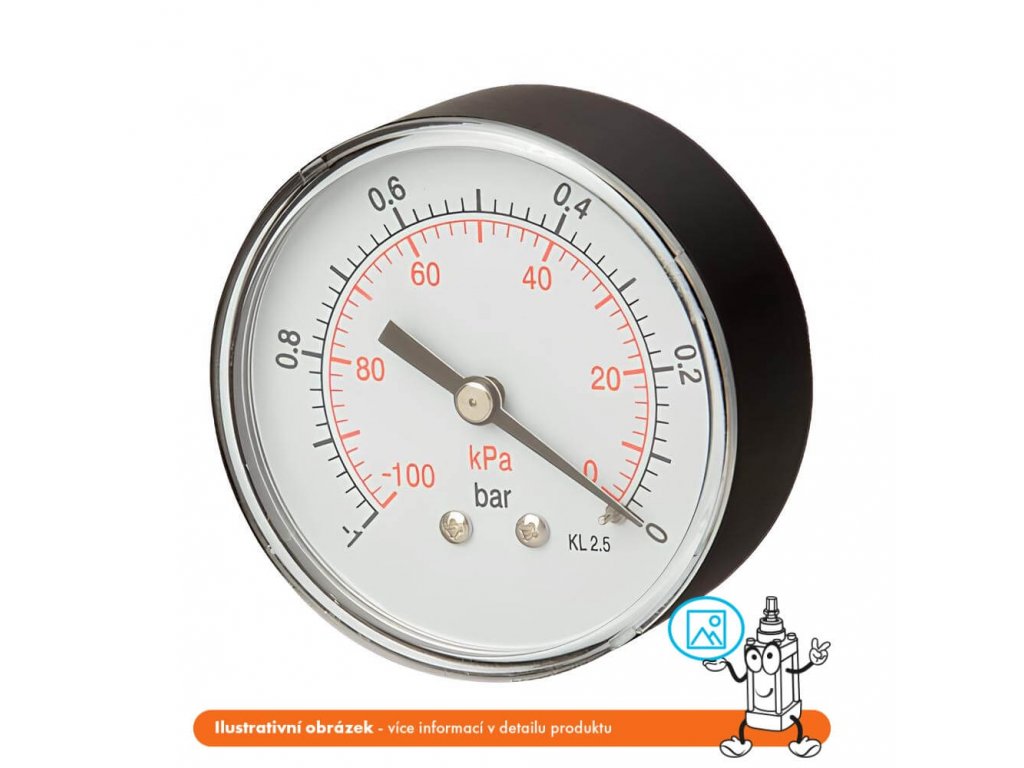

Basic plastic manometer MZ03-11
- Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
- Basic design of pressure gauges with side connection, designed for pressure measurement of non-aggressive media with lower requirements for mechanical resistance of the instrument
- Manometers in 50 mm diameter in plastic with G1/4" thread
- Accuracy class 2.5% with temperature range -40/+60
Additional parameters
| Category: | Plastic manometers MS50 |
|---|---|
| Version: | Plastic manometers |
| Connecting: | rear |
| Windscreen: | Acrylic |
| Material: | Plastic |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 50 mm |
| Scope: | 0 to 2.5 bar |
| Temperature: | -40/+60°C |
| Accuracy class: | 2,5 % |
| Thread: | G 1/4" |
| Glycerinové tlumení: | Ne |
