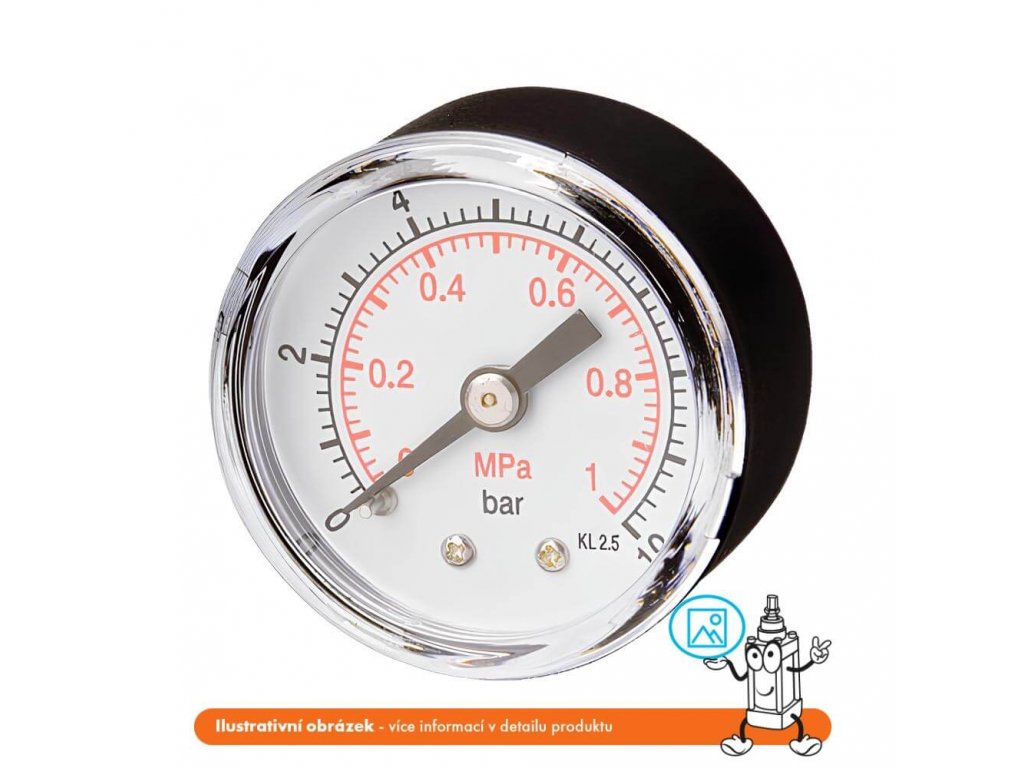

    Manometer rear 0/10 bar - 40 - 1/8"

    Code: MZ01-14
    Not rated
    186 Kč –4 %
    Manometer rear 0/10 bar - 40 - 1/8"
    186 Kč –4 % 177 Kč / pcs 146 Kč excl. VAT
    Stock (187 pcs)
    Delivery to:
    25.12.2024

    Plastic manometer with 40 mm diameter, G1/8" rear thread connection and 0/10 bar range. Designed for pressure measurements of non-aggressive media with lower demands on the mechanical resistance of the instrument.

    Detailed information

    Related products

    Shut-off pressure gauge cock KM-G12
    Shut-off pressure gauge cock KM-G12
    Stock (2 pcs)
    836 Kč excl. VAT
    1 012 Kč

    The working pressure is 25 bar. Connection is G 1/2". The body of the tap is made of brass.

    Code: KM-G12
    Proportional regulator 1/4" - 4-20mA - 0-6 bar
    75 600 Kč –5 %
    Proportional regulator 1/4" - 4-20mA - 0-6 bar
    up to 14 days
    59 355 Kč excl. VAT
    71 820 Kč

    Proportional pressure regulator with a flow rate of 530 l/min, 0 - 6 bar control, controlled by a 4-20 mA electrical signal. Integrated transducer to convert the electrical...

    Code: DRPE14-6A
    Manometer cover GOMB-40
    Manometer cover GOMB-40
    Stock (6 pcs)
    36 Kč excl. VAT
    44 Kč

    The diameter of the cover is 40 mm. It is suitable for applications with higher demands on instrument life.

    Code: GOMB-40
    Show all related products

    Product detailed description

    Basic plastic manometer MZ01-14

    • Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
    • Basic design of back-connected pressure gauges, designed for pressure measurement of non-aggressive media with lower demands on the mechanical resistance of the instrument
    • Manometers in 40 mm diameter in plastic with G1/8" thread
    • Accuracy class 2.5% with temperature range -40/+60

    Additional parameters

    Category: Plastic manometers MS40
    Version: Plastic manometers
    Connecting: rear
    Windscreen: Acrylic
    Material: Plastic
    Medium: Air, Water
    Measuring member: Brass
    Average: 40 mm
    Scope: 0 to 10 bar
    Temperature: -40/+60°C
    Accuracy class: 2,5 %
    Thread: G 1/8"
    Glycerinové tlumení: Ne
