Manometer side -1/3 bar - 100 mm - 1/2"
Code: MS06-04Related products
Product detailed description

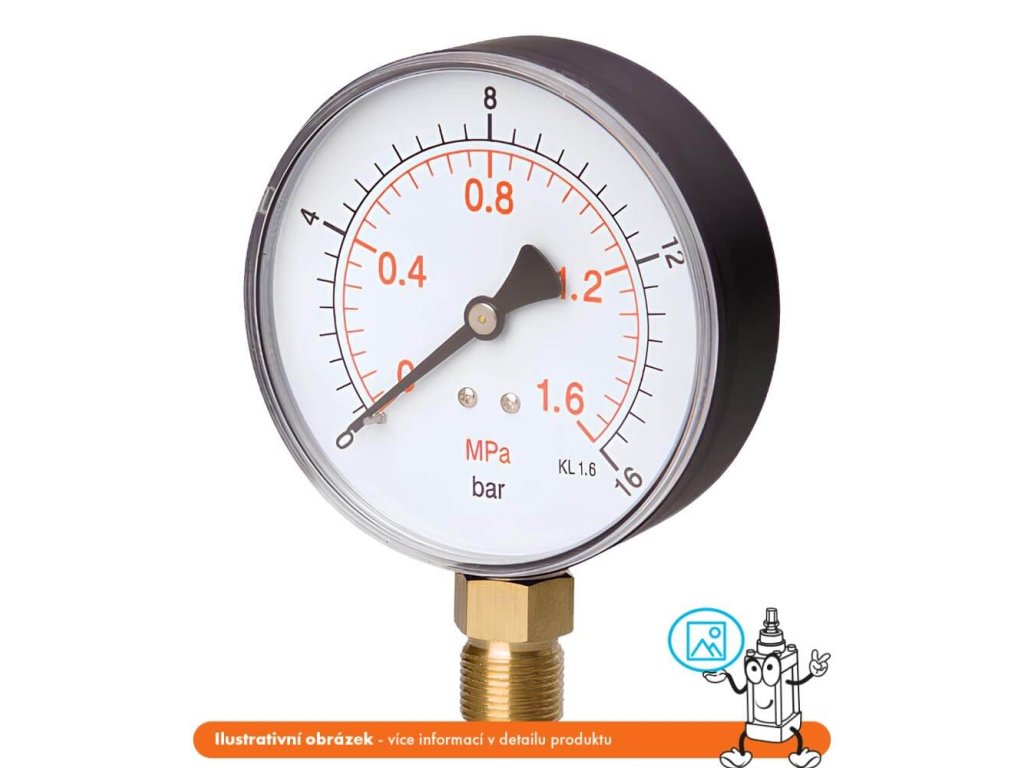

Basic plastic manometer MS06-04
- Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
- Basic design of pressure gauges with side connection, designed for pressure measurement of non-aggressive media with lower requirements for mechanical resistance of the instrument
- Manometers in 100 mm diameter in plastic with G1/2" thread
- Accuracy class 1.6% with temperature range -40/+60
Additional parameters
| Category: | Plastic manometers MS100 |
|---|---|
| Version: | Plastic manometers |
| Connecting: | party |
| Windscreen: | Acrylic |
| Material: | Plastic |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 100 mm |
| Scope: | -1 to 3 bar |
| Temperature: | -40/+60°C |
| Accuracy class: | 1,6 % |
| Thread: | G 1/2" |
| Glycerinové tlumení: | Ne |
