Manometer side 0/1 bar - 63 mm - M12*1.5
Code: MS05-09Related products
Product detailed description

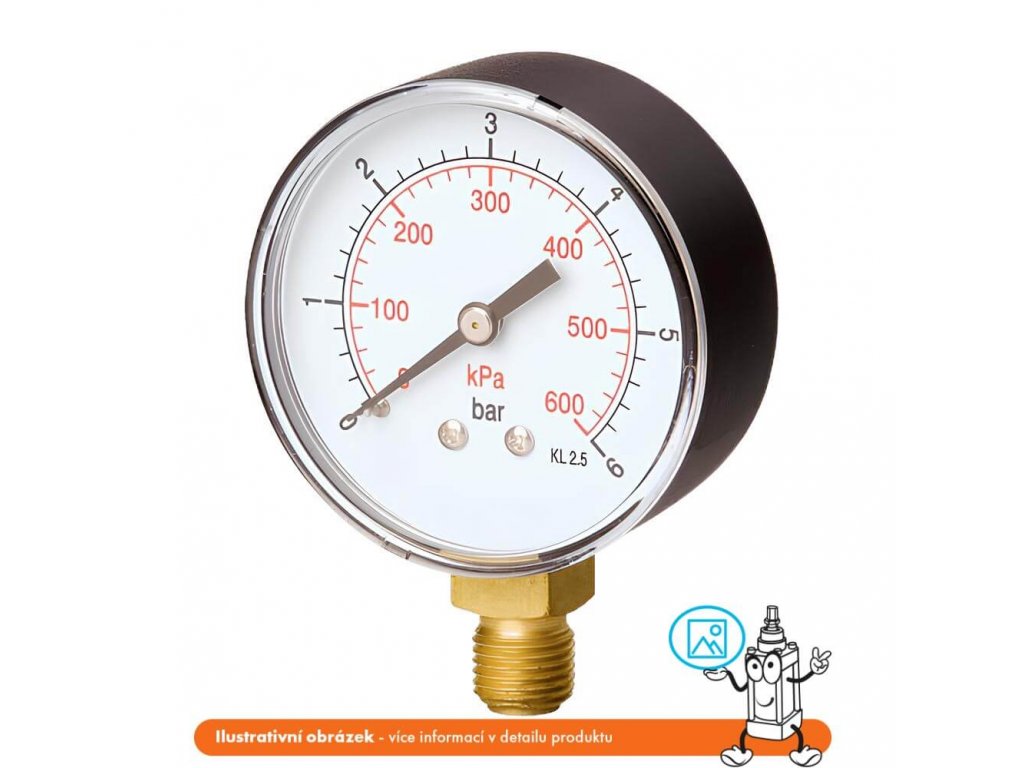

Basic plastic manometer MS05-09
- Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
- Basic design of pressure gauges with side connection, designed for pressure measurement of non-aggressive media with lower requirements for mechanical resistance of the instrument
- Manometers with diameter 63 mm in plastic version with thread M12*1,5
- Accuracy class 2.5% with temperature range -40/+60
Additional parameters
| Category: | Plastic manometers MS63M |
|---|---|
| Version: | Plastic manometers |
| Connecting: | party |
| Windscreen: | Acrylic |
| Material: | Plastic |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 63 mm |
| Scope: | 0 to 1 bar |
| Temperature: | -40/+60°C |
| Accuracy class: | 2,5 % |
| Thread: | M12 x 1.5 |
| Glycerinové tlumení: | Ne |
