Pressure gauge with face flange 0/10 bar - 50 mm - 1/4"

Code: MSE50-10
648 Kč –4 %

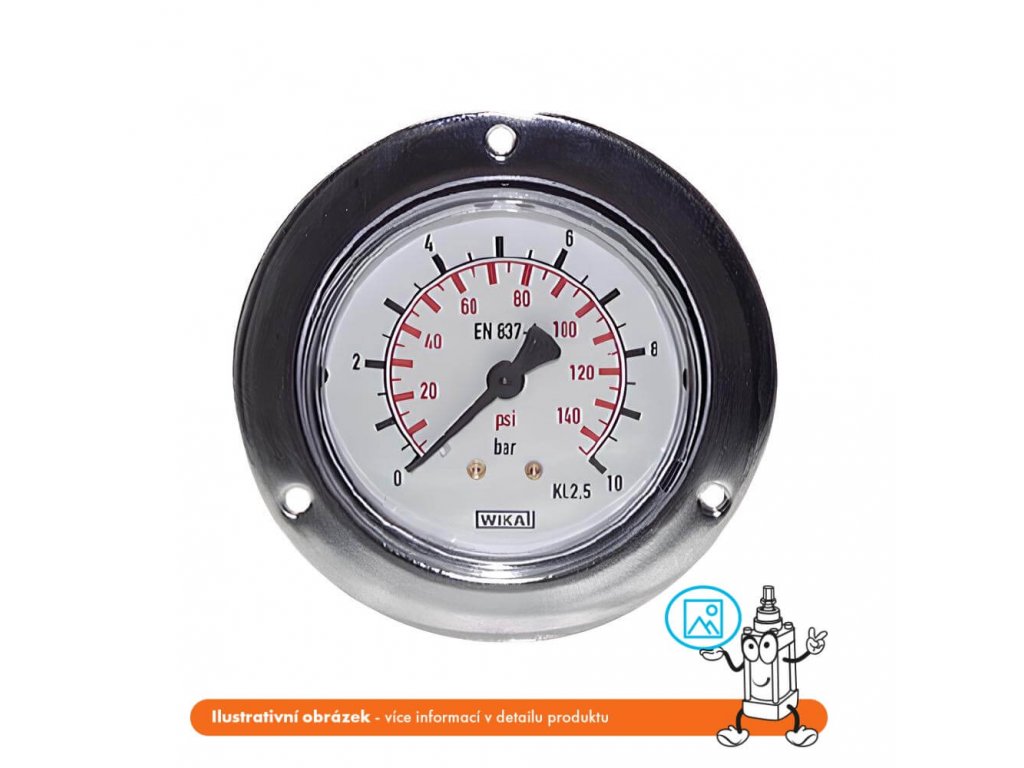

Pressure gauge with face flange 0/10 bar - 50 mm - 1/4"
648 Kč –4 % 616 Kč / pcs 509 Kč excl. VAT
up to 14 days
Delivery to:
22.04.2025
Delivery offer

Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/10 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and pointer made of copper, windscreen made of plastic. Designed especially for deliveries to production equipment, machines and lines.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Panel gauge with front mounting flange MSE50-10

  • Face flange gauges for easy mounting to machine panels, production lines and equipment
  • Materials used : steel body, copper measuring member and pointer, plastic windscreen
  • Medium temperature up to a maximum of +60°C
  • Designed especially for deliveries to production equipment, machines and lines

Additional parameters

Category: Pressure gauges for MSE panel with mounting flange
Version: Panel gauge with front flange
Connecting: rear
Windscreen: Plastic
Material: Steel
Medium: Air, Water
Measuring member: Copper
Average: 50 mm
Scope: 0 to 10 bar
Temperature: -20/+60°C
Accuracy class: 2,5 %
Thread: G 1/4"
Glycerin damping: No
