Manometer robust side 0/600 bar - 100 - 1/2"
Code: RS06-23Related products
Product detailed description

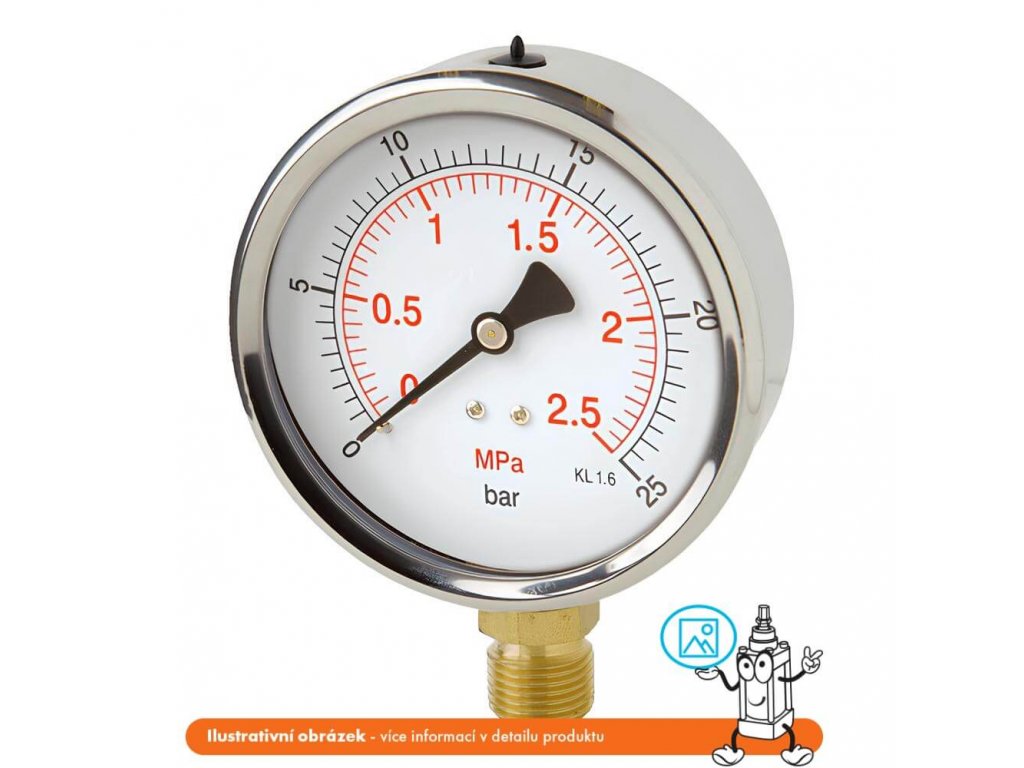

Robust stainless steel manometer in RS06-23 side version
- Robust gauges with stainless steel body for mechanically demanding applications
- Designed for pressure and vacuum measurement of compressed air, water and non-aggressive liquids
- Body made of AISI 201 stainless steel, measuring member and connecting parts made of brass, acrylic sight glass
- The body is equipped with a hole with a plug for possible filling with glycerine
- Double scale in bar and kPa/MPa, accuracy class 1.6%
- Bottom connection with external thread
- Operating temperature -40/+60°C
Additional parameters
| Category: | Robust RS pressure gauges for medium pressure measurement |
|---|---|
| Version: | Manometer robust |
| Connecting: | party |
| Windscreen: | Acrylic |
| Material: | Stainless steel |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 100 mm |
| Scope: | 0 to 600 bar |
| Temperature: | -20/+60°C |
| Accuracy class: | 1,6 % |
| Thread: | G 1/2" |
| Glycerinové tlumení: | Ne |
