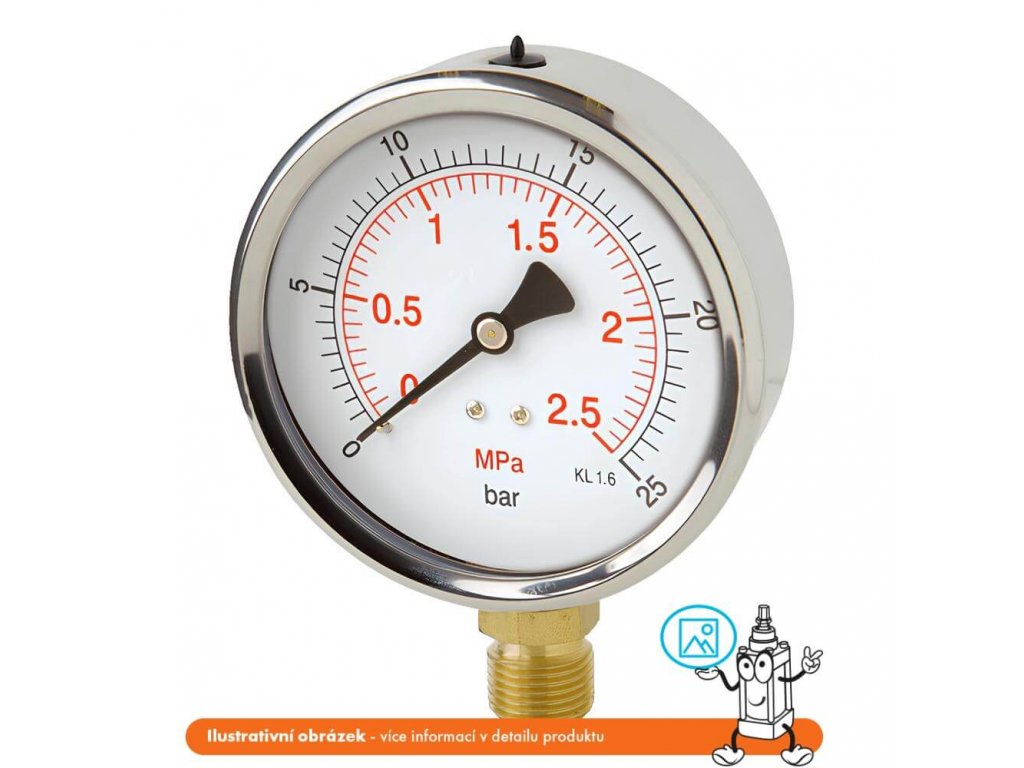

    Manometer robust side 0/1 bar - 100 - M20x1.5

    Code: RS07-09
    Tip
    Not rated
    924 Kč –4 %
    Manometer robust side 0/1 bar - 100 - M20x1.5
    924 Kč –4 % 878 Kč / pcs 726 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025

    Robust manometer with 100 mm diameter stainless steel body with M20x1.5 side connection and measuring range 0/1 bar with 1.6% deviation. Suitable for mechanically demanding applications for pressure and vacuum measurement in compressed air, water and non-aggressive fluids. Body made of AISI 201 stainless steel, measuring member and connecting parts made of brass, acrylic sight glass. Double scale in bar and kPa/MPa, working temperature -40/+60°C.

    Detailed information

    Related products

    Manometer cover GOMB-100
    Manometer cover GOMB-100
    Stock (10 pcs)
    393 Kč excl. VAT
    476 Kč

    The diameter of the cover is 100 mm. It is suitable for applications with higher demands on instrument life.

    Code: GOMB-100
    Shut-off pressure gauge cock KM-M20
    Shut-off pressure gauge cock KM-M20
    Stock (7 pcs)
    836 Kč excl. VAT
    1 012 Kč

    The working pressure is 25 bar. Connection is M20 × 1.5. The body of the tap is made of brass.

    Code: KM-M20
    Test pressure gauge tap KZ-M20
    Test pressure gauge tap KZ-M20
    Stock (3 pcs)
    1 067 Kč excl. VAT
    1 291 Kč

    The working pressure is 25 bar. Connection is M20 × 1.5. The body of the tap is made of brass.

    Code: KZ-M20
    Pressure gauge connection socket PTN-M20M20L
    Pressure gauge connection socket PTN-M20M20L
    Stock (6 pcs)
    189 Kč excl. VAT
    229 Kč

    The connection is equipped with two internal threads M20 × 1.5 and M20 × 1.5 left-hand.

    Code: PTN-M20M20L
    Sealing ring TP-M20
    Sealing ring TP-M20
    Stock (12 pcs)
    6 Kč excl. VAT
    7 Kč

    Sealing ring made of aluminium for thread M20 × 1.5; G 1/2".

    Code: TP-M20
    Show all related products Previous product Next product

    Product detailed description

    Robust stainless steel pressure gauge in side version RS07-09

    • Robust gauges with stainless steel body for mechanically demanding applications
    • Designed for pressure and vacuum measurement of compressed air, water and non-aggressive liquids
    • Body made of AISI 201 stainless steel, measuring member and connecting parts made of brass, acrylic sight glass
    • The body is equipped with a hole with a plug for possible filling with glycerine
    • Double scale in bar and kPa/MPa, accuracy class 1.6%
    • Bottom connection with external thread
    • Operating temperature -40/+60°C

    Additional parameters

    Category: Robust RS pressure gauges for medium pressure measurement
    Connecting: party
    Windscreen: Acrylic
    Material: Stainless steel
    Medium: Air, Water
    Measuring member: Brass
    Average: 100 mm
    Scope: 0 to 1 bar
    Temperature: -20/+60°C
    Accuracy class: 1,6 %
    Thread: M20 x 1.5
    Glycerinové tlumení: Ne
