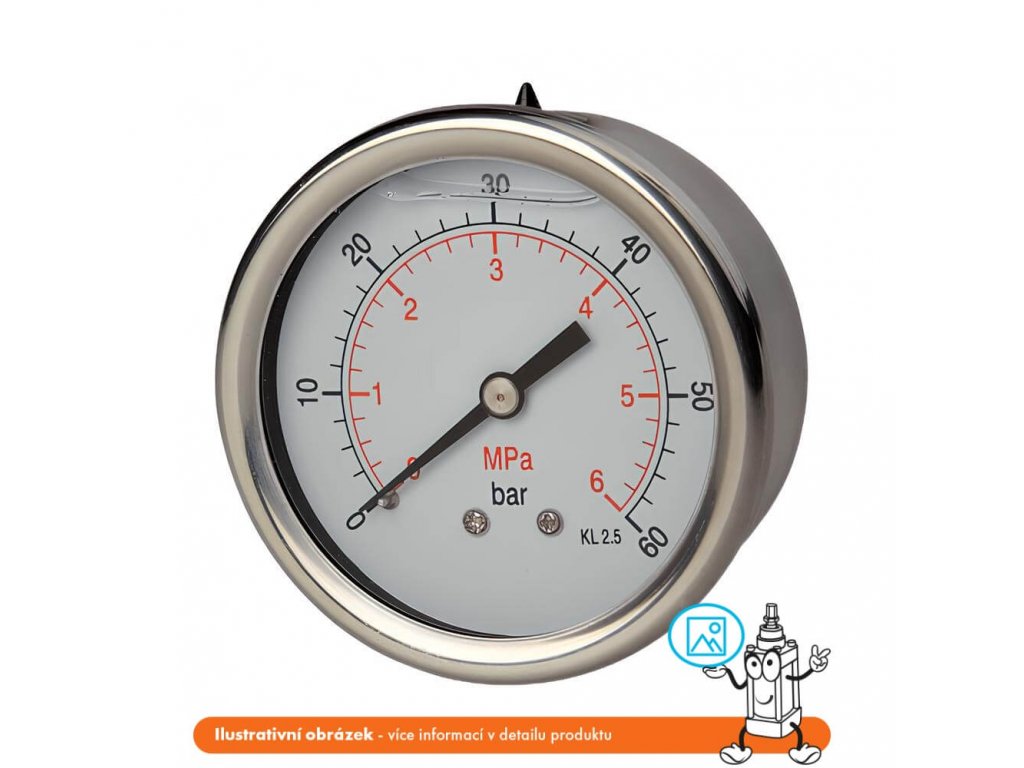

Pressure gauge glycerin rear 0/60 bar - G1/4"
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Related products
–4 %
Manometer cover GOMB-63
The diameter of the cover is 63 mm. It is suitable for applications with...
Shut-off pressure gauge valve VM-400-G12-O
The working pressure is 400 bar. Connection is G 1/2". The valve body is...
Test pressure gauge valve VZ-400-G12-O
The working pressure is 400 bar. Connection is G 1/2". The valve body is...
Pressure gauge connection socket PTN-G14G14L
The connection is equipped with two internal threads G 1/4" and G 1/4" left.
Sealing ring TP-M12
Sealing ring made of aluminium for thread M12 × 1.5; G 1/4".
Glycerin manometer GZ04-18
- Shock-resistant design, glycerine filling makes it easy to read the measured pressure
- Materials used : pressed brass body, brass measuring member and pointer, acrylic windscreen
- Pressure gauges with bottom and rear connection, designed for pressure measurement of non-aggressive media with higher demands on the mechanical resistance of the instrument
Technical parameters
| Category: | GS Glycerine Pressure Gauges for measuring the pressure of the medium |
|---|---|
| Version: | Glycerin manometers |
| Connecting: | rear |
| Windscreen: | Acrylic |
| Material: | Steel |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 63 mm |
| Scope: | 0 to 60 bar |
| Temperature: | -20/+60°C |
| Accuracy class: | 1,6 % |
| Thread: | G 1/4" |
| Glycerinové tlumení: | Ano |
