Pressure gauge glycerin rear 0/6 bar - G1/4"
Code: GZ04-13Related products
Product detailed description

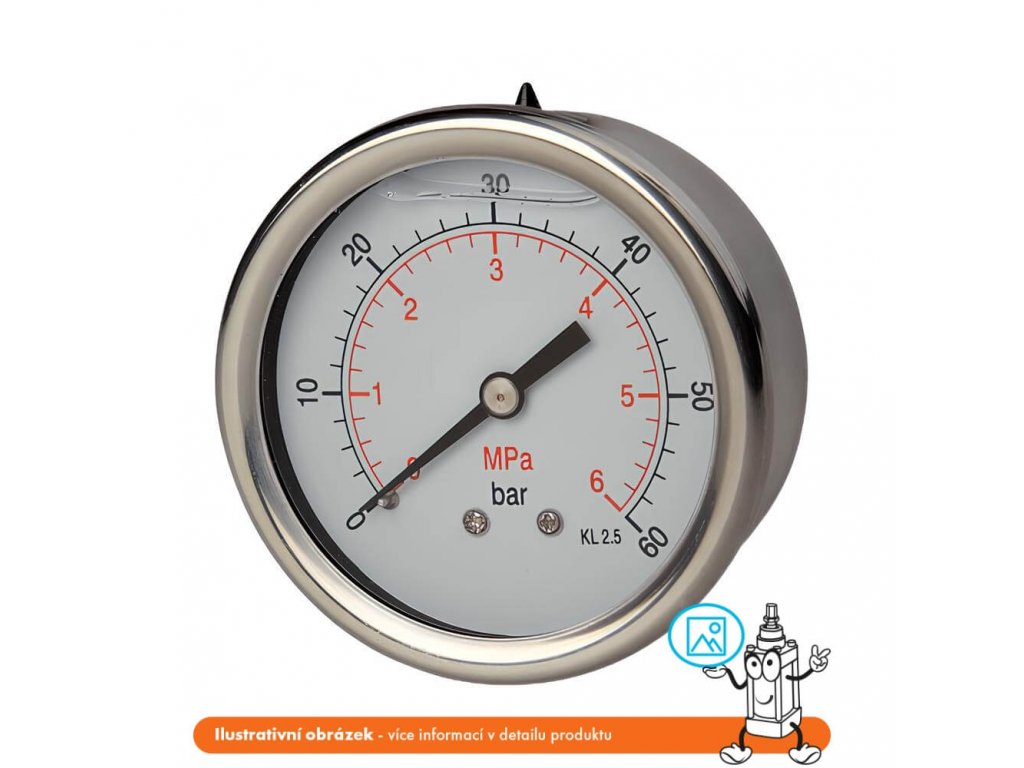

Glycerin manometer GZ04-13
- Shock-resistant design, glycerine filling makes it easy to read the measured pressure
- Materials used : pressed brass body, brass measuring member and pointer, acrylic windscreen
- Pressure gauges with bottom and rear connection, designed for pressure measurement of non-aggressive media with higher demands on the mechanical resistance of the instrument
Additional parameters
| Category: | GS Glycerine Pressure Gauges for measuring the pressure of the medium |
|---|---|
| Version: | Glycerin manometers |
| Connecting: | rear |
| Windscreen: | Acrylic |
| Material: | Steel |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 63 mm |
| Scope: | 0 to 6 bar |
| Temperature: | -20/+60°C |
| Accuracy class: | 1,6 % |
| Thread: | G 1/4" |
| Glycerinové tlumení: | Ano |
