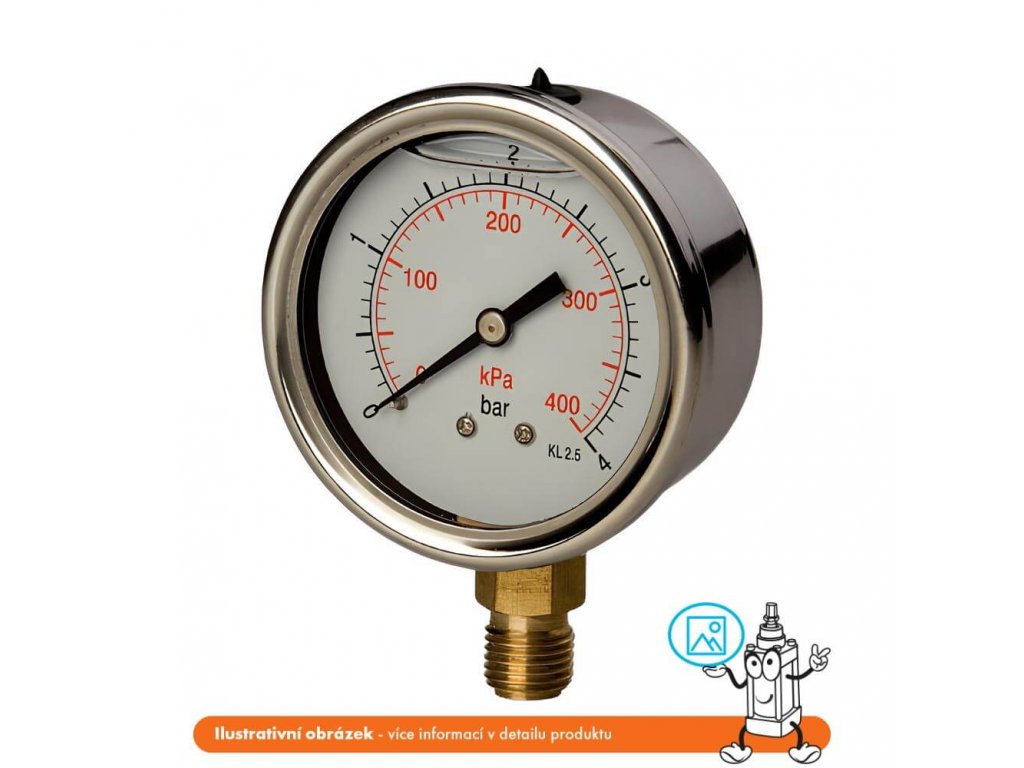

    Glycerin manometer side 0/6 bar - M20x1.5

    Code: GS07-13
    Tip
    Not rated
    999 Kč –5 %
    Glycerin manometer side 0/6 bar - M20x1.5
    999 Kč –5 % 949 Kč / pcs 784 Kč excl. VAT
    Stock (3 pcs)
    Delivery to:
    22.11.2024

    glycerine manometer with 0/6 bar range. Indicator diameter 100 mm with side connection M20 x 1,5. Glycerine filling makes it easier to read the measured pressure for pressure surges. Designed for pressure measurement of non-aggressive media with higher demands on the mechanical resistance of the instrument

    Detailed information

    Related products

    Manometer cover GOMB-100
    Manometer cover GOMB-100
    Stock (10 pcs)
    393 Kč excl. VAT
    476 Kč

    The diameter of the cover is 100 mm. It is suitable for applications with higher demands on instrument life.

    Code: GOMB-100
    Shut-off pressure gauge cock KM-M20
    Shut-off pressure gauge cock KM-M20
    Stock (7 pcs)
    836 Kč excl. VAT
    1 012 Kč

    The working pressure is 25 bar. Connection is M20 × 1.5. The body of the tap is made of brass.

    Code: KM-M20
    Test pressure gauge tap KZ-M20
    Test pressure gauge tap KZ-M20
    Stock (2 pcs)
    1 067 Kč excl. VAT
    1 291 Kč

    The working pressure is 25 bar. Connection is M20 × 1.5. The body of the tap is made of brass.

    Code: KZ-M20
    Pressure gauge connection socket PTN-M20M20L
    Pressure gauge connection socket PTN-M20M20L
    Stock (6 pcs)
    189 Kč excl. VAT
    229 Kč

    The connection is equipped with two internal threads M20 × 1.5 and M20 × 1.5 left-hand.

    Code: PTN-M20M20L
    Sealing ring TP-M20
    Sealing ring TP-M20
    Stock (2 pcs)
    6 Kč excl. VAT
    7 Kč

    Sealing ring made of aluminium for thread M20 × 1.5; G 1/2".

    Code: TP-M20
    Show all related products Previous product Next product

    Product detailed description

    Glycerine manometer GS07-13

    • Glycerine-filled gauges ensure accurate readings and are shockproof
    • Designed for pressure and vacuum measurement of compressed air, water and non-aggressive fluids, especially suitable for hydraulic applications
    • Steel body, measuring member and connection parts made of brass, acrylic sight glass
    • The body is equipped with a hole with a plug for refilling glycerine
    • Double scale in bar and kPa/MPa, accuracy class 1.6°%
    • GS = bottom connection with external thread

    Additional parameters

    Category: GS Glycerine Pressure Gauges for measuring the pressure of the medium
    Version: Glycerin manometers
    Connecting: party
    Windscreen: Acrylic
    Material: Steel
    Medium: Air, Water
    Measuring member: Brass
    Average: 100 mm
    Scope: 0 to 6 bar
    Temperature: -20/+60°C
    Accuracy class: 1,6 %
    Thread: M20 x 1.5
    Glycerinové tlumení: Ano
