Lüdecke is a German manufacturer of quick couplings, fittings and valves for low-pressure systems. The company was founded in Leipzig in 1930 by the engineer Emil Georg Lüdecke, who developed the claw coupling for compressed air that is used worldwide today. Since 1949 the company has been producing in Amberg, Bavaria. Today the family-owned LÜDECKE GmbH offers around 30,000 products for pneumatics, mould temperature control, construction and the food industry. We offer quick couplings for compressed air, couplings for plastics machinery and moulds, SKG bayonet couplings, as well as coiled hoses with fittings and blow guns.

A coupling and a nipple only fit together if they share the same profile. The most common is the European profile ES DN 7.2, but Lüdecke also makes larger bores for tools with high air consumption and profiles for machines from America, Britain or Asia.

Lüdecke ES, ESE, ESH and ESIG quick couplings and an SKG bayonet couplingGerman manufacturer
1930year LÜDECKE was founded
DN 2.7–19coupling bores in our range
8,000 l/minflow of the ESG high-flow coupling
+200 °Cfor stainless ESE and mould couplings

Lüdecke coupling systems

Lüdecke ES brass quick coupling with hose tail

ES — standard DN 7.2

The most common profile for air. Brass quick couplings and nipples for the workshop, compressor and tools.

  • single shut-off, double shut-off or free flow
  • pressure up to 35 bar
  • MS 58 brass or nickel-plated
View ES series
Lüdecke ESE stainless quick coupling with hose tail

ESE — stainless steel

For food, pharma and chemicals. Stainless DN 7.2 couplings wherever cleanliness and corrosion matter.

  • stainless steel 1.4305
  • working temperature up to +200 °C
  • also for other gases and liquids
View ESE series
Lüdecke ESIS safety quick coupling with hose tail

ESIS — safety couplings

Disconnects in two steps. The coupling first vents the hose and only then releases the nipple.

  • no hose whip on disconnection
  • flow 1,800 l/min
  • DN 7.8 profile, up to 12 bar
View ESIS series
Lüdecke ESIG Industry quick coupling with hose tail

ESIG Industry — DN 10

More air for demanding tools. Robust nickel-plated brass and steel couplings for industry and construction.

  • flow 2,100 l/min
  • single or double shut-off
  • hose tails up to 19 mm
View ESIG series
Lüdecke ESG high-flow quick coupling with hose tail

ESG — high flow DN 19

For machines with high air demand. A large MS 58 brass coupling with low pressure drop.

  • flow 8,000 l/min
  • hose tails 19 and 25 mm
  • also with G 1" and G 1 1/4" threads
View ESG series
Lüdecke ESA quick coupling with American profile

Other profiles — ESA, ESO, ESBI, ESK

When the machine has no European nipple. Quick couplings for American, Benelux, British and Asian profiles.

  • ESA and ESAI — American profile
  • ESO and ESOI — Switzerland and Benelux
  • ESBI British, ESK Asian
All profiles
Lüdecke ESH quick coupling with female thread

Couplings for moulds

Water and thermal oil up to +200 °C. ESHM, ESH and ESHG series for plastics machinery and moulds, also in stainless steel.

  • nipples 9, 13 and 19 mm
  • free flow or shut-off as required
  • up to 15 bar, FKM seal
View mould couplings
Lüdecke SKG bayonet coupling with male thread

SKG — bayonet couplings

For building sites and heavy duty. Malleable iron couplings with a double safety tab for compressed air on site.

  • DIN 3489, 10 bar
  • temperature −40 to +95 °C
  • hose tail, female or male thread
View SKG couplings

Looking for push-in fittings, threaded fittings or a manifold? Everything for connecting hoses and tools is in our Couplings & fittings category.

All couplings & fittings

Lüdecke systems side by side

Profile, material, pressure and use
SystemProfileMaterialMax. pressureUse
ESDN 7.2brass, nickel-plated brass35 barcompressed air in workshops and industry
ESEDN 7.2stainless steel35 barfood, pharma, chemicals, up to +200 °C
ESISDN 7.8nickel-plated brass and steel12 barsafe disconnection with venting
ESIGDN 10nickel-plated brass and steel35 bartools with higher demand, 2,100 l/min
ESGDN 19MS 58 brass35 barmachines with very high demand, 8,000 l/min
ESA, ESO, ESBI, ESKDN 5 to 7.5brass, steel, stainless steel35 barmachines with American, Benelux, British and Asian profiles
ESHM, ESH, ESHGDN 6, 9 and 13brass, also stainless (ESHME, ESHE)15 barmoulds, water and thermal oil up to +200 °C
SKG42 mm bayonetmalleable iron10 barconstruction and industry, DIN 3489

Figures apply to a typical version with hose tail or thread; exact values are given for each product.

How to choose a quick coupling

1. Identify the profile

Check the nipple on the tool or machine. The coupling and nipple must share the same profile; the most common is the European ES DN 7.2.

2. Choose the shut-off

A single shut-off coupling closes the supply when disconnected, so only the air in the nipple escapes. For liquids choose double shut-off, for maximum flow choose free flow.

3. Choose the connection

Pick the hose tail to match the inside diameter of the hose and secure the hose with a clamp. On a pipeline or machine, the coupling screws on with a G or M thread.

4. Look after it

Keep the coupling clean and replace worn ones in time. A leaking coupling wastes air all the time, and the compressor has to produce it again.

Frequently asked questions

Does a nipple from another brand fit a Lüdecke ES coupling?
Yes, if it has the same DN 7.2 profile. The European profile is standardised, so DN 7.2 couplings and nipples from different manufacturers fit together. Couplings with other profiles, such as American or British, will not connect to each other.
What is the difference between single and double shut-off?
With single shut-off only the coupling has a valve, so after disconnection the medium escapes only from the nipple. With double shut-off the nipple has a valve too and nothing escapes, which makes it suitable for liquids. A free-flow coupling has no valve at all and gives the highest flow.
What is the ESIS safety coupling for?
It disconnects in two steps. First the coupling vents the pressure from the hose, and only then releases the nipple. This prevents the hose from whipping.
Which coupling should I use for moulds and temperature control?
For plastics machinery there are the ESHM, ESH and ESHG series with 9, 13 or 19 mm nipples. They handle water and thermal oil up to +200 °C and a pressure of 15 bar. Coloured rings let you mark which medium flows through each hose.
Brass or stainless steel?
For the workshop and a standard air line, brass or nickel-plated brass is enough. Choose ESE stainless couplings for food, pharma and chemicals and wherever there is a risk of corrosion or high temperature.
Does Lüdecke manufacture in Germany?
Yes. Lüdecke develops and manufactures its products in-house in Amberg, Bavaria, where the company has been based since 1949. Its quality management system is certified to ISO 9001:2015 and its environmental management system to ISO 14001:2015.

Lüdecke is a brand of the German company LÜDECKE GmbH based in Amberg. Pressure, flow and material for each coupling are listed on its product page.

Product sorting

1578 items total

List of products

254706 vsuvka s trnem na hadici 6 mm
Tip
€69,38 –5 %
€54,47 excl. VAT
€65,91 / pcs

Nipple with hose barb 6 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands on...

Code: ESE6SAB
254703 vsuvka s vnitrnim zavitem g1 2
Tip
€71,64 –5 %
€56,25 excl. VAT
€68,06 / pcs

Nipple with female thread G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands on...

Code: ESE12NIAB
254700 vsuvka s vnitrnim zavitem g3 8
Tip
€67,12 –5 %
€52,69 excl. VAT
€63,76 / pcs

Nipple with female thread G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands on...

Code: ESE38NIAB
254697 vsuvka s vnitrnim zavitem g1 4
Tip
€67,12 –5 %
€52,69 excl. VAT
€63,76 / pcs

Nipple with female thread G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands on...

Code: ESE14NIAB
254694 vsuvka s vnejsim zavitem g1 2
Tip
€68,23 –5 %
€53,56 excl. VAT
€64,81 / pcs

Nipple with external thread G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands...

Code: ESE12NAAB
254691 vsuvka s vnejsim zavitem g3 8
Tip
€63,76 –5 %
€50,06 excl. VAT
€60,57 / pcs

Nipple with external thread G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands...

Code: ESE38NAAB
254688 vsuvka s vnejsim zavitem g1 4
Tip
€63,76 –5 %
€50,06 excl. VAT
€60,57 / pcs

Nipple with external thread G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high demands...

Code: ESE14NAAB
ESE quick coupling with ribbed hose barb 13 mm with valve
Tip
€120,97 –5 %
€94,98 excl. VAT
€114,92 / pcs

Quick coupling with hose barb, 13 mm grooved. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER13TAB
ESE quick coupling with ribbed hose barb 10 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, 10 mm grooved. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER10TAB
ESE quick coupling with ribbed hose barb 9 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, 9 mm grooved. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER9TAB
ESE quick coupling with ribbed hose barb 8 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, 8 mm grooved. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER8TAB
ESE quick coupling with ribbed hose barb 6 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, 6 mm grooved. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER6TAB
ESE quick coupling with hose barb, smooth 13 mm, with valve
Tip
€120,97 –5 %
€94,98 excl. VAT
€114,92 / pcs

Quick coupling with hose barb, smooth 13 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG13TAB

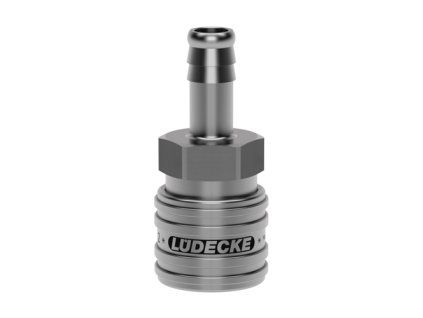

ESE quick coupling with smooth hose barb 10 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, smooth 10 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG10TAB
ESE quick coupling with smooth hose barb 9 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, smooth 9 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESEG9TAB
ESE quick coupling with smooth hose barb 8 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, smooth 8 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESEG8TAB
ESE quick coupling with smooth hose barb 6 mm with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with hose barb, smooth 6 mm. Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESEG6TAB
254655 rychlospojka s vnitrnim zavitem ryhovana g1 2
Tip
€122,41 –5 %
€96,11 excl. VAT
€116,29 / pcs

Quick coupling with female thread grooved G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER12IAB
254652 rychlospojka s vnitrnim zavitem ryhovana g3 8
Tip
€117,27 –5 %
€92,07 excl. VAT
€111,40 / pcs

Quick coupling with female thread grooved G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER38IAB
254649 rychlospojka s vnitrnim zavitem ryhovana g1 4
Tip
€117,27 –5 %
€92,07 excl. VAT
€111,40 / pcs

Quick coupling with female thread grooved G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER14IAB
254646 rychlospojka s vnitrnim zavitem hladka g1 2
Tip
€122,41 –5 %
€96,11 excl. VAT
€116,29 / pcs

Quick coupling with female thread smooth G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG12IAB
254643 rychlospojka s vnitrnim zavitem hladka g3 8
Tip
€117,27 –5 %
€92,07 excl. VAT
€111,40 / pcs

Quick coupling with female thread smooth G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG38IAB
254640 rychlospojka s vnitrnim zavitem hladka g1 4
Tip
€117,27 –5 %
€92,07 excl. VAT
€111,40 / pcs

Quick coupling with female thread smooth G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG14IAB
254637 rychlospojka s vnejsim zavitem ryhovana g1 2
Tip
€120,97 –5 %
€94,98 excl. VAT
€114,92 / pcs

Quick coupling with external thread grooved G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media...

Code: ESER12AAB
ESE Quick coupling with male thread, knurled, G3/8" with valve
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with male thread grooved G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER38AAB
254631 rychlospojka s vnejsim zavitem ryhovana g1 4
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with male thread, knurled G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESER14AAB
254628 rychlospojka s vnejsim zavitem hladka g1 2
Tip
€120,97 –5 %
€94,98 excl. VAT
€114,92 / pcs

Quick coupling with male thread smooth G1/2". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG12AAB
254625 rychlospojka s vnejsim zavitem hladka g3 8
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with male thread smooth G3/8". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG38AAB
254622 rychlospojka s vnejsim zavitem hladka g1 4
Tip
€116,16 –5 %
€91,20 excl. VAT
€110,35 / pcs

Quick coupling with male thread smooth G1/4". Reversible design with integrated valve. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESEG14AAB
254619 vsuvka s trnem na hadici 13 mm
Tip
€27,65 –5 %
€21,70 excl. VAT
€26,26 / pcs

Nipple with hose barb 13 mm. One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE13S
254616 vsuvka s trnem na hadici 10 mm
Tip
€24,23 –4 %
€19,02 excl. VAT
€23,02 / pcs

Nipple with 10 mm hose barb. One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE10S
254613 vsuvka s trnem na hadici 9 mm
Tip
€24,23 –4 %
€19,02 excl. VAT
€23,02 / pcs

Nipple with hose barb 9 mm. One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE9S
254607 vsuvka s trnem na hadici 6 mm
Tip
€24,23 –4 %
€19,02 excl. VAT
€23,02 / pcs

Nipple with hose barb 6 mm. One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE6S
254604 vsuvka s vnitrnim zavitem g1 2
Tip
€24,86 –5 %
€19,51 excl. VAT
€23,61 / pcs

Nipple with female thread G1/2". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE12NI
254601 vsuvka s vnitrnim zavitem g3 8
Tip
€23,13 –5 %
€18,16 excl. VAT
€21,97 / pcs
Measure price: €109,85 / 5 pcs

Nipple with female thread G3/8". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE38NI
254598 vsuvka s vnitrnim zavitem g1 4
Tip
€22,02 –5 %
€17,29 excl. VAT
€20,92 / pcs

Nipple with female thread G1/4". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with high...

Code: ESE14NI
254595 vsuvka s vnejsim zavitem g1 2
Tip
€23,70 –4 %
€18,61 excl. VAT
€22,52 / pcs

Nipple with external thread G1/2". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESE12NA
254592 vsuvka s vnejsim zavitem g3 8
Tip
€21,16 –5 %
€16,61 excl. VAT
€20,10 / pcs

Nipple with external thread G3/8". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESE38NA
254589 1 vsuvka s vnejsim zavitem g1 4
Tip
€20,58 –5 %
€16,16 excl. VAT
€19,55 / pcs

Nipple with external thread G1/4". One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid media with...

Code: ESE14NA
ESE quick coupling with barb for hose, ribbed, 13 mm
Tip
€105,44 –5 %
€82,79 excl. VAT
€100,17 / pcs

Quick coupling with hose barb, 13 mm grooved. One-sided closable design with free-flowing nipple. Designed primarily for compressed air, but also for other gaseous and liquid...

Code: ESER13T

Listing controls

1578 items total
Top
