L-threading internal thread 6 - G1/4"
Code: MPLF-146
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Product detailed description

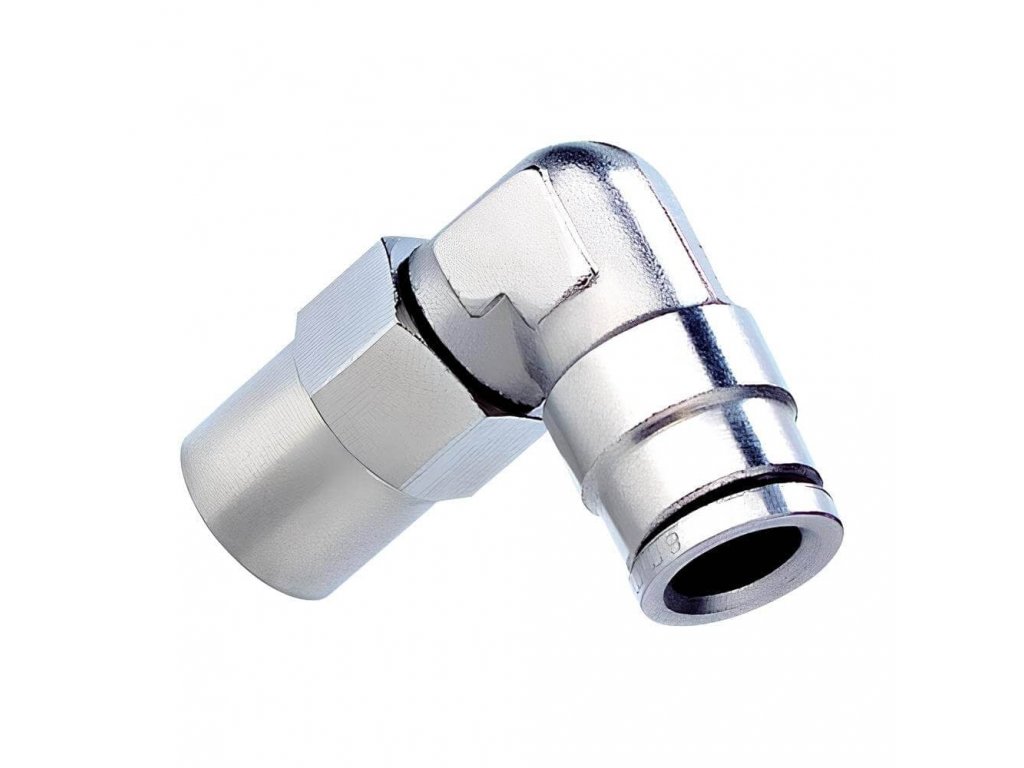

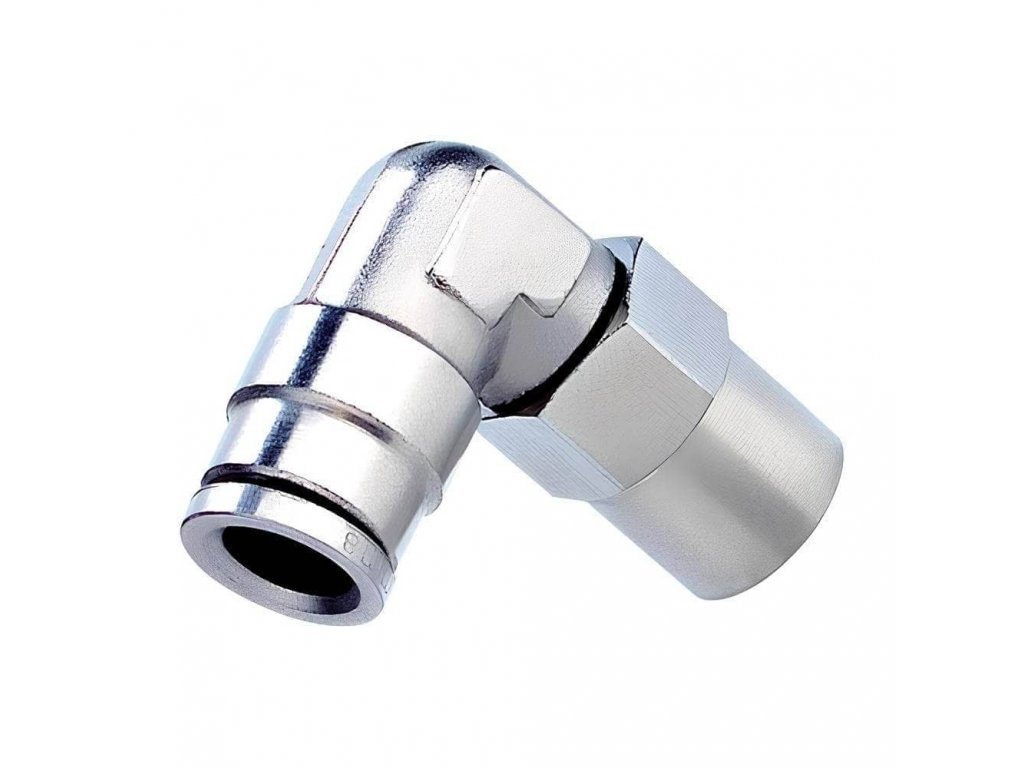

L-fittings with female pipe thread 6 - G 1/4" - metal socket design
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | L-coupling socket female thread G |
|---|---|
| Pressure: | 10 bars |
| A tube: | 6 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Tubular G - Internal |
| SW (key): | 17 |
| Seals: | NBR |
| Thread: | G 1/4" |
| Connection system: | Plug-in system |
