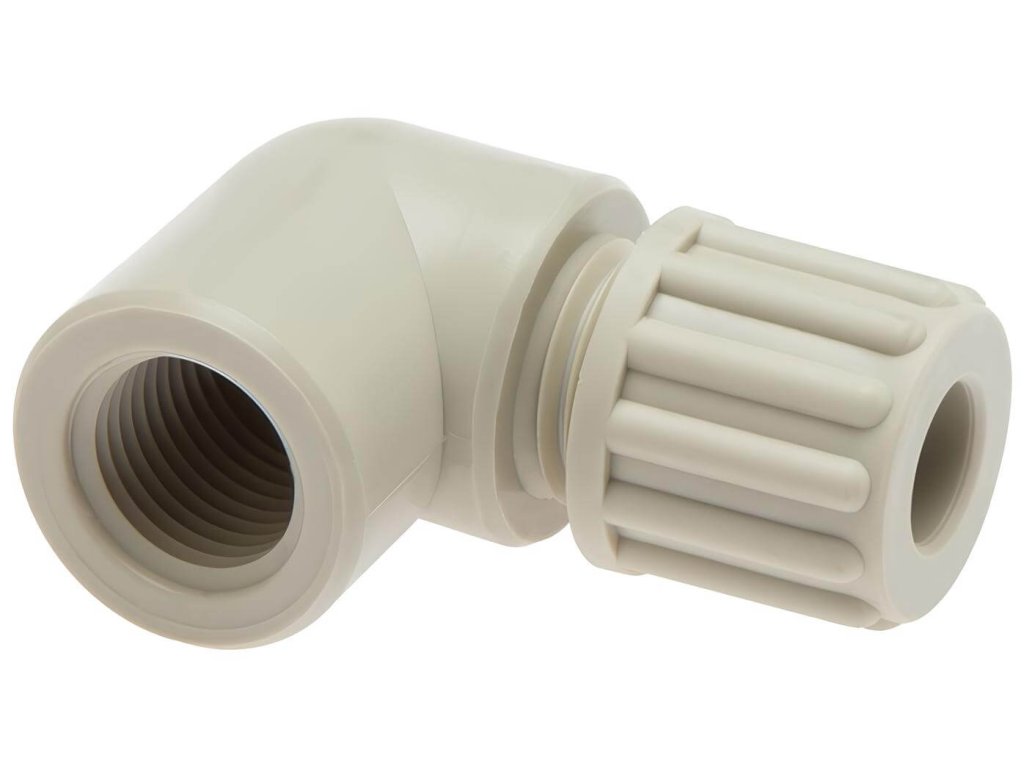

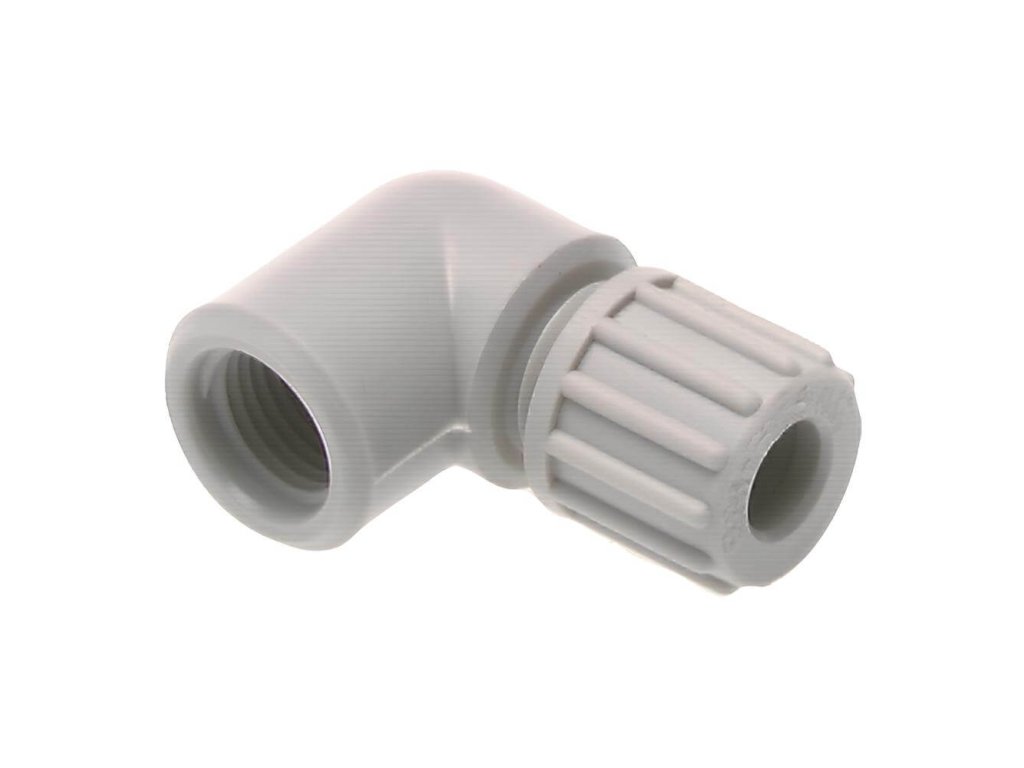

L-thread with internal thread 10 - G1/4" - PA
Code: GCKIPA-1410Related products
Product detailed description
L-fittings with lock nut for aggressive media - 10 - G1/4
- fittings to ensure reliable attachment of plastic tubing with aggressive substances and in higher temperature environments
- available in 4 material versions with different chemical resistance and working temperature
- PA (polyamide) - suitable for air, water, petroleum substances with temperature max. +80 °C (note: PP nuts)
- important note: always contact our company for chemical, pressure and temperature resistance
- designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with high demands on aggressive media
Additional parameters
| Category: | L-fittings with female thread |
|---|---|
| Pressure: | 10 bars |
| A tube: | 10/8 mm |
| Material: | PA - Polyamide |
| Medium: | Aggressive media |
| Pracovní teplotu: | 20 - 80°C |
| Thread: | G 1/4" |
| Connection system: | With cover nut |
