L-thread with external thread 6 - R1/8"
Code: MPL-186Product detailed description

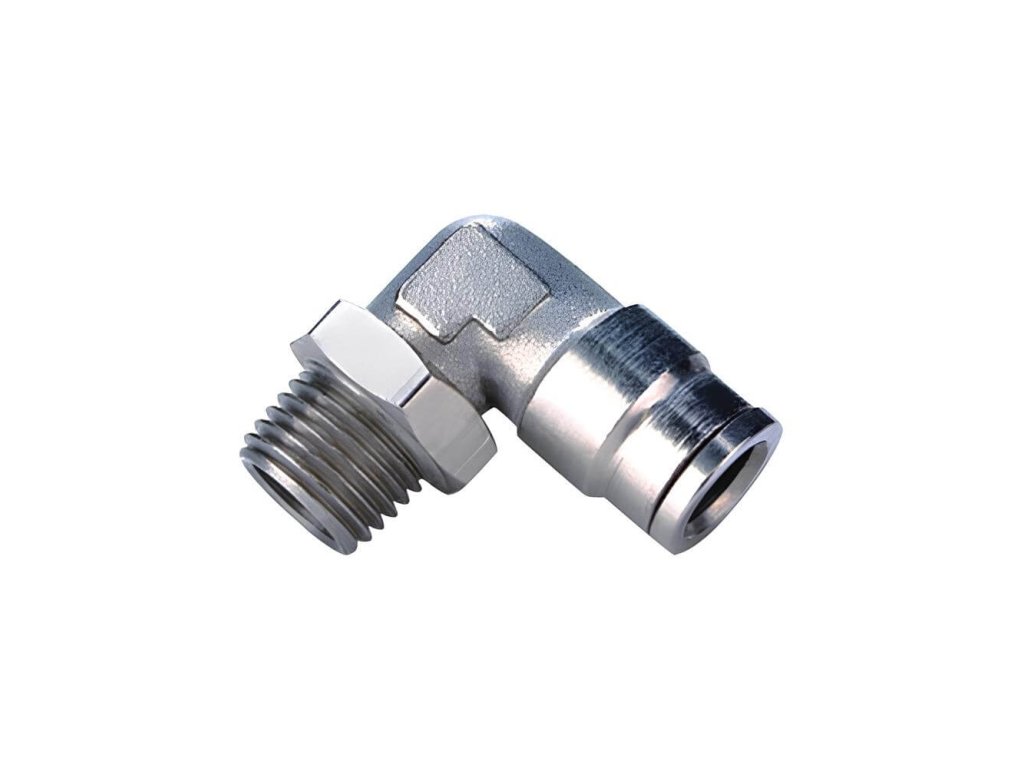

L-fittings with external tapered thread 6 - R 1/8" - metal version
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | L-fitting socket external tapered thread |
|---|---|
| Pressure: | 10 bars |
| A tube: | 6 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Tapered R - Outer |
| SW (key): | 12 |
| Width: | 23 mm |
| Seals: | NBR |
| Thread: | R 1/8" |
| Connection system: | Plug-in system |
