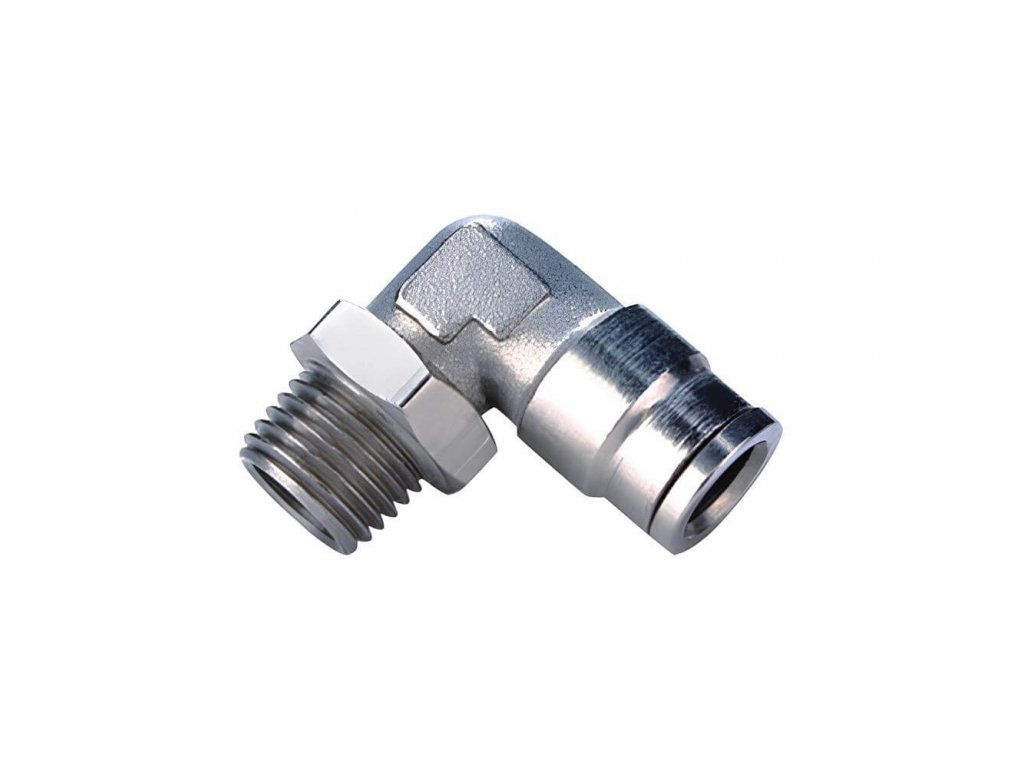

L-thread with external thread 4 - R1/8"

Code: MPL-184
81 Kč –4 %
L-thread with external thread 4 - R1/8"
81 Kč –4 % 77 Kč / pcs 64 Kč excl. VAT
Stock (63 pcs)
Delivery to:
22.10.2024

Socket couplings in corner "L" design for quick and easy assembly of plastic hoses with outer diameter of 4 mm Coupling with outer tapered thread R 1/8". Applications in automation, measurement and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Detailed information

Product detailed description

L-fittings with external tapered thread 4 - R 1/8" - metal version

  • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
  • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
  • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Additional parameters

Category: L-fitting socket external tapered thread
Pressure: 10 bars
A tube: 4 mm
Material: Brass
Medium: Compressed air
Working temperature: -10 / +80 °C
Thread design: Tapered R - Outer
SW (key): 12
Width: 22 mm
Seals: NBR
Thread: R 1/8"
Connection system: Plug-in system
