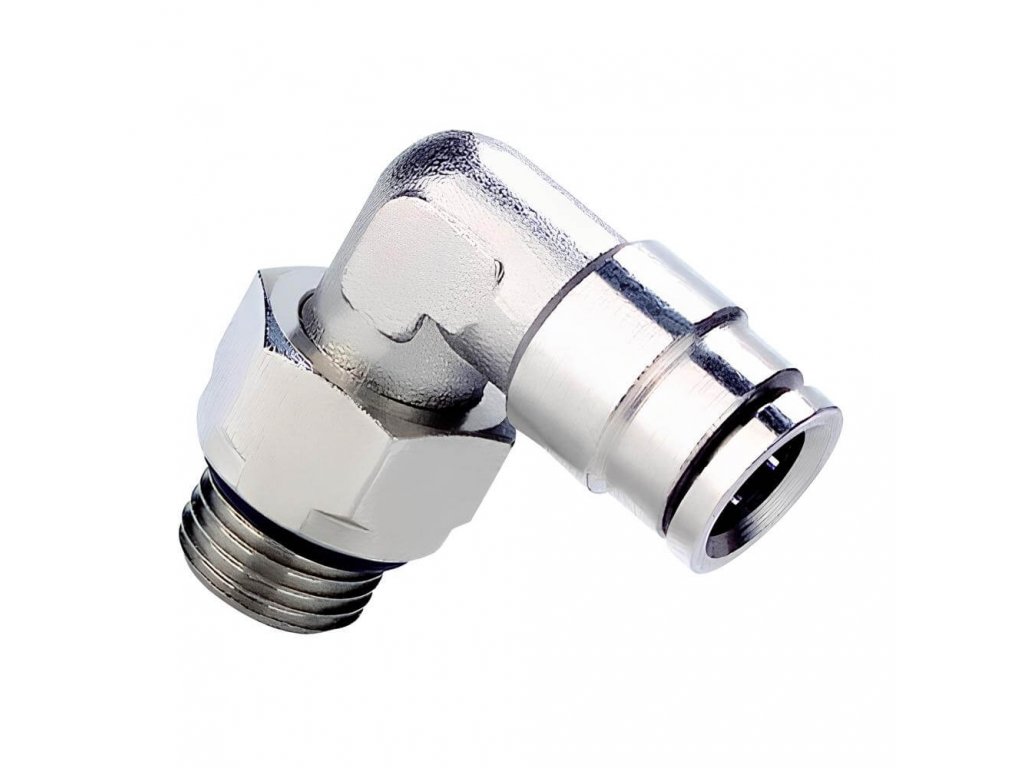

L-thread with external thread 4 - G1/4"
Code: MPLG-144Product detailed description
L-fittings with male pipe thread 4 - G 1/4" - metal version
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | L-shaped socket socket with external pipe thread |
|---|---|
| Pressure: | 10 bars |
| A tube: | 4 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Tubular G - Outer |
| SW (key): | 17 |
| Width: | 21 mm |
| Seals: | NBR |
| Thread: | G 1/4" |
| Connection system: | Plug-in system |
