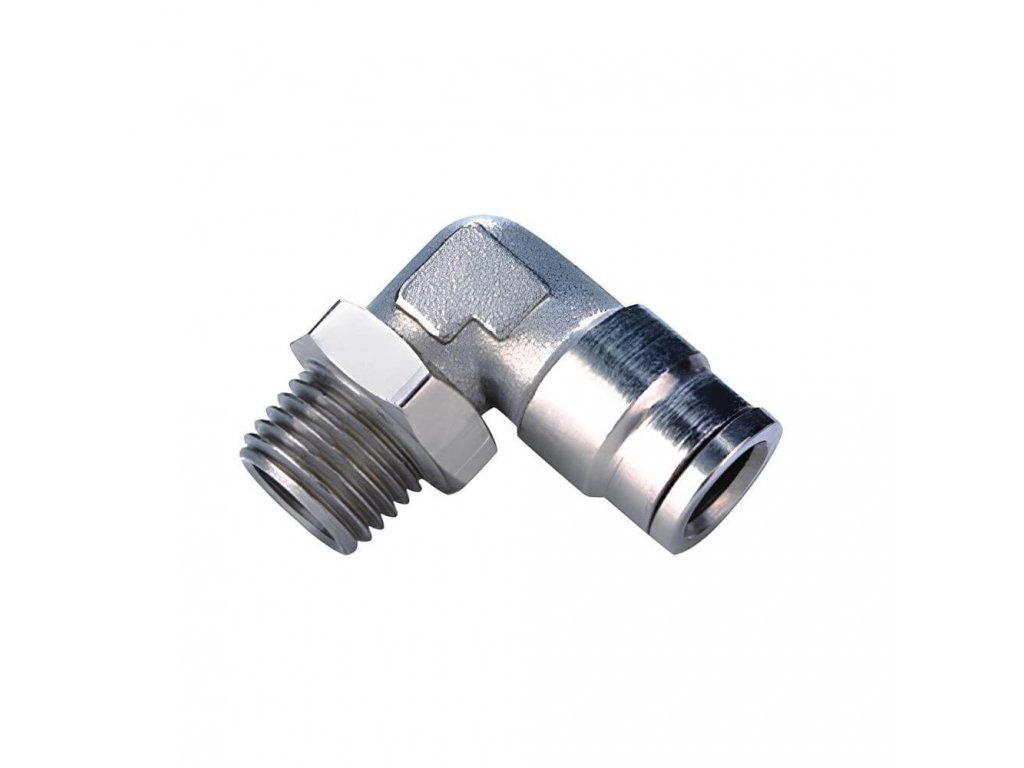

L-thread with external thread 10 - R1/2"
Code: MPL-1210Product detailed description
L-fittings with external tapered thread 10 - R 1/2" - metal version
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
| Category: | L-fitting socket external tapered thread |
|---|---|
| Pressure: | 10 bars |
| A tube: | 10 mm |
| Material: | Brass |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Thread design: | Tapered R - Outer |
| SW (key): | 22 |
| Width: | 33 mm |
| Seals: | NBR |
| Thread: | R 1/2" |
| Connection system: | Plug-in system |
