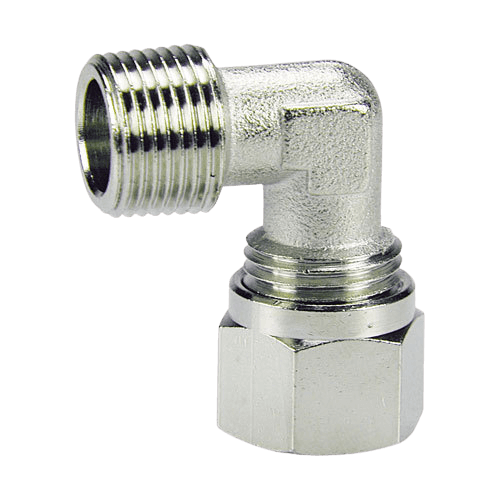

L-fittings with external tapered thread
|
L-fittings with external tapered thread stainless steel |
||||||
Ordering number |
Tube mm |
Thread " |
L1 mm |
L2 mm |
Matrix SW |
Thread length mm |
OX16-186 | 6 mm | R 1/8" | 12 | 15 | 14 | 8 |
OX16-146 | 6 mm | R 1/4" | 15,5 | 15 | 14 | 12 |
OX16-188 | 8 mm | R 1/8" | 15,5 | 18 | 17 | 12 |
OX16-148 | 8 mm | R 1/4" | 14 | 18 | 17 | 12 |
OX16-388 | 8 mm | R 3/8" | 17,5 | 18 | 17 | 12 |
OX16-1410 | 10 mm | R 1/4" | 15 | 19 | 19 | 12 |
OX16-3810 | 10 mm | R 3/8" | 17 | 19 | 19 | 12 |
OX16-1412 | 12 mm | R 1/4" | 17 | 20 | 22 | 12 |
OX16-3812 | 12 mm | R 3/8" | 17 | 20 | 22 | 12 |
OX16-1212 | 12 mm | R 1/2" | 20 | 20 | 22 | 14 |
OX16-1215 | 15 mm | R 1/2" | 21 | 24 | 27 | 14 |
