L-thread with cutting ring 4/2 - R1/8"

Code: O16-184

1 rating

Brand: A.P.I.

85 Kč –4 %

242967 1 l sroubeni s reznym krouzkem 4 2 r1 8

242967 l sroubeni s reznym krouzkem 4 2 r1 8

242967 2 l sroubeni s reznym krouzkem 4 2 r1 8

85 Kč –4 % 81 Kč / pcs 67 Kč excl. VAT

(28 pcs)

Delivery to: 20.11.2024

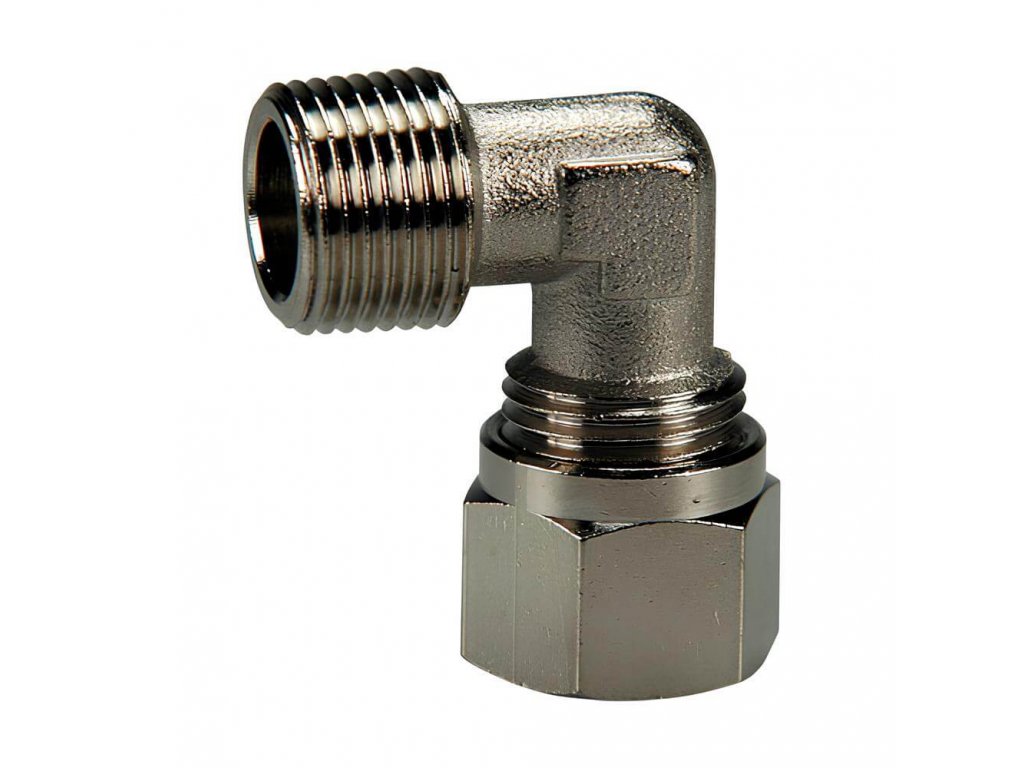

Corner fitting with cutting ring in 1/8" male thread for 4/2 mm tubing. Universal fittings for use in various areas, dimensions and design meet the requirements of DIN 3870-3861. Particularly designed for connecting hoses and pipes with higher working pressure requirements up to 60 bar and temperature in industrial applications. Nickel plated brass material.

Detailed information

Product detailed description

L-nut with nickel-plated brass cutting ring - O16-184

Universal fittings for use in various areas, dimensions and design meet the requirements of DIN 3870-3861
Especially designed for connecting tubing and pipes with higher working pressure and temperature requirements in industrial applications

Additional parameters

Category:	L-fittings with cutting ring
Pressure:	60 bar
A tube:	4 mm
Material:	Brass
Medium:	Compressed air
Working temperature:	-10 / +80°C
Thread design:	Kuželový R
SW (key):	7
Width:	17 mm
Thread:	R 1/8"
Connection system:	With notch ring
