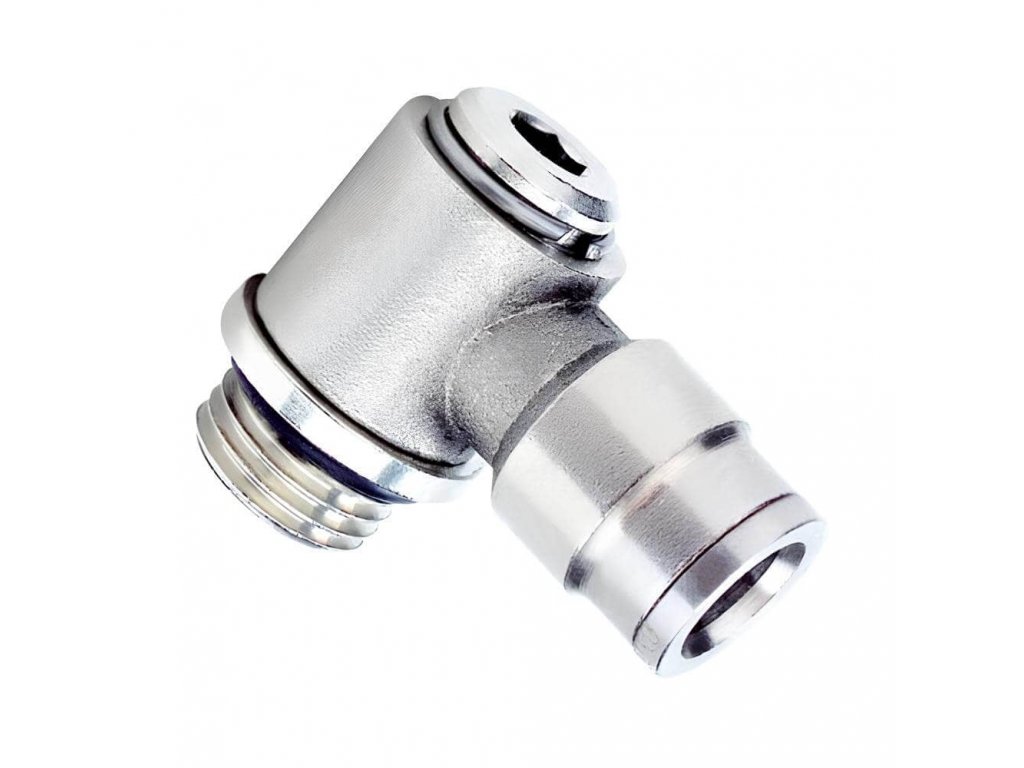

L-threaded rotating external 8 - G1/8"
Code: MPHG-188Product detailed description
L-Shaped swivel fitting with pipe thread 8 - G 1/8" - metal socket design
- Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
- Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
- The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.
Additional parameters
Category: | L-fitting swivel external G |
---|---|
Pressure: | 10 bars |
A tube: | 8 mm |
Material: | Brass |
Medium: | Compressed air |
Working temperature: | -10 / +80 °C |
Thread design: | Tubular G |
SW (key): | 4 |
Width: | 26 mm |
Seals: | NBR |
Thread: | G 1/8" |
Connection system: | Plug-in system |
