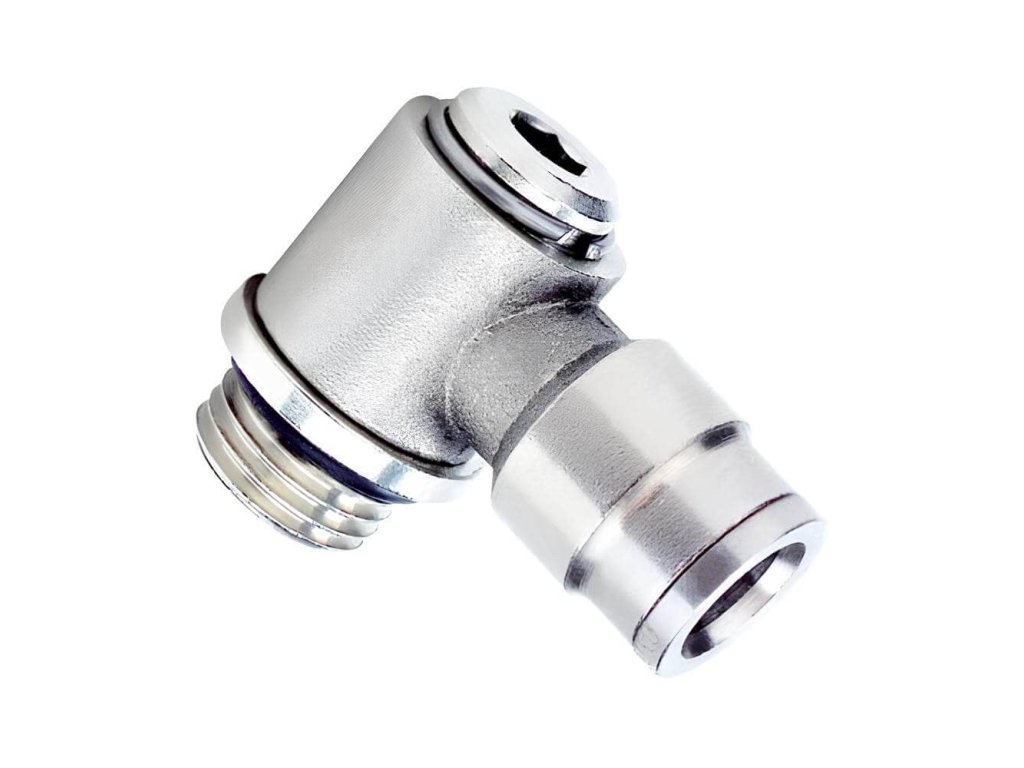

    L-threaded rotating external 4 - G1/8"

    Code: MPHG-184
    Not rated
    101 Kč –4 %
    L-threaded rotating external 4 - G1/8"
    101 Kč –4 % 96 Kč / pcs 79 Kč excl. VAT
    Stock (74 pcs)
    Delivery to:
    22.10.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

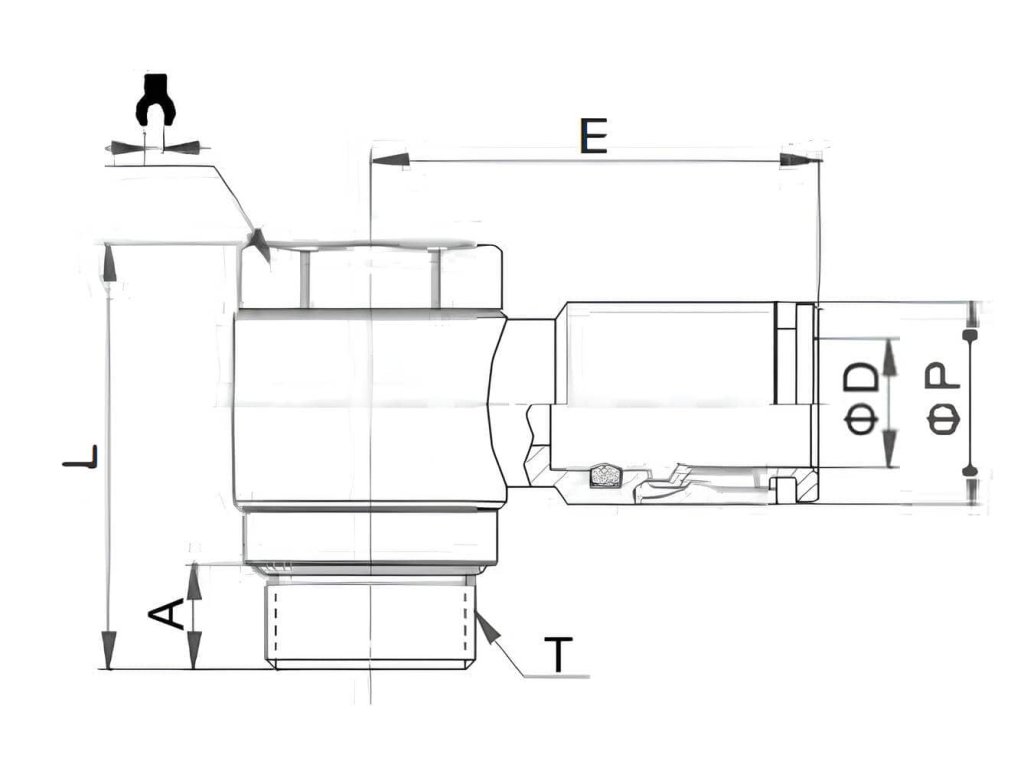

    L-Shaped swivel fitting with pipe thread 4 - G 1/8" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: L-fitting swivel external G
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G
    SW (key): 4
    Width: 26 mm
    Seals: NBR
    Thread: G 1/8"
    Connection system: Plug-in system
