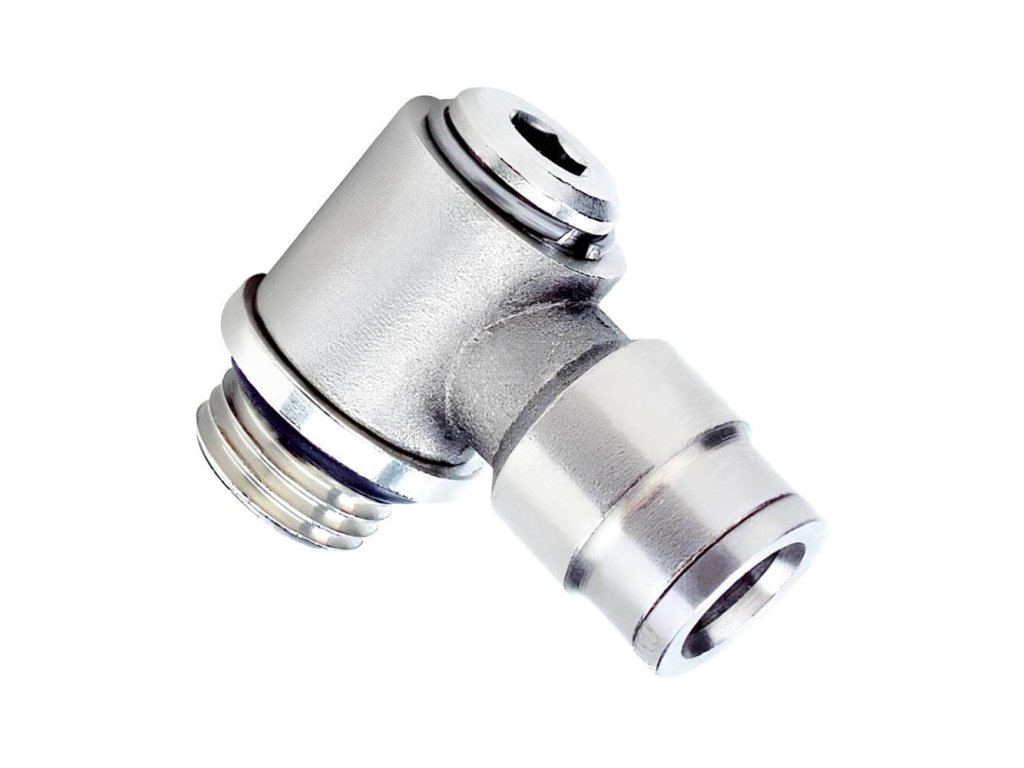

    L-threaded swivel external 12 - G3/8"

    Code: MPHG-3812
    Not rated
    203 Kč –4 %
    L-threaded swivel external 12 - G3/8"
    203 Kč –4 % 193 Kč / pcs 160 Kč excl. VAT
    Stock (50 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

    L-Shaped swivel fitting with pipe thread 12 - G 3/8" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: L-fitting swivel external G
    Pressure: 10 bars
    A tube: 12 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G
    SW (key): 6
    Width: 28 mm
    Seals: NBR
    Thread: G 3/8"
    Connection system: Plug-in system
