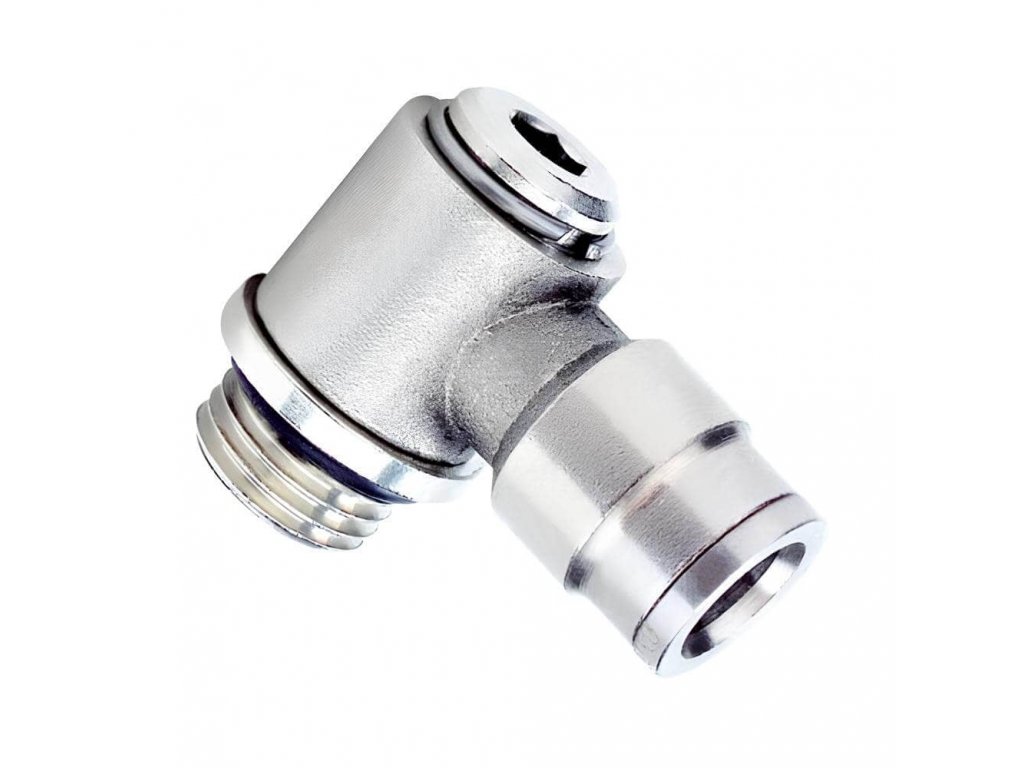

    L-threaded rotating external 10 - G1/4"

    Code: MPHG-1410
    Not rated
    190 Kč –4 %
    L-threaded rotating external 10 - G1/4"
    190 Kč –4 % 181 Kč / pcs 150 Kč excl. VAT
    Stock (100 pcs)
    Delivery to:
    20.11.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

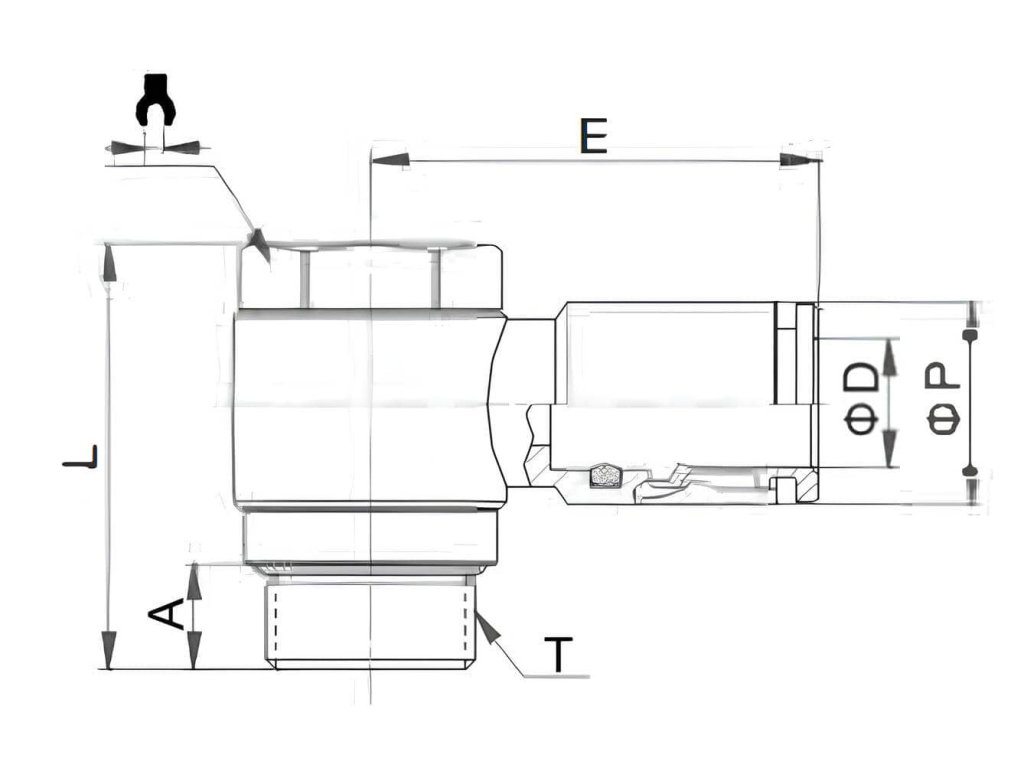

    L-Shaped swivel fitting with pipe thread 10 - G 1/4" - metal socket design

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: L-fitting swivel external G
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Tubular G
    SW (key): 5
    Width: 27 mm
    Seals: NBR
    Thread: G 1/4"
    Connection system: Plug-in system
