L-bolt 3 - M5
Code: PLC-M53Related products
Product detailed description

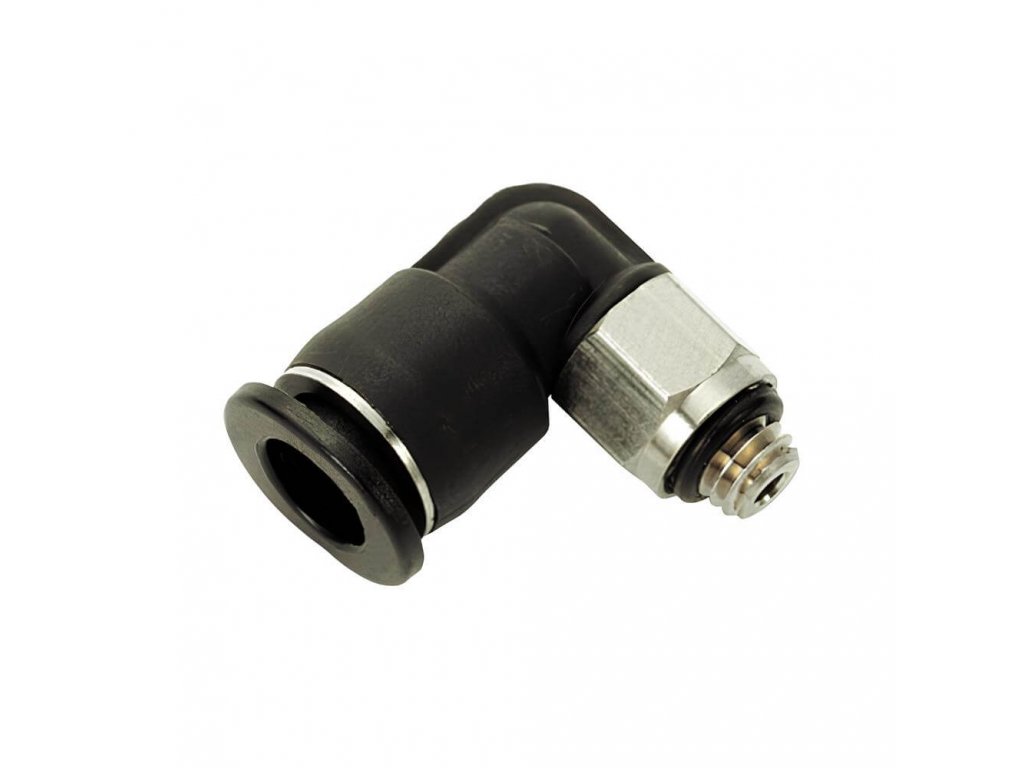

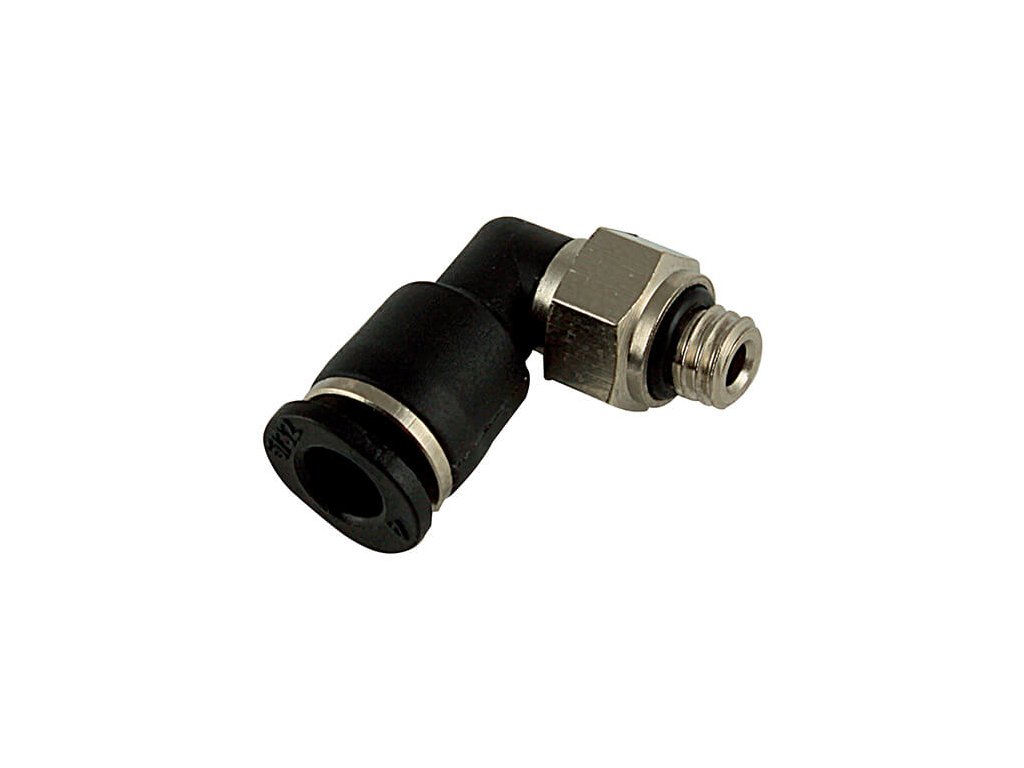

Corner fitting with external thread 3 - M5
- Designed for quick and easy installation of plastic tubing
- Materials used: nylon, polyurethane and nickel-plated brass MS 58
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry with requirements for small dimensions of connecting parts
Additional parameters
| Category: | Miniature corner push-in fitting |
|---|---|
| Version: | L-coupling |
| Pressure: | 10 bars |
| Length 1: | 19 mm |
| Length 2: | 18 mm |
| Tube 1: | 3 mm |
| Key (SW): | 8 |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Temperature: | -10 / 60 °C |
| Seals: | PTFE |
| Type of fitting: | Plug connectors |
| Thread type 1: | Metric - M |
| Thread size 1: | M5 |
| Thread: | M5 |
| Connection system: | Plug-in system |
