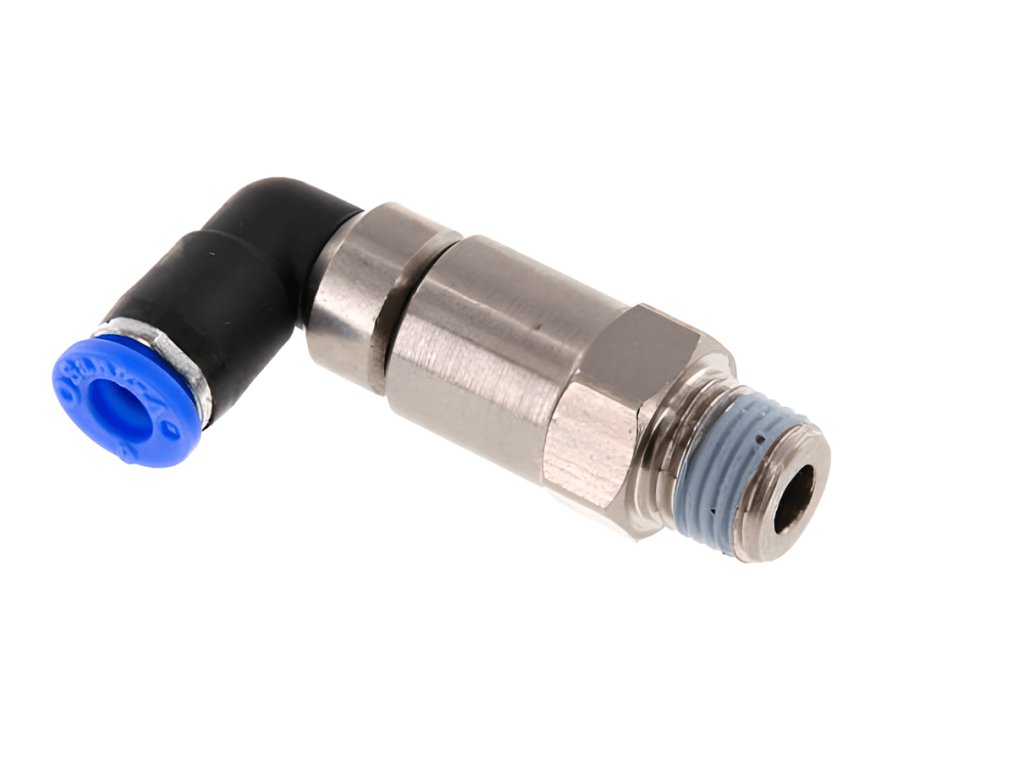

    L-coupling high rotation 8 - R1/4"

    Code: NHRL-148
    Not rated
    2 926 Kč –4 %
    L-coupling high rotation 8 - R1/4"
    2 926 Kč –4 % 2 780 Kč / pcs 2 298 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025
    The 8 mm Angle Nipple Rotary Coupling with R1/4" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1200 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    High speed rotary plastic corner socket with external tapered thread - NHRL-148

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner male thread R
    Pressure: 10 bars
    Functions: Rotary clutch up to 1 200 rpm
    A tube: 8 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 1/4"
    Connection system: Plug-in system
