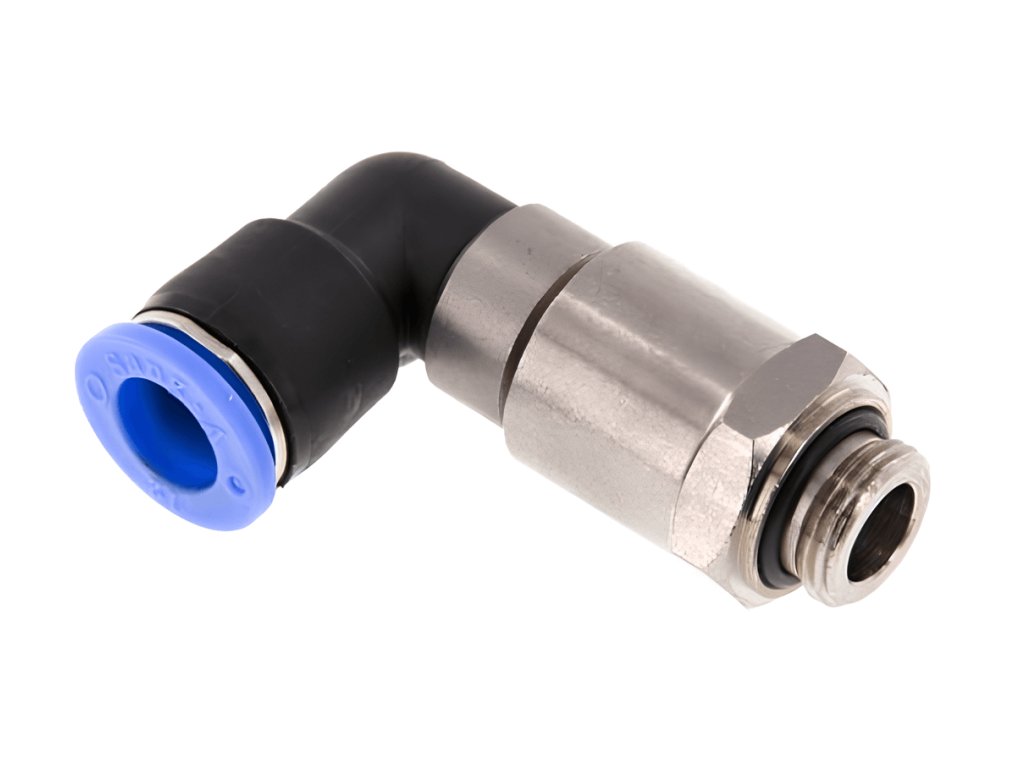

    L-coupling high rotation 6 - G1/4"

    Code: NHRLG-146
    Not rated
    3 037 Kč –4 %
    L-coupling high rotation 6 - G1/4"
    3 037 Kč –4 % 2 886 Kč / pcs 2 385 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    The 6 mm rotary socket corner coupling with G1/4" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1200 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    High speed rotary plastic corner socket with external pipe thread - NHRLG-146

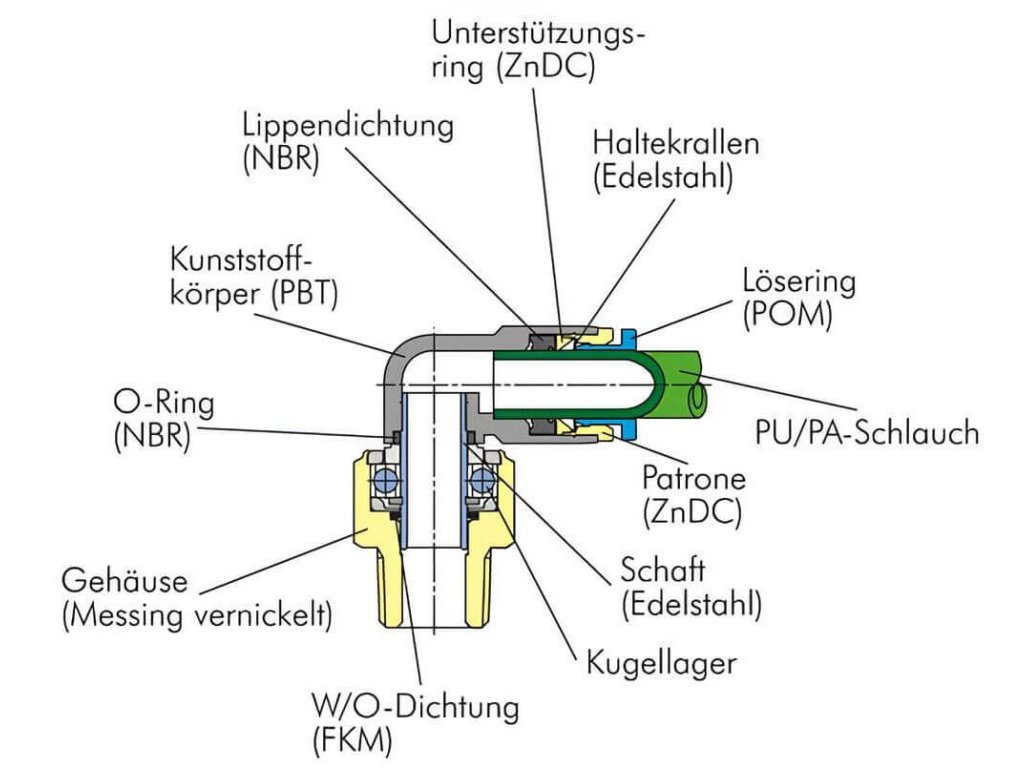

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 1 200 rpm
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer tube G
    Seals: NBR
    Thread: G 1/4"
    Connection system: Plug-in system
