    Home / Fasteners / Plastic rotary couplings; socket couplings up to 1500 rpm / L-couplings rotary; external pipe thread G / L-coupling high rotation 12 - G1/2"

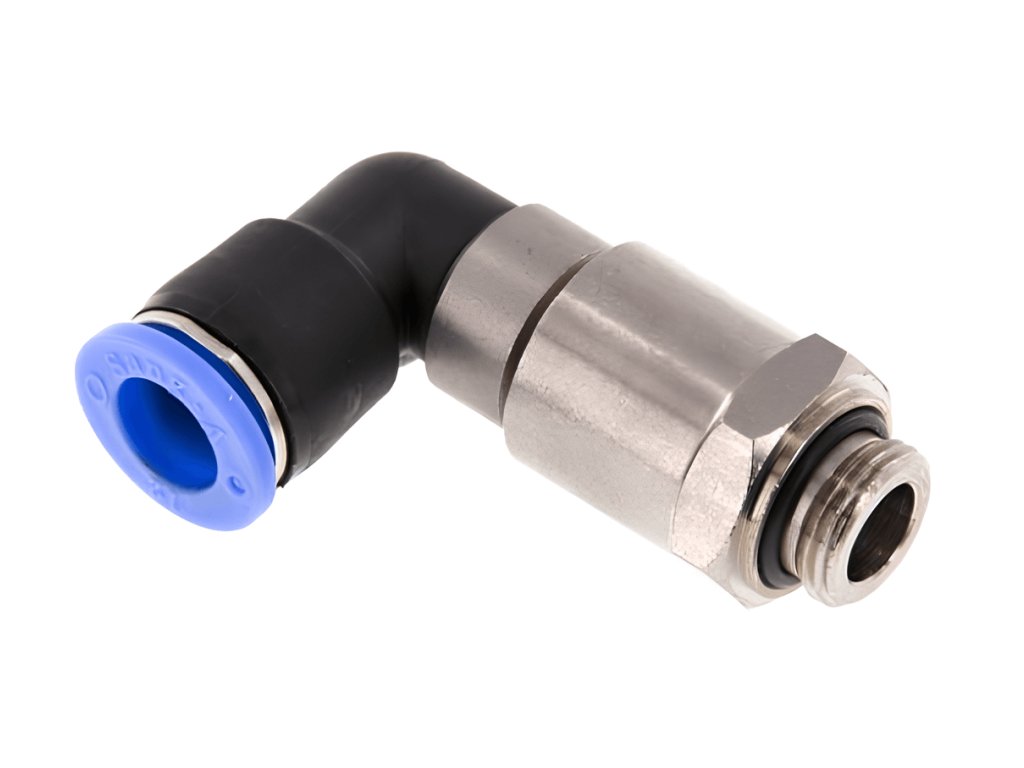

    L-coupling high rotation 12 - G1/2"

    Code: NHRLG-1212
    Not rated
    4 264 Kč –5 %
    L-coupling high rotation 12 - G1/2"
    4 264 Kč –5 % 4 051 Kč / pcs 3 348 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    The 12 mm rotary socket corner coupling with G1/2" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1000 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    High speed rotary plastic corner socket with external pipe thread - NHRLG-1212

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 1 000 rpm
    A tube: 12 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer tube G
    Seals: NBR
    Thread: G 1/2"
    Connection system: Plug-in system
