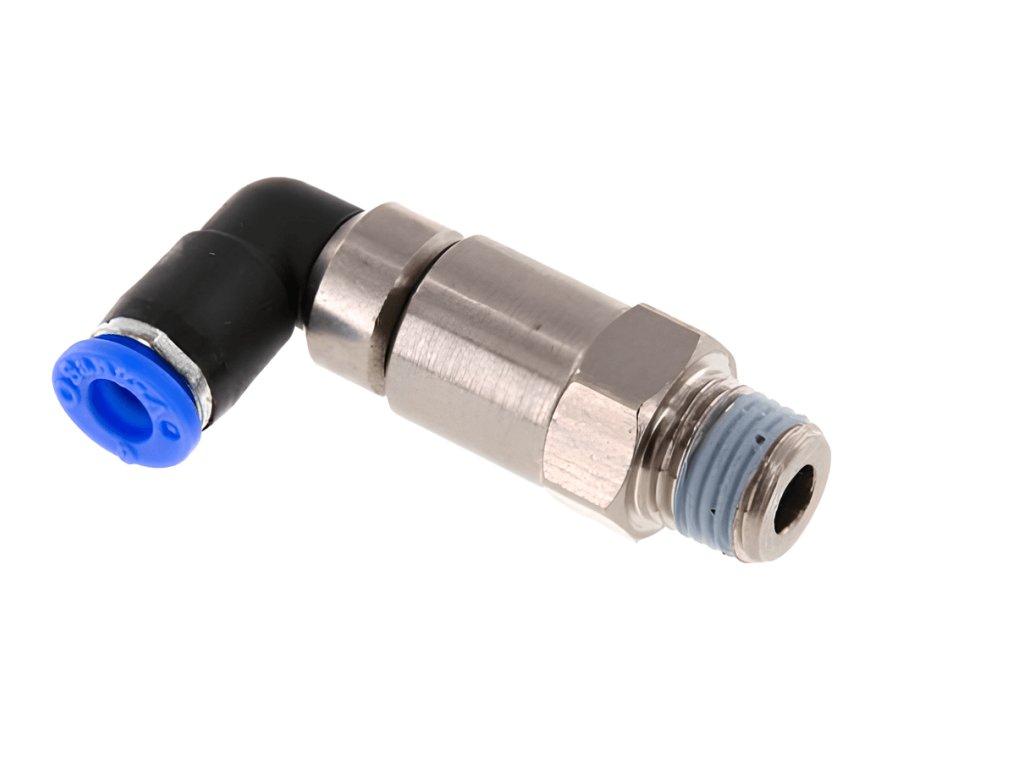

L-coupling high rotation 10 - R1/2"

Code: NHRL-1210

Not rated

Brand: Pneumatics & Hydraulics

3 648 Kč –4 %

3 648 Kč –4 % 3 466 Kč / pcs 2 864 Kč excl. VAT

Delivery to: 13.01.2025

The 10 mm angular contact rotary coupling with R1/2" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1000 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

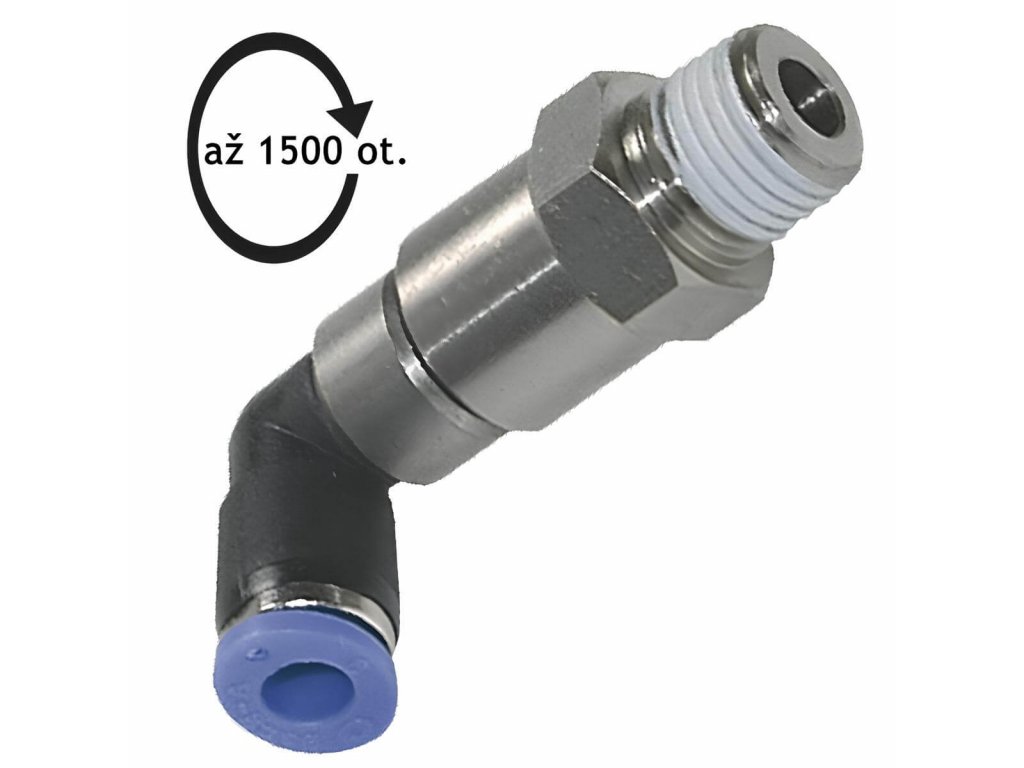

High speed rotary plastic corner socket with external tapered thread - NHRL-1210

Special ball bearing couplings designed for applications where
Increased demands on coupling rotation
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Socket rotary couplings corner male thread R
Pressure:	10 bars
Functions:	Rotary clutch up to 1 000 rpm
A tube:	10 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	0 / +60 °C
Thread design:	Outer taper R
Seals:	PTFE
Thread:	R 1/2"
Connection system:	Plug-in system
