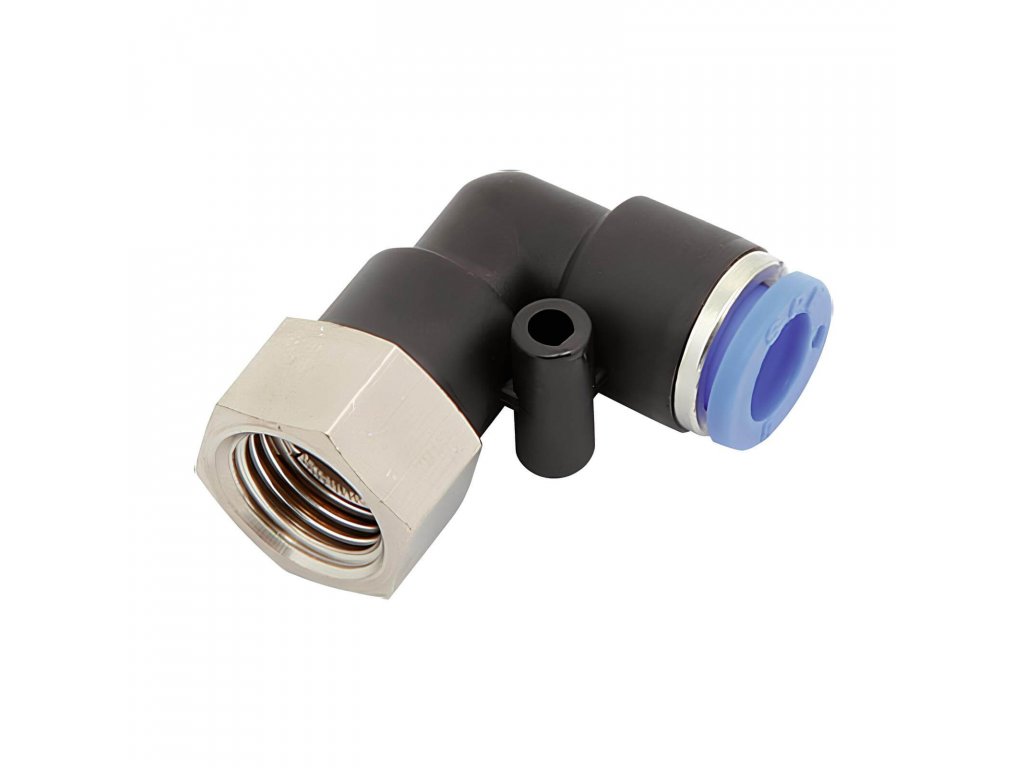

L-coupling internal 6 - G3/8"
Code: PLF-386Related products
Product detailed description
Corner fitting with female pipe thread 6 - G3/8"
in plastic design
- Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
- Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.
Additional parameters
| Category: | L-couplings with female thread G |
|---|---|
| Pressure: | 10 bars |
| A tube: | 6 mm |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Working temperature: | -10 / +60 °C |
| Thread design: | Tubular G |
| SW (key): | 19 |
| Width: | 27 mm |
| Seals: | PTFE |
| Thread: | G 3/8" |
| Shape: | Corner couplings |
| Connection system: | Plug-in system |
