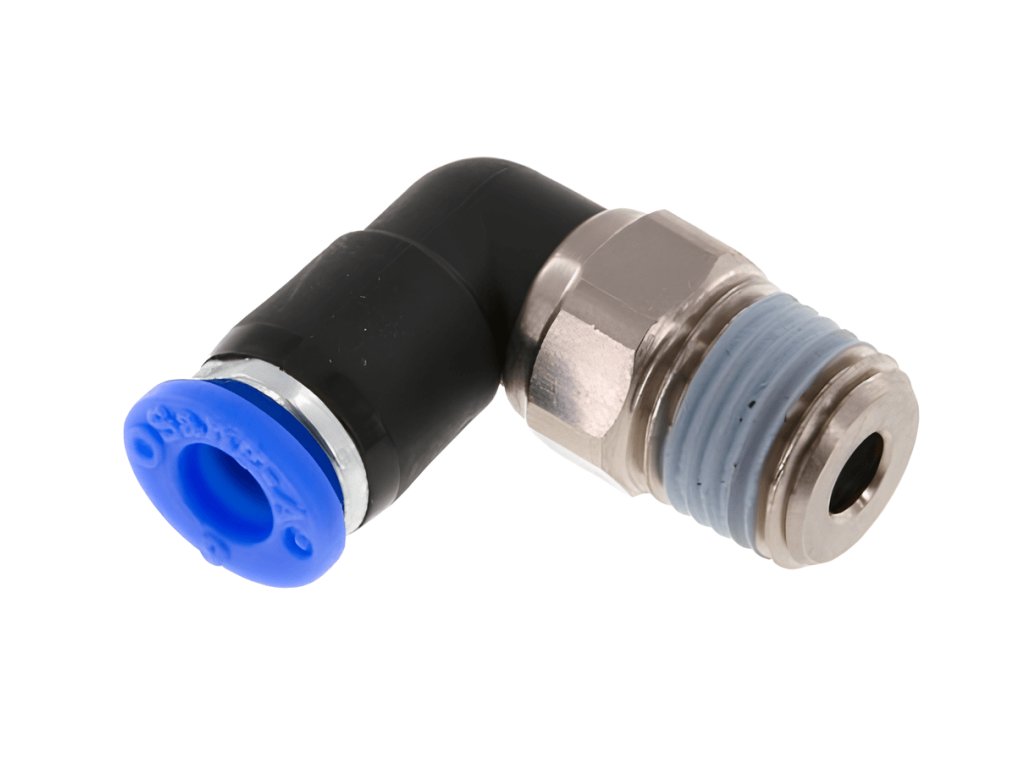

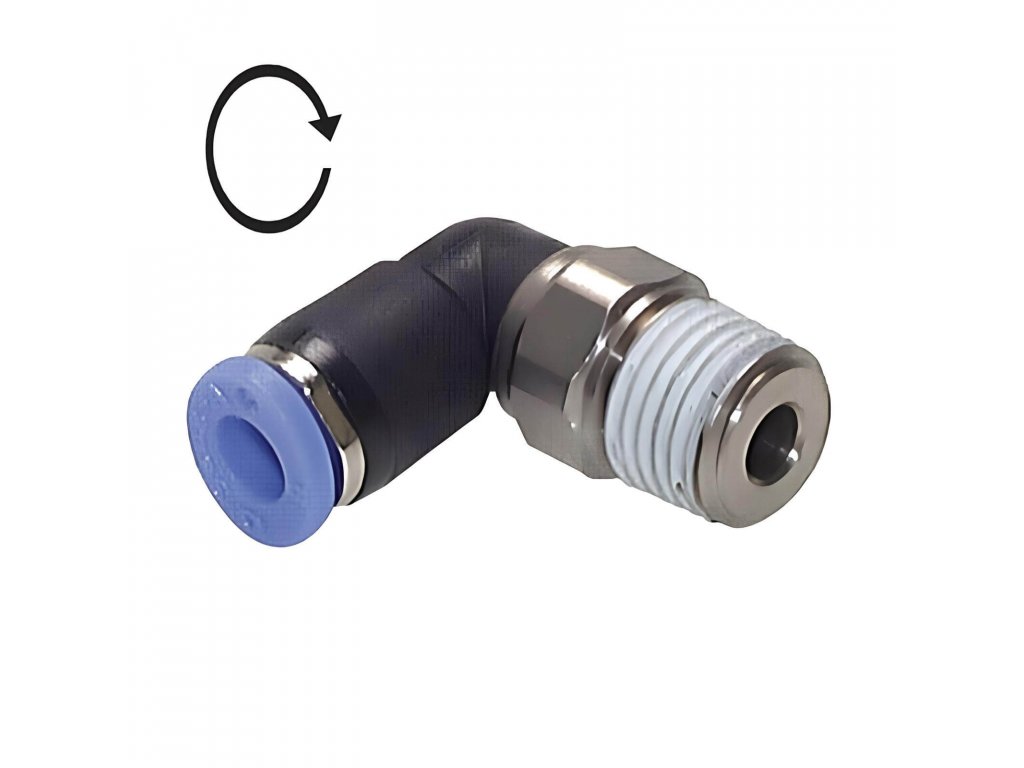

L-coupling rotary 8 - R1/8"

Code: NRL-188

Not rated

Brand: Pneumatics & Hydraulics

855 Kč –5 %

855 Kč –5 % 812 Kč / pcs 671 Kč excl. VAT

(6 pcs)

Delivery to: 22.10.2024

The 8 mm Angle Nipple Rotary Coupling with G1/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 400 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Product detailed description

Corner socket rotary coupling with external tapered thread - NRL-188

Special ball bearing couplings designed for applications where
Increased demands on coupling rotation
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Socket rotary couplings corner male thread R
Pressure:	10 bars
Functions:	Rotary clutch up to 400 rpm
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	0 / +60 °C
Thread design:	Outer taper R
Seals:	PTFE
Thread:	R 1/8"
Connection system:	Plug-in system
