    Home / Fasteners / Plastic rotary couplings; socket couplings up to 1500 rpm / L-couplings rotary; external pipe thread G / L-coupling rotary 6 - G1/4"

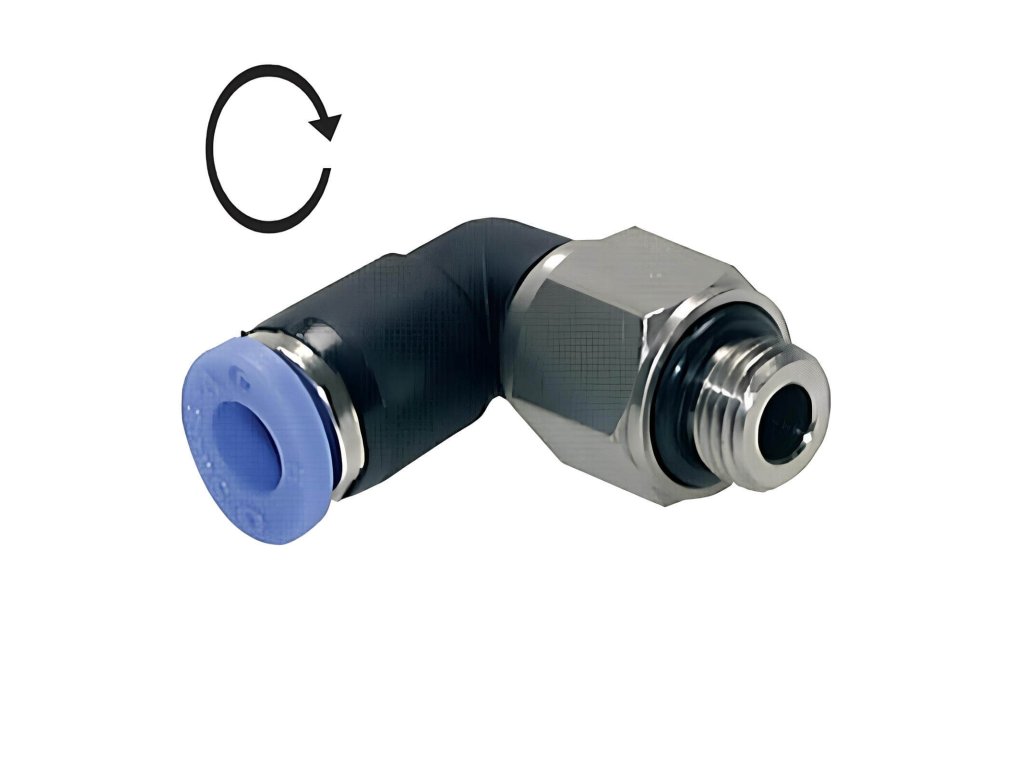

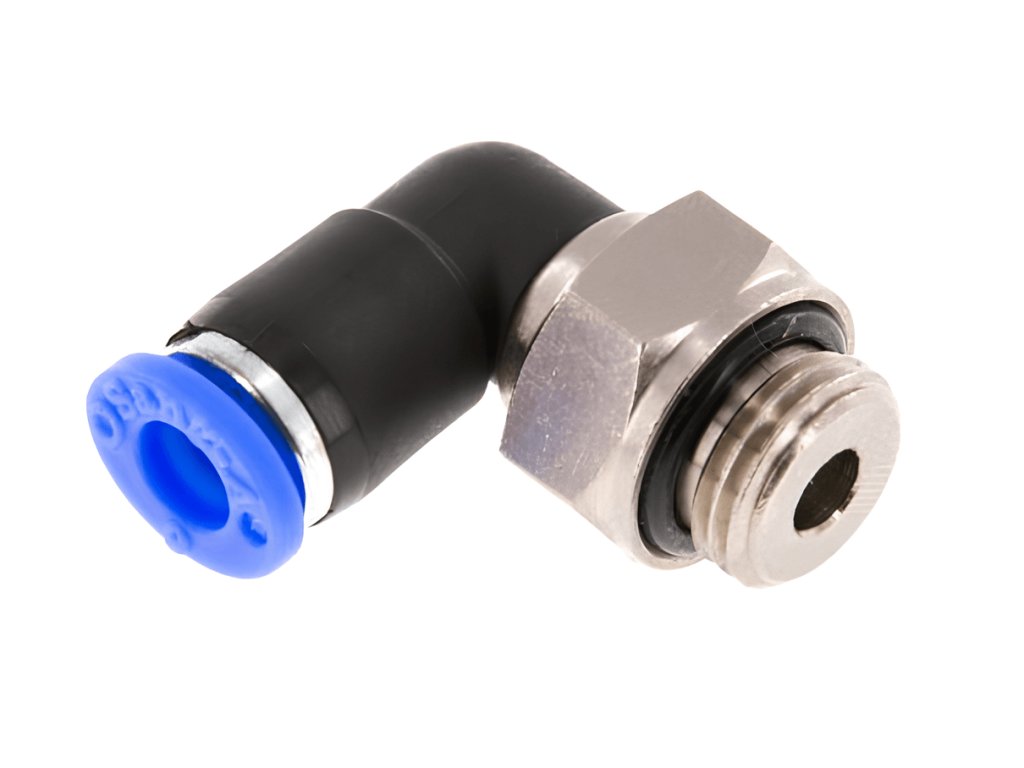

    L-coupling rotary 6 - G1/4"

    Code: NRLG-146
    Not rated
    727 Kč –4 %
    L-coupling rotary 6 - G1/4"
    727 Kč –4 % 691 Kč / pcs 571 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    The 6 mm rotary socket corner coupling with G1/4" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 500 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Corner socket rotary coupling with external pipe thread - NRLG-146

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 500 rpm
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer tube G
    Seals: NBR
    Thread: G 1/4"
    Connection system: Plug-in system
