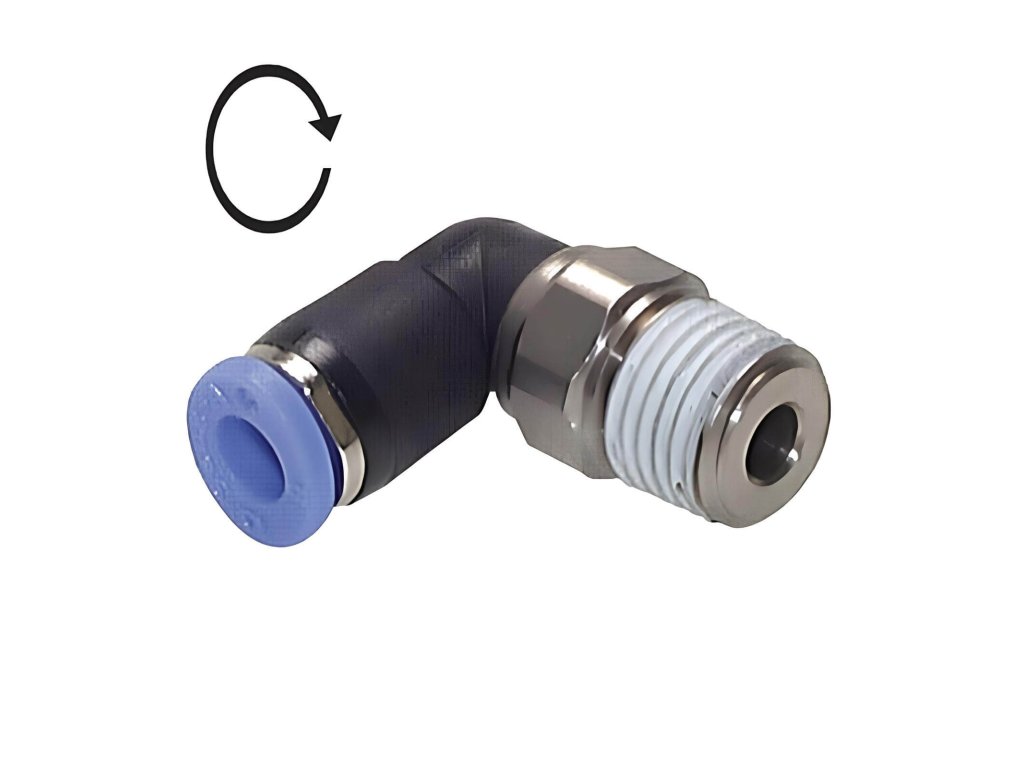

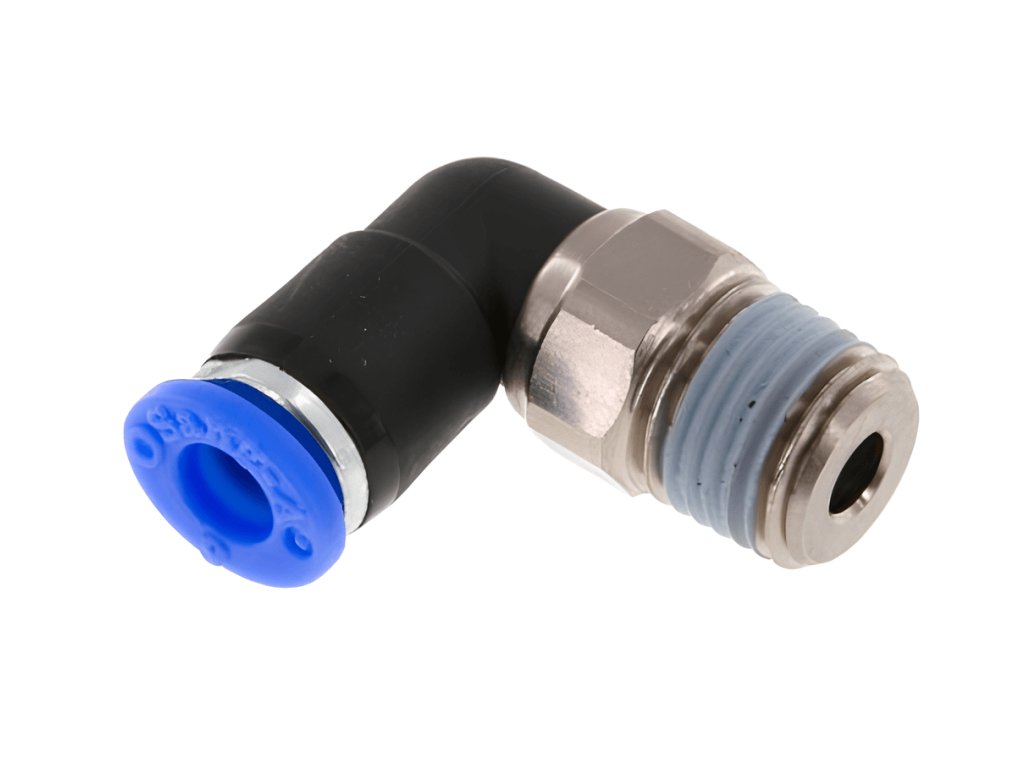

    L-coupling rotary 10 - R3/8"

    Code: NRL-3810
    Not rated
    966 Kč –9 %
    L-coupling rotary 10 - R3/8"
    966 Kč –9 % 870 Kč / pcs 719 Kč excl. VAT
    up to 14 days
    Delivery to:
    12.05.2025
    Delivery offer
    The 10 mm Angle Nipple Rotary Coupling with G3/8" male taper thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 300 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Corner socket rotary coupling with external tapered thread - NRL-3810

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner male thread R
    Pressure: 10 bars
    Functions: Rotary clutch up to 300 rpm
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 3/8"
    Connection system: Plug-in system
