    L-coupling rotary 10 - G3/8"

    Code: NRLG-3810
    Not rated
    1 576 Kč –5 %
    L-coupling rotary 10 - G3/8"
    1 576 Kč –5 % 1 497 Kč / pcs 1 237 Kč excl. VAT
    up to 14 days
    Delivery to:
    18.10.2024

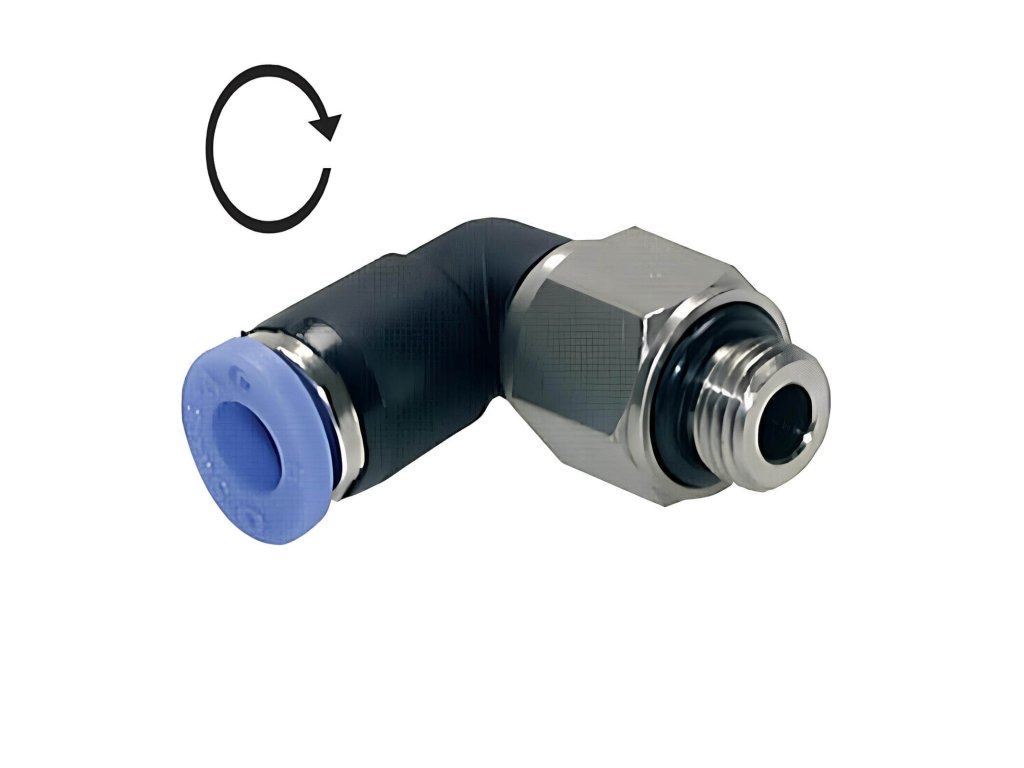

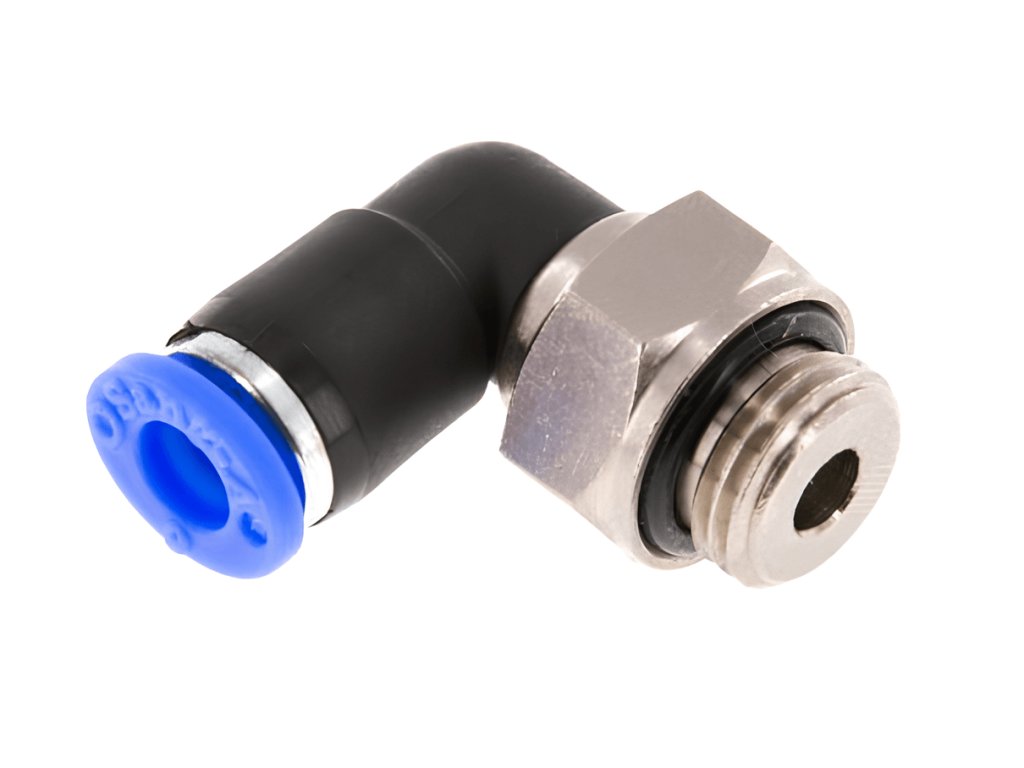

    The 10 mm Angle Nipple Rotary Coupling with G3/8" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 300 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Corner socket rotary coupling with external pipe thread - NRLG-3810

    • Special ball bearing couplings designed for applications where
    • Increased demands on coupling rotation
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Socket rotary couplings corner external thread G
    Pressure: 10 bars
    Functions: Rotary clutch up to 300 rpm
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer tube G
    Seals: NBR
    Thread: G 3/8"
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-34TE
