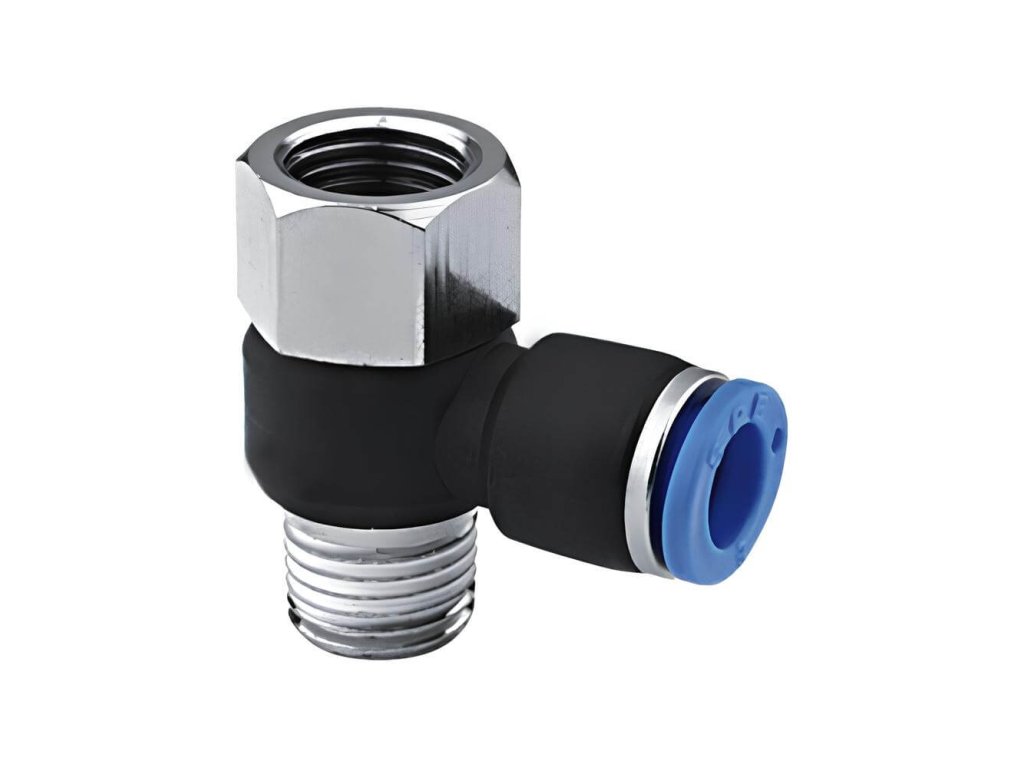

    L-coupling through - 4 - R1/8"

    Code: PHF-184
    Tip
    Not rated
    158 Kč –9 %
    L-coupling through - 4 - R1/8"
    158 Kč –9 % 143 Kč / pcs 118 Kč excl. VAT
    Stock (62 pcs)
    Delivery to:
    25.12.2024
    Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

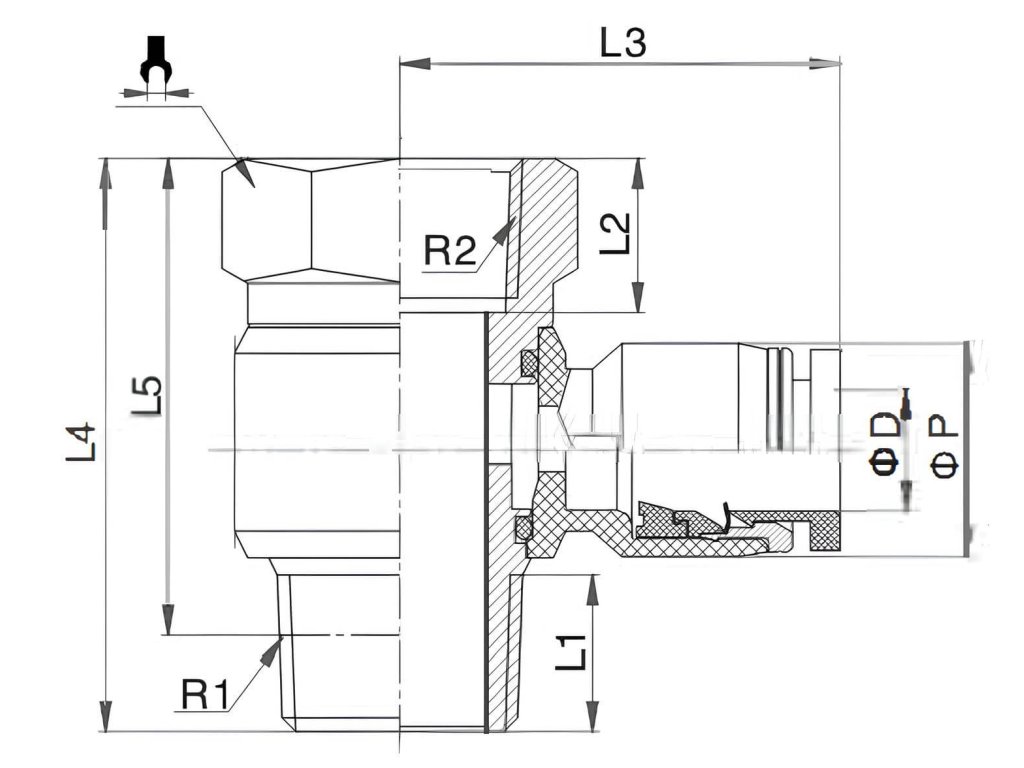

    Through-hole corner fitting with male and female tapered thread 4 - R 1/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: L-couplings socket through thread R
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 12
    Width: 29 mm
    Seals: PTFE
    Thread: R 1/8"
    Connection system: Plug-in system
