    L-coupling through - 10 - R1/4"

    Code: PHF-1410
    Tip
    Not rated
    395 Kč –9 %
    L-coupling through - 10 - R1/4"
    395 Kč –9 % 356 Kč / pcs 294 Kč excl. VAT
    Stock (70 pcs)
    Delivery to:
    02.01.2025
    Delivery offer
    Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

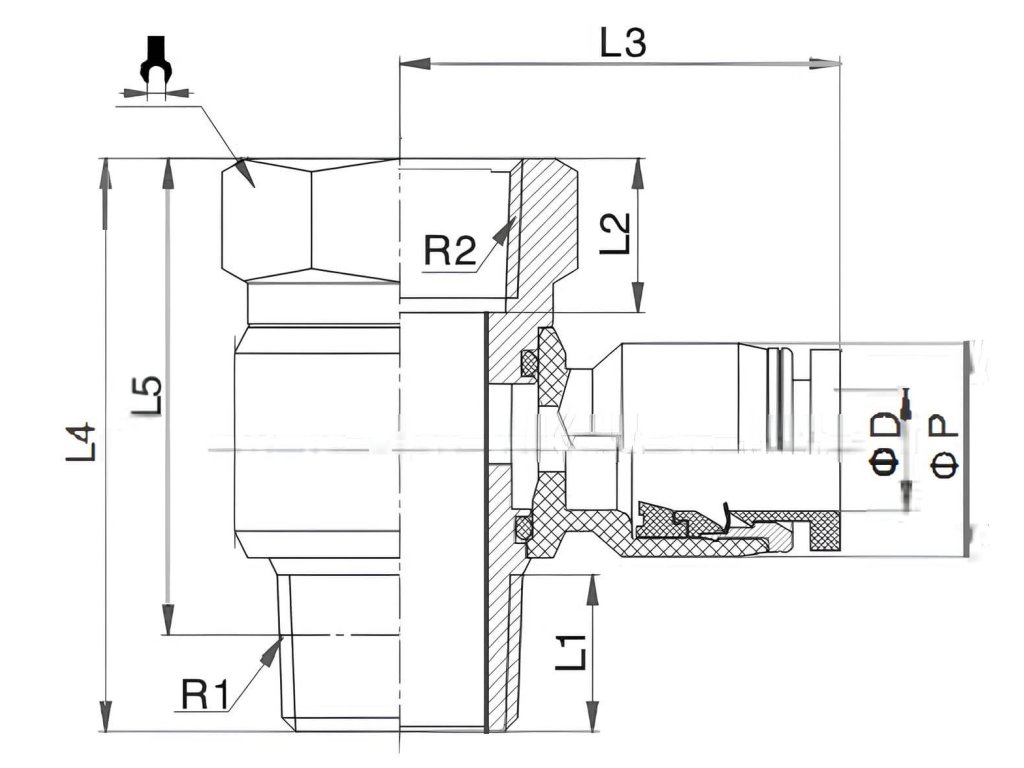

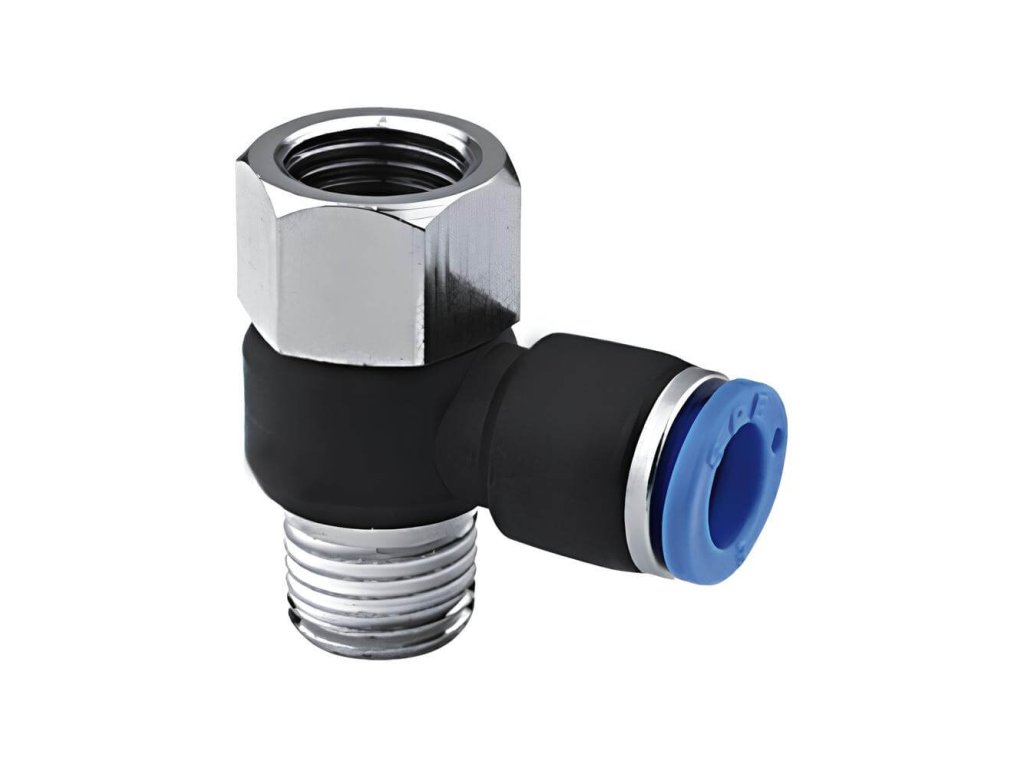

    Through-hole corner fitting with male and female tapered thread 10 - R 1/4"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: L-couplings socket through thread R
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 17
    Width: 31 mm
    Seals: PTFE
    Thread: R 1/4"
    Connection system: Plug-in system
    Sealing ring made of elastomer and brass DR-18EL
