L-coupling swivel 8 - R3/8"
Code: PH-388Related products
Product detailed description

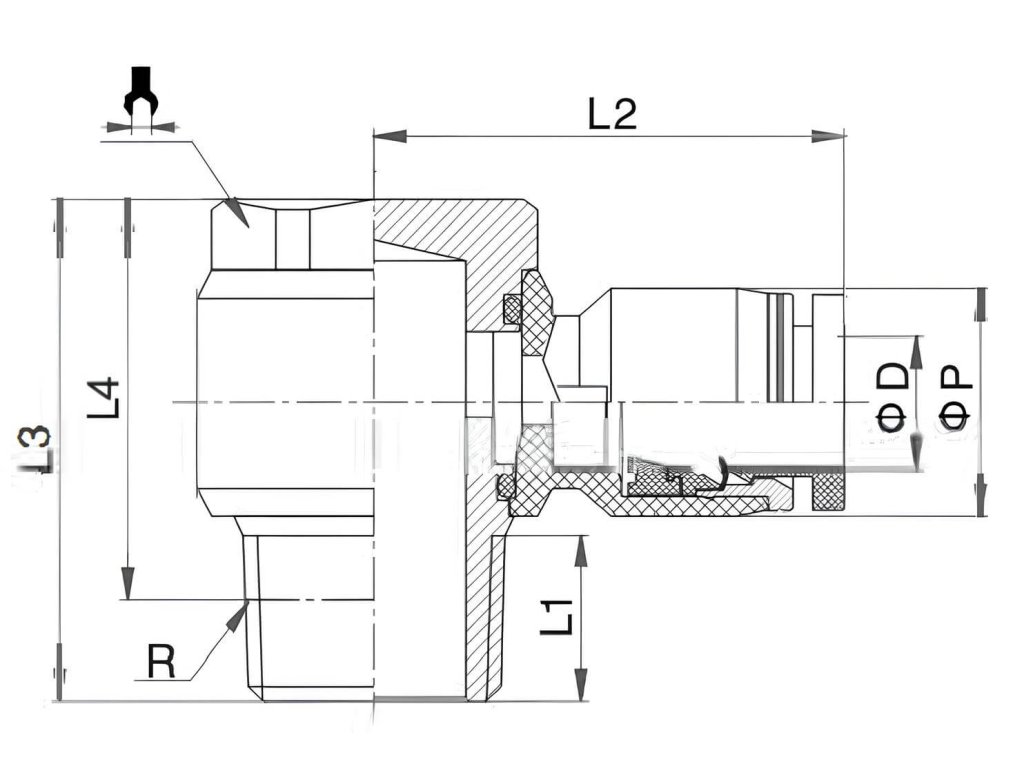

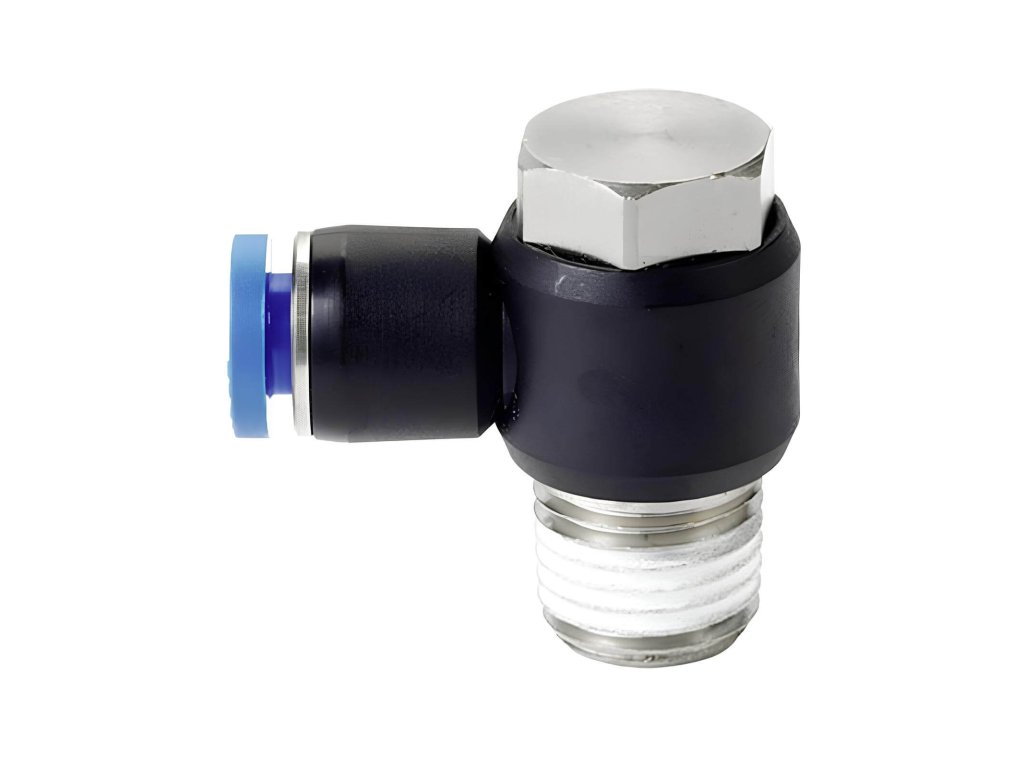

Corner swivel fitting with external tapered thread 8 - R3/8"
in plastic design
- Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
- Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.
Additional parameters
| Category: | L-couplings socket swivel external tapered thread R |
|---|---|
| Pressure: | 10 bars |
| A tube: | 8 mm |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Working temperature: | -10 / +60 °C |
| Thread design: | Kuželový R |
| SW (key): | 17 |
| Width: | 52 mm |
| Seals: | PTFE |
| Thread: | R 3/8" |
| Shape: | Corner couplings |
| Connection system: | Plug-in system |
