14 mm push-in L-coupling

Code: MPUL-14

Not rated

Brand: Pneumatics & Hydraulics

384 Kč –4 %

384 Kč –4 % 365 Kč / pcs 302 Kč excl. VAT

(80 pcs)

Delivery to: 25.12.2024

Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Detailed information

Product detailed description

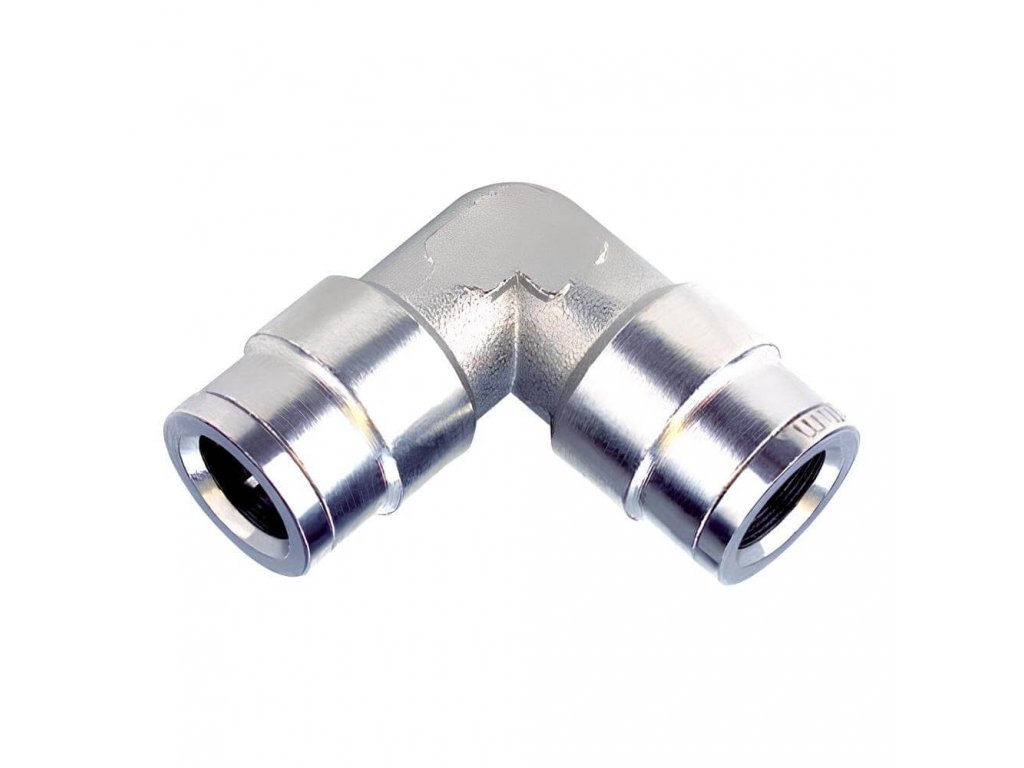

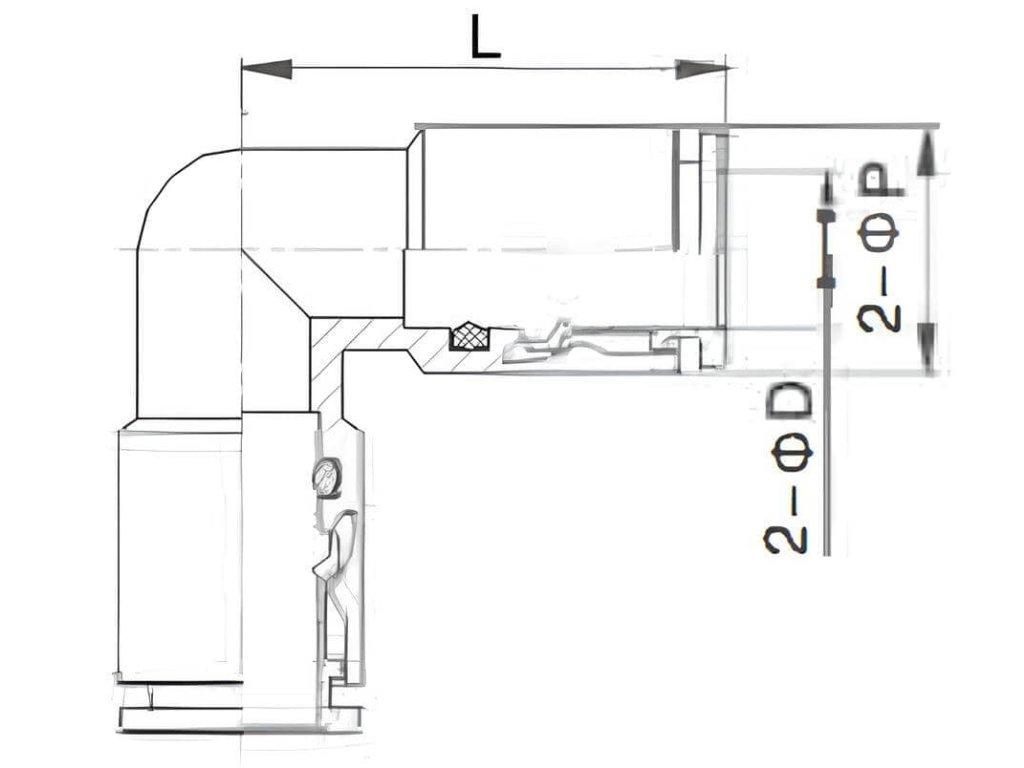

Corner socket coupling 14 mm - metal socket version

Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Additional parameters

Category:	Push-in brass L-couplings
Pressure:	10 bars
A tube:	14 mm
Material:	Brass
Medium:	Compressed air
Working temperature:	-10 / +80 °C
Average:	21 mm
Connection system:	Plug-in system
