L-coupling 8 - R3/8"

Code: PL-388

Tip

Not rated

Brand: Pneumatics & Hydraulics

117 Kč –10 %

117 Kč –10 % 105 Kč / pcs 87 Kč excl. VAT

(>1000 pcs)

Delivery to: 20.11.2024

Socket coupling in plastic corner design with 3/8" male tapered thread. Quick and easy installation of plastic tubing with 8 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

55 Kč –10 %

Polyurethane tube black 8 / 5.5 mm

(991 m)

40 Kč excl. VAT

49 Kč

PUJ polyurethane tubing in black 8/6 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ855S

Tip

55 Kč –10 %

Polyurethane tube red 8/5.5 mm

(>1000 m)

40 Kč excl. VAT

49 Kč

Polyurethane PUJ tubing in red 8/5.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ855R

Tip

55 Kč –10 %

Clear polyurethane tubing 8/5.5 mm

(471 m)

40 Kč excl. VAT

49 Kč

Polyurethane PUJ tubing in neutral transparent 8/5.5 mm design, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

Code: PUJ855N

Tip

55 Kč –10 %

Polyurethane tube blue 8/5.5 mm

(>1000 m)

40 Kč excl. VAT

49 Kč

Polyurethane PUJ tubing in blue 8/5.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ855B

Tip

55 Kč –10 %

Polyurethane hose green 8/5.5 mm

(974 m)

40 Kč excl. VAT

49 Kč

PUJ polyurethane tubing in green 8/5.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ855G

Tip

55 Kč –10 %

Yellow polyurethane tube 8/5.5 mm

(119 m)

40 Kč excl. VAT

49 Kč

Polyurethane PUJ tubing in yellow 8/5.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ855Y

Show all related products

Product detailed description

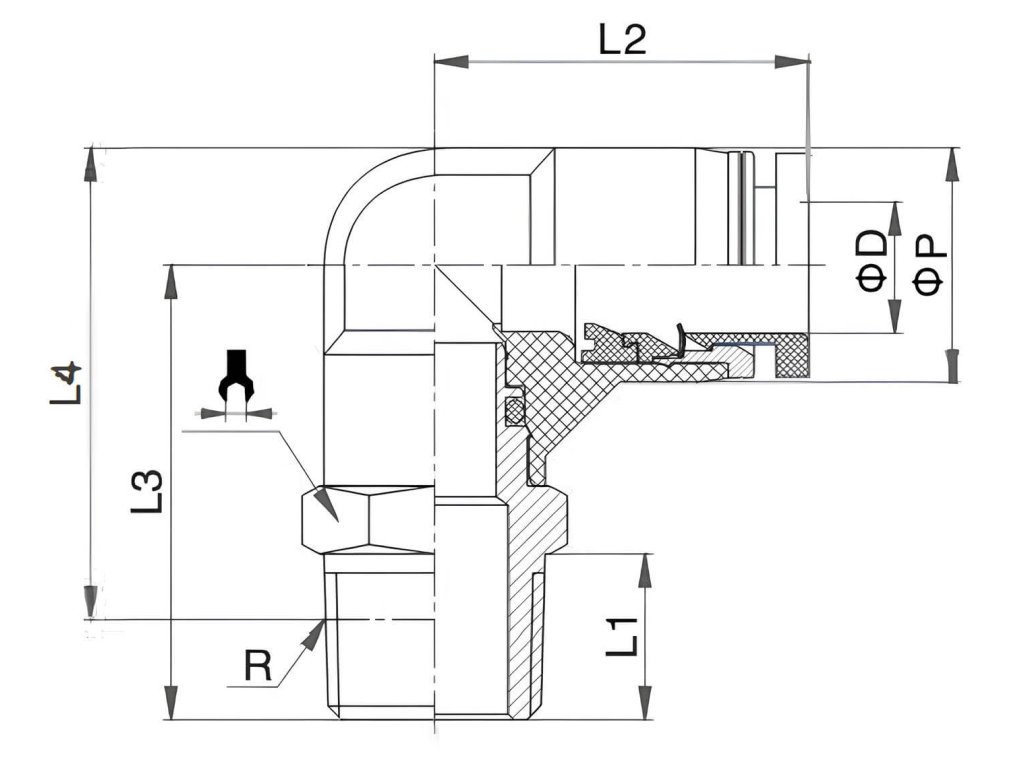

Corner fitting with 8 - R3/8" male tapered thread
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	17
Width:	41 mm
Seals:	PTFE
Thread:	R 3/8"
Shape:	Corner couplings
Connection system:	Plug-in system
