L-coupling 6 - R1/2"

Code: PL-126

Tip

Not rated

Brand: Pneumatics & Hydraulics

81 Kč –9 %

81 Kč –9 % 73 Kč / pcs 60 Kč excl. VAT

(431 pcs)

Delivery to: 25.12.2024

Socket coupling in plastic corner design with 1/2" male tapered thread. Quick and easy installation of plastic tubing with 6 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

33 Kč –12 %

Black polyurethane hose 6/4 mm

(>1000 m)

24 Kč excl. VAT

29 Kč

PUJ polyurethane tubing in black 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ64S

Tip

33 Kč –12 %

Polyurethane tube red 6/4 mm

(970 m)

24 Kč excl. VAT

29 Kč

PUJ polyurethane tubing in red 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ64R

Tip

33 Kč –12 %

Clear polyurethane tubing 6 / 4 mm

(>1000 m)

24 Kč excl. VAT

29 Kč

Polyurethane PUJ tubing in neutral transparent 6/4 mm design, particularly suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

Code: PUJ64N

Tip

33 Kč –12 %

Polyurethane tube blue 6/4 mm

(>1000 m)

24 Kč excl. VAT

29 Kč

Polyurethane PUJ tubing in blue 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ64B

Tip

33 Kč –12 %

Polyurethane tube green 6/4 mm

(>1000 m)

24 Kč excl. VAT

29 Kč

PUJ polyurethane tubing in green 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ64G

Tip

33 Kč –12 %

Yellow polyurethane tube 6/4 mm

(672 m)

24 Kč excl. VAT

29 Kč

Polyurethane PUJ tubing in yellow 6/4 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ64Y

Show all related products

Product detailed description

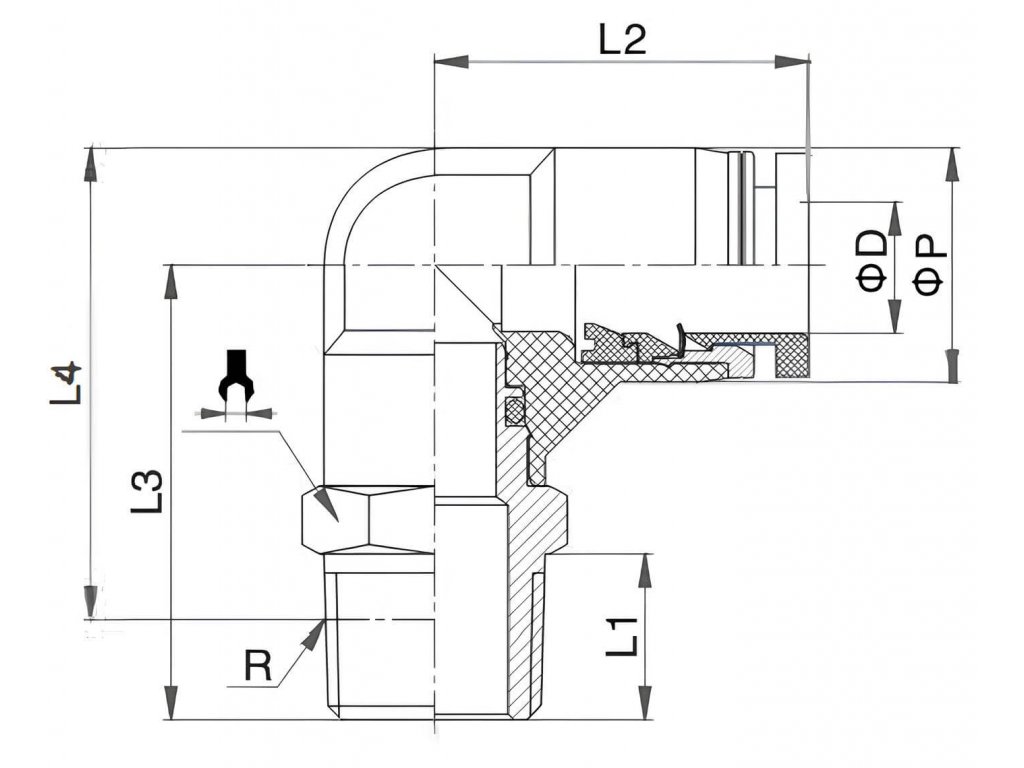

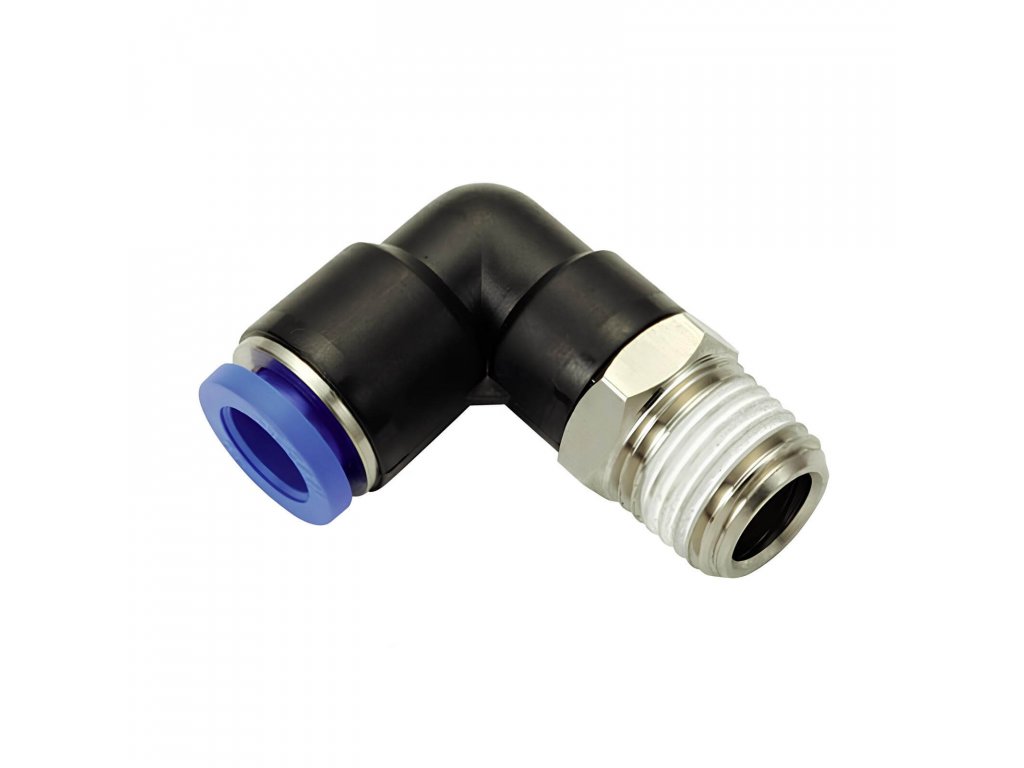

Corner fitting with external tapered thread 6 - R1/2"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	6 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	17
Width:	38 mm
Seals:	PTFE
Thread:	R 1/2"
Shape:	Corner couplings
