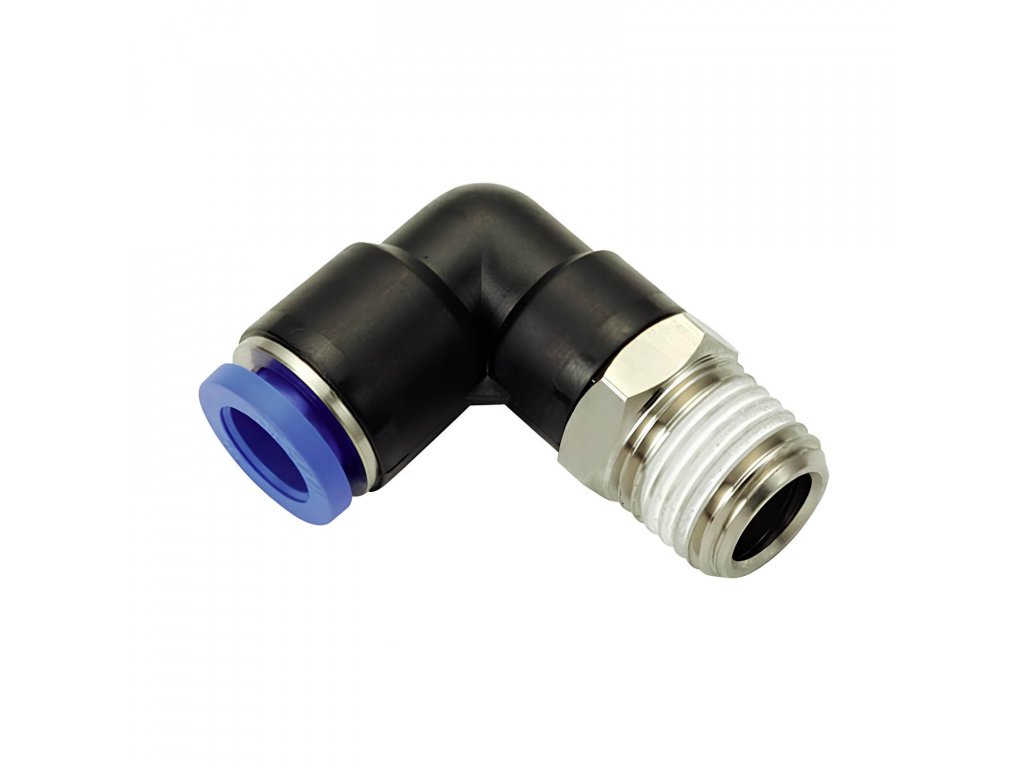

L-coupling 4 - R3/8"

Code: PL-384

Tip

Not rated

Brand: Pneumatics & Hydraulics

97 Kč –9 %

97 Kč –9 % 88 Kč / pcs 73 Kč excl. VAT

(693 pcs)

Delivery to: 25.12.2024

Socket coupling in plastic corner design with 3/8" male tapered thread. Quick and easy installation of plastic tubing with 4 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

18 Kč –11 %

Polyurethane tube black 4/2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

PUJ polyurethane tubing in black 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ425S

Tip

18 Kč –11 %

Red polyurethane tube 4/2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

Polyurethane PUJ tubing in red 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ425R

Tip

18 Kč –11 %

Clear polyurethane tubing 4/2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

Polyurethane PUJ tubing in neutral transparent 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration...

Code: PUJ425N

Tip

18 Kč –11 %

Polyurethane tube blue 4 / 2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

Polyurethane PUJ tubing in blue 4/2.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ425B

Tip

18 Kč –11 %

Polyurethane tubing green 4/2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

Polyurethane PUJ tubing in green 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ425G

Tip

18 Kč –11 %

Yellow polyurethane tube 4/2.5 mm

(>1000 m)

13 Kč excl. VAT

16 Kč

Polyurethane PUJ tubing in yellow 4/2.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ425Y

Show all related products

Product detailed description

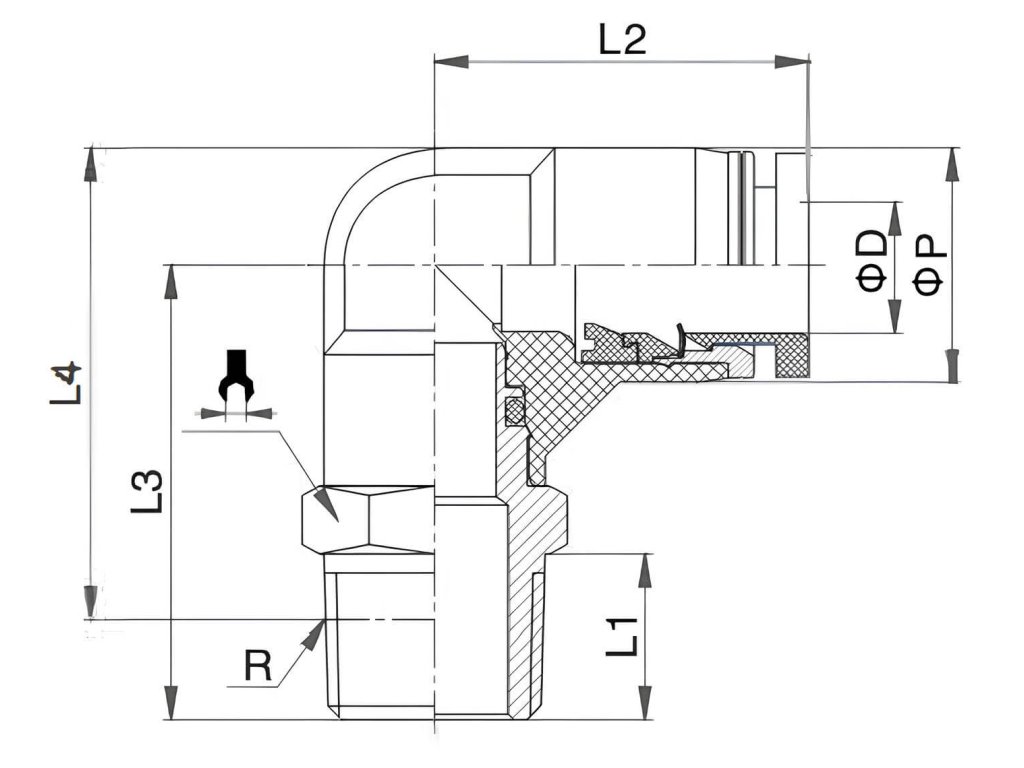

Corner fitting with external tapered thread 4 - R3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	4 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Outer taper R
SW (key):	17
Width:	30 mm
Seals:	PTFE
Thread:	R 3/8"
Shape:	Corner couplings
Connection system:	Plug-in system
