    L-coupling 4 - G1/4"

    Code: PLG-144
    Tip
    Not rated
    99 Kč –10 %
    L-coupling 4 - G1/4"
    99 Kč –10 % 89 Kč / pcs 74 Kč excl. VAT
    Stock (548 pcs)
    Delivery to:
    25.12.2024

    Socket coupling in corner plastic version with 1/4" male pipe thread. Quick and easy installation of plastic tubing with 4 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a pressure of 10 bar.

    Detailed information

    Related products

    Polyurethane tube black 4/2.5 mm
    Tip
    18 Kč –11 %
    Polyurethane tube black 4/2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    PUJ polyurethane tubing in black 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ425S
    Red polyurethane tube 4/2.5 mm
    Tip
    18 Kč –11 %
    Red polyurethane tube 4/2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    Polyurethane PUJ tubing in red 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ425R
    Clear polyurethane tubing 4/2.5 mm
    Tip
    18 Kč –11 %
    Clear polyurethane tubing 4/2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    Polyurethane PUJ tubing in neutral transparent 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration...

    Code: PUJ425N
    Polyurethane tube blue 4 / 2.5 mm
    Tip
    18 Kč –11 %
    Polyurethane tube blue 4 / 2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    Polyurethane PUJ tubing in blue 4/2.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ425B
    Polyurethane tubing green 4/2.5 mm
    Tip
    18 Kč –11 %
    Polyurethane tubing green 4/2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    Polyurethane PUJ tubing in green 4/2.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ425G
    Yellow polyurethane tube 4/2.5 mm
    Tip
    18 Kč –11 %
    Yellow polyurethane tube 4/2.5 mm
    Stock (>1000 m)
    13 Kč excl. VAT
    16 Kč

    Polyurethane PUJ tubing in yellow 4/2.5 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ425Y
    Show all related products Previous product Next product

    Product detailed description

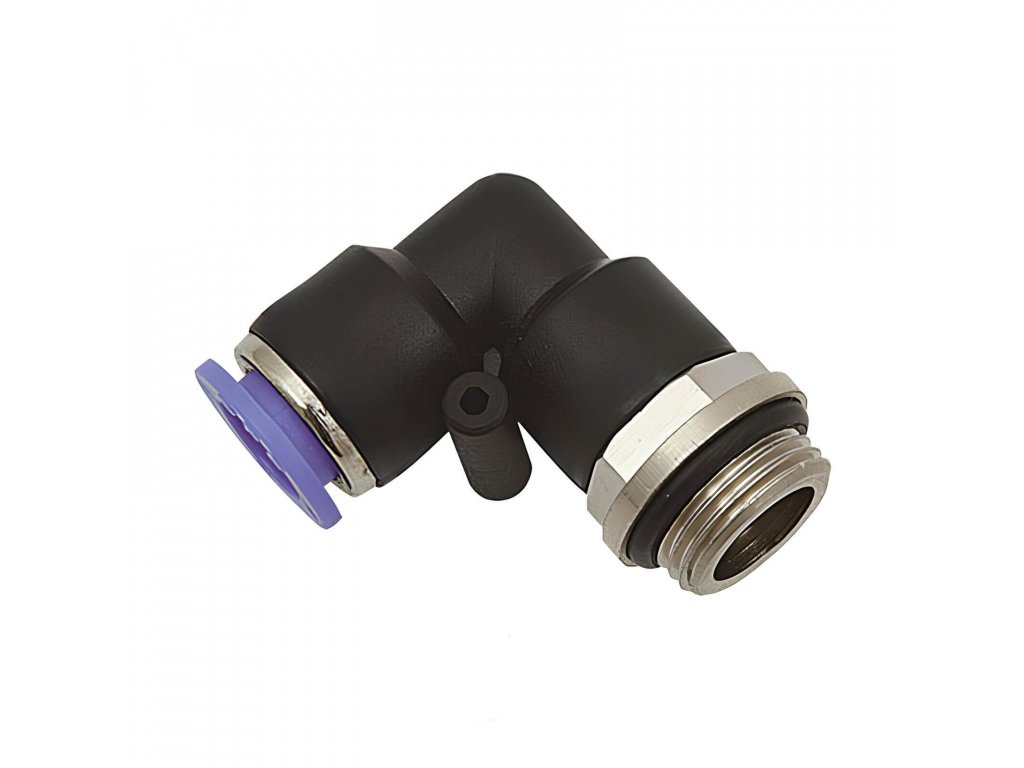

    Corner fitting with external pipe thread 4 - G1/4"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: L-shaped socket couplings with external thread G
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Tubular G
    SW (key): 14
    Width: 31 mm
    Seals: PTFE
    Thread: G 1/4"
    Shape: Corner couplings
    Connection system: Plug-in system
