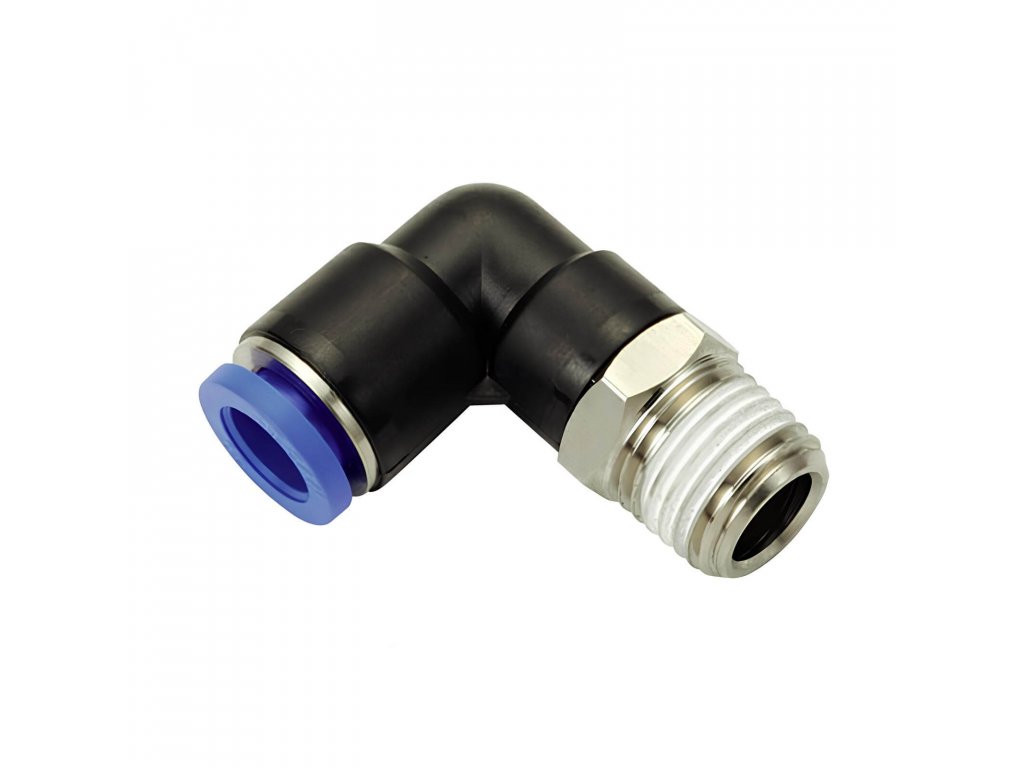

L-coupling 16 - R3/8"

Code: PL-3816

Tip

Not rated

Brand: Pneumatics & Hydraulics

278 Kč –10 %

278 Kč –10 % 250 Kč / pcs 207 Kč excl. VAT

(130 pcs)

Delivery to: 20.11.2024

Socket coupling in plastic corner design with 3/8" male tapered thread. Quick and easy installation of plastic tubing with 16 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

193 Kč –9 %

Black polyurethane hose 16/11 mm

(232 m)

144 Kč excl. VAT

174 Kč

PUJ polyurethane tubing in black 16/11 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1611S

Tip

193 Kč –9 %

Polyurethane tube red 16/11 mm

(272 m)

144 Kč excl. VAT

174 Kč

Polyurethane PUJ tubing in red 16/11 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1611R

Tip

193 Kč –9 %

Clear polyurethane tubing 16/11 mm

(194 m)

144 Kč excl. VAT

174 Kč

Polyurethane PUJ tubing in neutral transparent 16/11 mm design, particularly suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

Code: PUJ1611N

Tip

193 Kč –9 %

Polyurethane tube blue 16/11 mm

144 Kč excl. VAT

174 Kč

Polyurethane PUJ tubing in blue 16/11 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1611B

Tip

193 Kč –9 %

Polyurethane hose green 16/11 mm

(258 m)

144 Kč excl. VAT

174 Kč

Green PUJ polyurethane tubing 16/11 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1611G

Tip

193 Kč –9 %

Yellow polyurethane tube 16/11 mm

(>1000 m)

144 Kč excl. VAT

174 Kč

Polyurethane PUJ tubing in yellow 16/11 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1611Y

Show all related products

Product detailed description

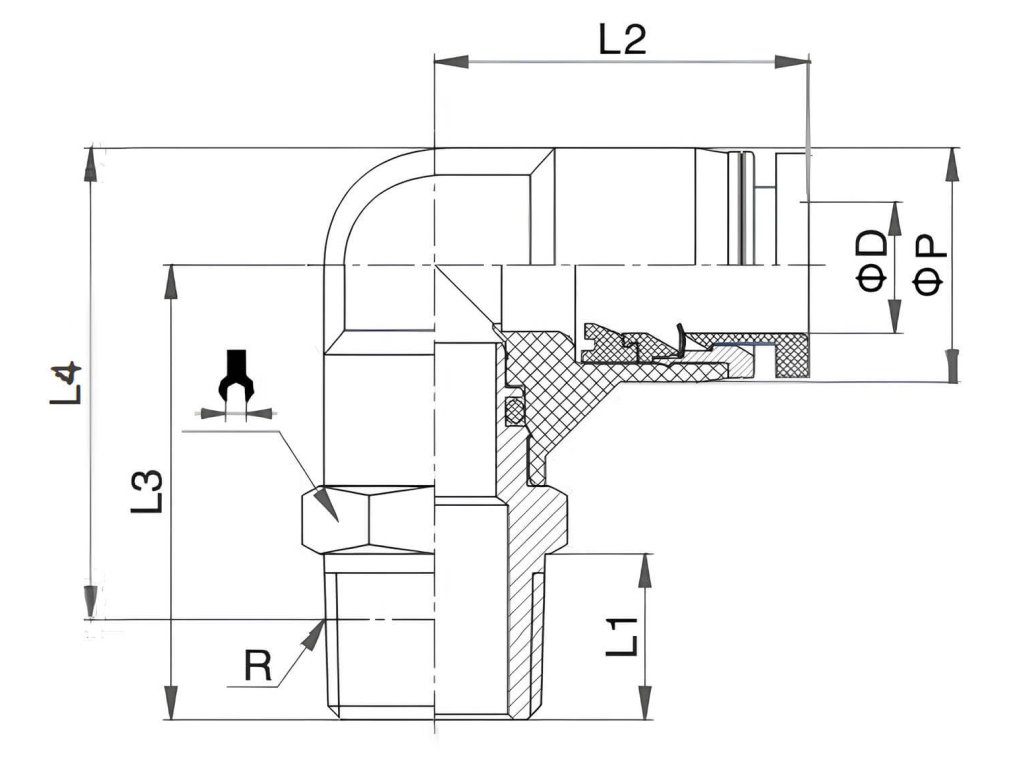

Corner fitting with external tapered thread 16 - R3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	16 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	24
Width:	54 mm
Seals:	PTFE
Thread:	R 3/8"
Shape:	Corner couplings
Connection system:	Plug-in system
