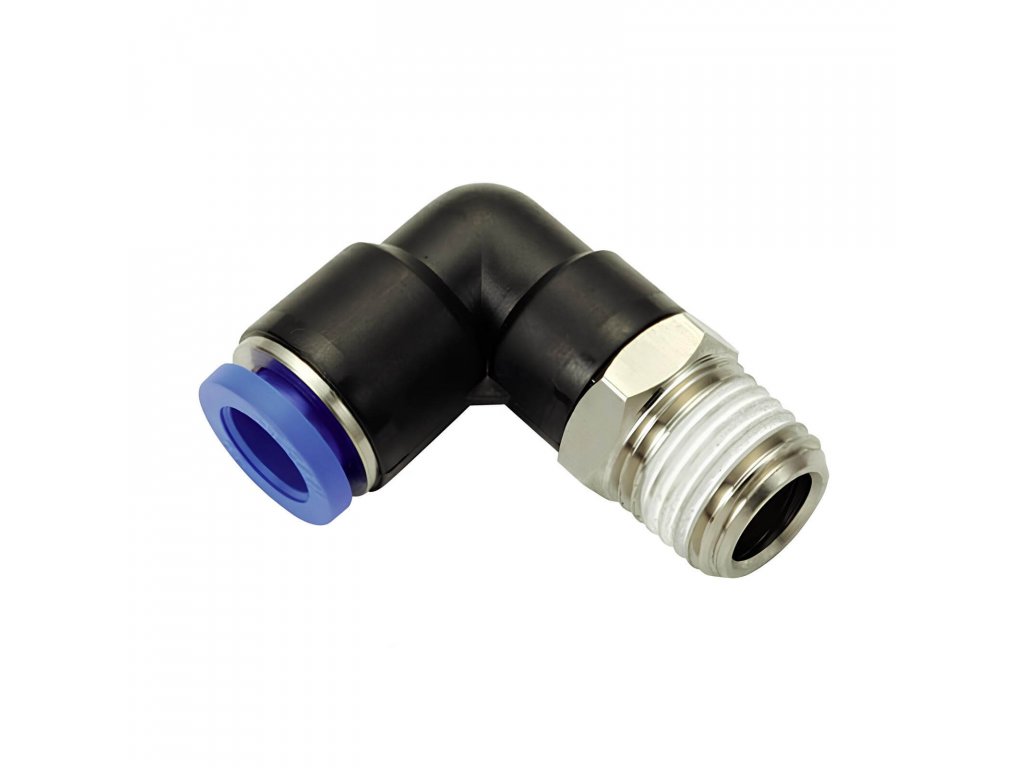

L-coupling 12 - R3/8"

Code: PL-3812

Tip

1 rating

Brand: Pneumatics & Hydraulics

156 Kč –10 %

156 Kč –10 % 140 Kč / pcs 116 Kč excl. VAT

(737 pcs)

Delivery to: 20.11.2024

Socket coupling in plastic corner design with 3/8" male tapered thread. Quick and easy installation of plastic tubing with 12 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

129 Kč –10 %

Black polyurethane hose 12/8 mm

(964 m)

96 Kč excl. VAT

116 Kč

PUJ polyurethane hoses in black 12/8 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ128S

Tip

129 Kč –10 %

Polyurethane tube red 12/8 mm

(>1000 m)

96 Kč excl. VAT

116 Kč

PUJ polyurethane tubing in red 12/8 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ128R

Tip

129 Kč –10 %

Clear polyurethane tubing 12/8 mm

(>1000 m)

96 Kč excl. VAT

116 Kč

PUJ polyurethane tubing in neutral transparent 12/8 mm design, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

Code: PUJ128N

Tip

129 Kč –10 %

Polyurethane tube blue 12/8 mm

(830 m)

96 Kč excl. VAT

116 Kč

PUJ polyurethane tubing in blue 12/8 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ128B

Tip

129 Kč –10 %

Polyurethane hose green 12/8 mm

(>1000 m)

96 Kč excl. VAT

116 Kč

Green PUJ polyurethane tubing 12/8 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ128G

Tip

129 Kč –10 %

Yellow polyurethane tube 12/8 mm

(>1000 m)

96 Kč excl. VAT

116 Kč

Polyurethane PUJ tubing in yellow 12/8 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ128Y

Show all related products

Product detailed description

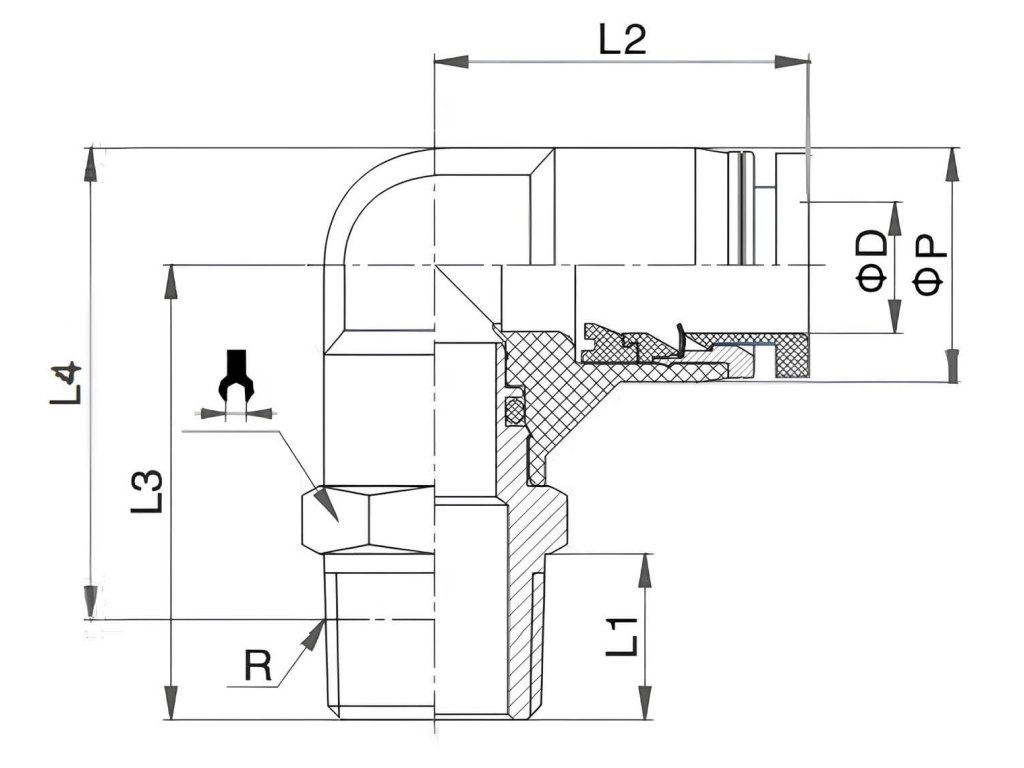

Corner fitting with external tapered thread 12 - R3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	19
Width:	47 mm
Seals:	PTFE
Thread:	R 3/8"
Shape:	Corner couplings
Connection system:	Plug-in system
