    Home / Fasteners / Plastic socket couplings; socket blue / L-couplings; external thread R / L-coupling 10 - R1/8"

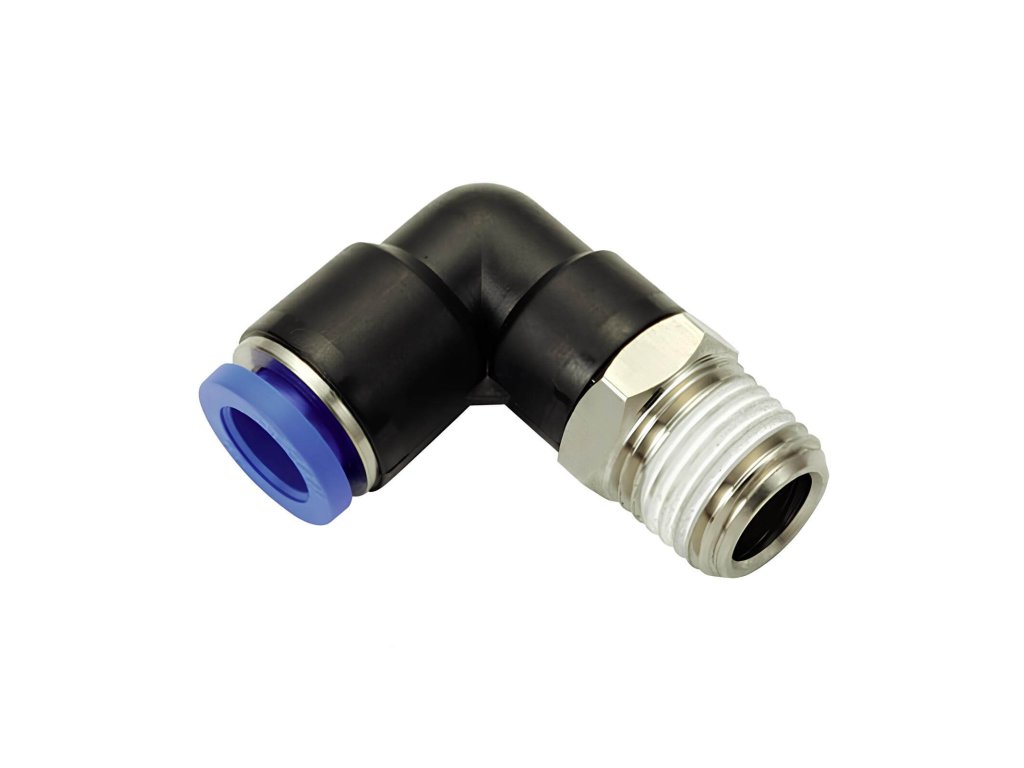

    L-coupling 10 - R1/8"

    Code: PL-1810
    Tip
    Not rated
    136 Kč –9 %
    L-coupling 10 - R1/8"
    136 Kč –9 % 123 Kč / pcs 102 Kč excl. VAT
    Stock (>1000 pcs)
    Delivery to:
    20.11.2024

    Socket coupling in plastic corner design with 1/8" male tapered thread. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

    Detailed information

    Related products

    Polyurethane tube black 10/6.5 mm
    Tip
    88 Kč –10 %
    Polyurethane tube black 10/6.5 mm
    Stock (>1000 m)
    65 Kč excl. VAT
    79 Kč

    PUJ polyurethane tubing in black 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging....

    Code: PUJ1065S
    Red polyurethane tube 10/6.5 mm
    Tip
    88 Kč –10 %
    Red polyurethane tube 10/6.5 mm
    Stock (>1000 m)
    65 Kč excl. VAT
    79 Kč

    Polyurethane PUJ tubing in red 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ1065R
    Clear polyurethane tubing 10/6.5 mm
    Tip
    88 Kč –10 %
    Clear polyurethane tubing 10/6.5 mm
    Stock (>1000 m)
    65 Kč excl. VAT
    79 Kč

    Polyurethane PUJ tubing in neutral transparent 10/6.5 mm design, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

    Code: PUJ1065N
    Polyurethane tube blue 10/6.5 mm
    Tip
    88 Kč –10 %
    Polyurethane tube blue 10/6.5 mm
    Stock (411 m)
    65 Kč excl. VAT
    79 Kč

    Polyurethane PUJ tubing in blue 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ1065B
    Polyurethane tubing green 10/6.5 mm
    Tip
    88 Kč –10 %
    Polyurethane tubing green 10/6.5 mm
    Stock (>1000 m)
    65 Kč excl. VAT
    79 Kč

    Green polyurethane PUJ tubing 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ1065G
    Yellow polyurethane tube 10/6.5 mm
    Tip
    88 Kč –10 %
    Yellow polyurethane tube 10/6.5 mm
    Stock (>1000 m)
    65 Kč excl. VAT
    79 Kč

    Polyurethane PUJ tubing in yellow 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging....

    Code: PUJ1065Y
    Show all related products Previous product Next product

    Product detailed description

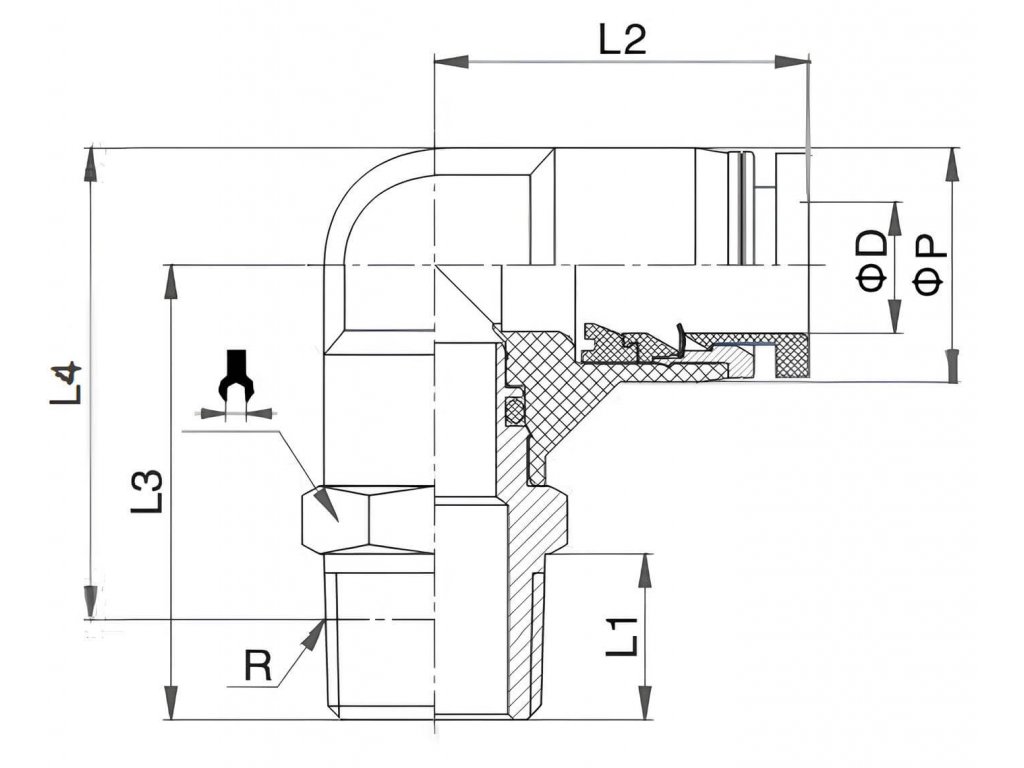

    Corner fitting with external tapered thread 10 - R1/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: L-couplings with male thread R
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 17
    Width: 42 mm
    Seals: PTFE
    Thread: R 1/8"
    Shape: Corner couplings
    Connection system: Plug-in system
