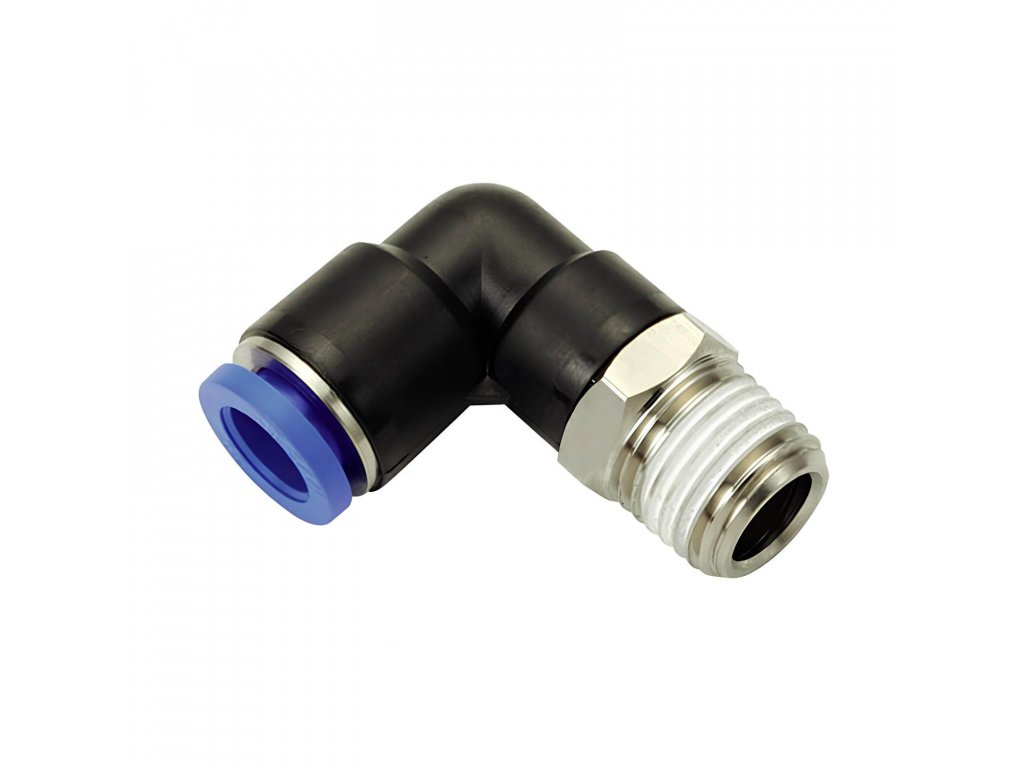

L-coupling 10 - R1/4"

Code: PL-1410

Tip

Not rated

Brand: Pneumatics & Hydraulics

136 Kč –9 %

136 Kč –9 % 123 Kč / pcs 102 Kč excl. VAT

(498 pcs)

Delivery to: 25.12.2024

Socket coupling in plastic corner design with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for automation, pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum operating temperature in the range -10/60°C at a maximum medium pressure of 10 bar.

Detailed information

Tip

88 Kč –10 %

Polyurethane tube black 10/6.5 mm

(>1000 m)

65 Kč excl. VAT

79 Kč

PUJ polyurethane tubing in black 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging....

Code: PUJ1065S

Tip

88 Kč –10 %

Red polyurethane tube 10/6.5 mm

(>1000 m)

65 Kč excl. VAT

79 Kč

Polyurethane PUJ tubing in red 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1065R

Tip

88 Kč –10 %

Clear polyurethane tubing 10/6.5 mm

(>1000 m)

65 Kč excl. VAT

79 Kč

Polyurethane PUJ tubing in neutral transparent 10/6.5 mm design, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone,...

Code: PUJ1065N

Tip

88 Kč –10 %

Polyurethane tube blue 10/6.5 mm

(979 m)

65 Kč excl. VAT

79 Kč

Polyurethane PUJ tubing in blue 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1065B

Tip

88 Kč –10 %

Polyurethane tubing green 10/6.5 mm

(>1000 m)

65 Kč excl. VAT

79 Kč

Green polyurethane PUJ tubing 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

Code: PUJ1065G

Tip

88 Kč –10 %

Yellow polyurethane tube 10/6.5 mm

(>1000 m)

65 Kč excl. VAT

79 Kč

Polyurethane PUJ tubing in yellow 10/6.5 mm, especially suitable for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging....

Code: PUJ1065Y

Show all related products

Product detailed description

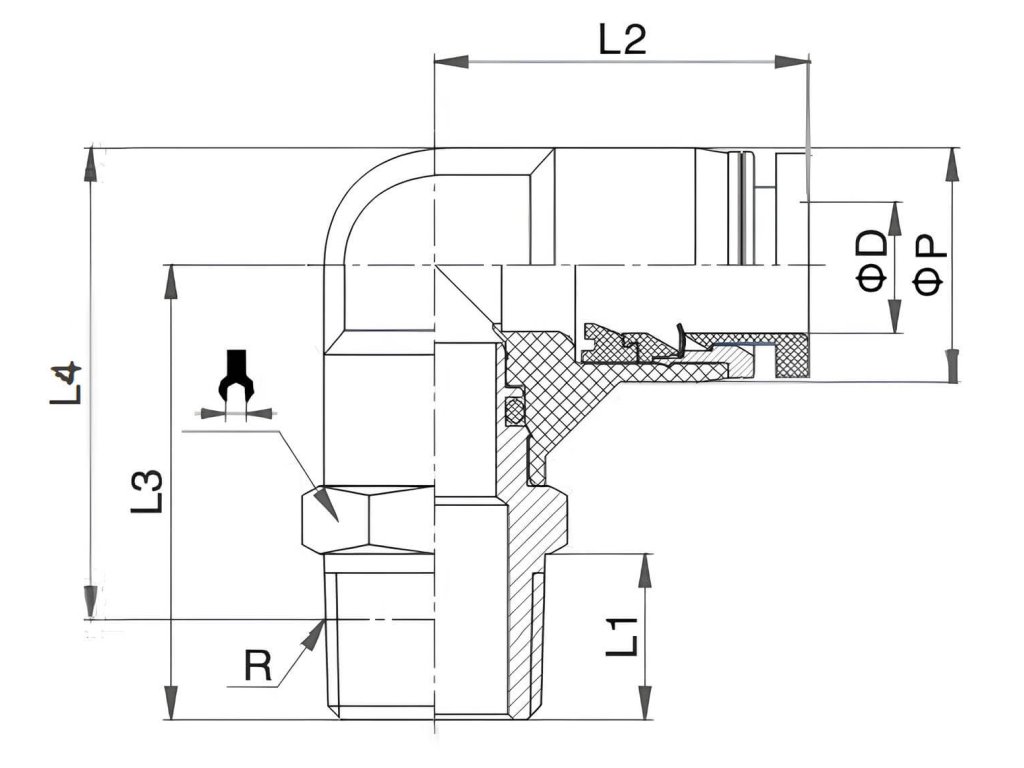

Corner fitting with external tapered thread 10 - R1/4"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	L-couplings with male thread R
Pressure:	10 bars
A tube:	10 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	17
Width:	43 mm
Seals:	PTFE
Thread:	R 1/4"
Shape:	Corner couplings
Connection system:	Plug-in system

Tip

118 Kč –10 %

L-coupling 10 - G1/4"

(558 pcs)

88 Kč excl. VAT

106 Kč

Socket coupling in corner plastic version with 1/4" male pipe thread. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially for...

Code: PLG-1410

107 Kč –5 %

L-thread 10/8 mm - G1/4"

(167 pcs)

83 Kč excl. VAT

101 Kč

The corner fitting with 10/8 mm hose nut and G1/4" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications requiring...

Code: RPLG-1410

174 Kč –5 %

L-thread with external thread 10 - G1/4"

(240 pcs)

136 Kč excl. VAT

165 Kč

Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly...

Code: MPLG-1410

Corner stainless steel fitting 10 - G1/4"

Original parts

3 652 Kč –5 %

Corner stainless steel fitting 10 - G1/4"

2 867 Kč excl. VAT

3 469 Kč

XPLG socket couplings are suitable for coupling hoses and pipes in automation technology with precise dimensions and pressure ranges from - 1 to 15 bar and temperatures up to...

Code: XPLG-1410

Corner stainless steel fitting 10 - R1/4"

Original parts

3 272 Kč –5 %

Corner stainless steel fitting 10 - R1/4"

2 569 Kč excl. VAT

3 108 Kč

XPLG socket couplings are suitable for coupling hoses and pipes in automation technology with precise dimensions and pressure ranges from - 1 to 15 bar and temperatures up to...

Code: XPL-1410

384 Kč –4 %

Self-closing l-coupling, rotating external 10 mm - R1/4"

302 Kč excl. VAT

365 Kč

Special corner fitting in socket design with check valve for 10 mm hose and 1/4" male tapered thread. If the hose is inserted in the coupling, the coupling is through, otherwise...

Code: SPL-1410

168 Kč –4 %

L-thread with external thread 10 - R1/4"

(104 pcs)

132 Kč excl. VAT

160 Kč

Socket couplings in corner "L" design for quick and easy assembly of plastic hoses with 10 mm outer diameter. Coupling terminated with external tapered thread R 1/4"....

Code: MPL-1410

RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi

271 Kč –2 %

Dutchman R1 1/4" internal thread fitting

(10 pcs)

217 Kč excl. VAT

263 Kč

Holendr cast iron fitting with internal threads R 1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

Code: RA340-54

31 Kč –3 %

Sealing ring made of elastomer and brass DR-38EL

(20 pcs)

25 Kč excl. VAT

30 Kč

Designed for G 3/8" thread. The inner diameter is 16.9 mm and the outer diameter is 21.8 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-38EL

18 Kč –5 %

Copper sealing ring DR-34CU

(5 pcs)

14 Kč excl. VAT

17 Kč

Designed for G 3/4" thread. The inner diameter is 27 mm and the outer diameter is 32 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-34CU

88 Kč –5 %

Copper sealing ring DR-20CU

69 Kč excl. VAT

83 Kč

Designed for G 2" thread. The inner diameter is 60 mm and the outer diameter is 68 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-20CU

157 Kč –2 %

Dutchman fitting with internal threads R1"

(10 pcs)

126 Kč excl. VAT

153 Kč

Holendr cast iron fitting with internal threads R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

Code: RA340-10

20 Kč –5 %

Sealing ring made of Teflon PTFE DR-34TE

16 Kč excl. VAT

19 Kč

Designed for G 3/4" thread. The inner diameter is 26.5 mm and the outer diameter is 33.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-34TE

13 Kč –7 %

Sealing ring made of Teflon PTFE DR-38TE

(25 pcs)

10 Kč excl. VAT

12 Kč

Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-38TE

22 Kč –4 %

Copper sealing ring DR-10CU

(5 pcs)

17 Kč excl. VAT

21 Kč

Designed for G 1" thread. The inner diameter is 33 mm and the outer diameter is 39 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

Code: DR-10CU

Show all alternative products

Produktový list (728.9 kB)

Be the first who will post an article to this item!

Add a rating

Be the first who will post an article to this item!

Add a comment

Login to your account

L-coupling 10 - R1/4"

Related products

Product detailed description

Corner fitting with external tapered thread 10 - R1/4"in plastic design

Additional parameters

Corner fitting with external tapered thread 10 - R1/4"
in plastic design
