Ball valve V101 with single-acting drive SR - 3/4"
Code: V101-34SRProduct detailed description

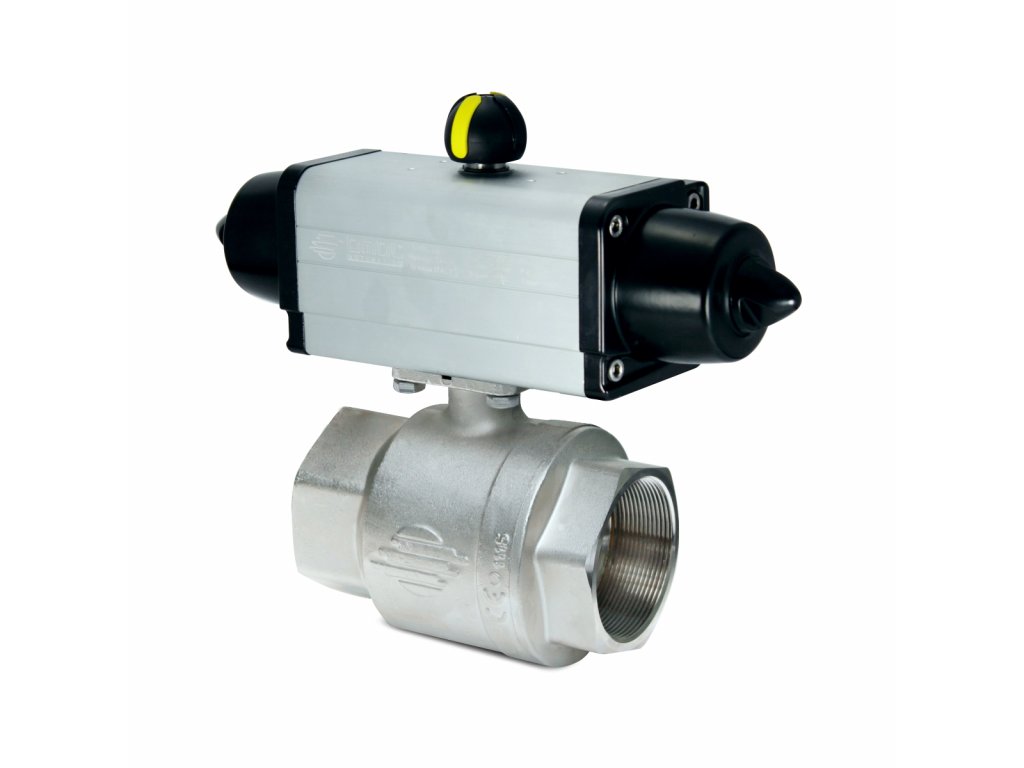

Ball valves V101 with air actuator V101-34SR
- Ball valve assembly with internal threads - type V101 and OMAL pneumatic actuator (double-acting DA or single-acting SR version)
- Drive control pressure of at least 5.5 bar
- For sealing of pipelines of non-aggressive media (water, air, etc.) in industry
Additional parameters
| Category: | V101 straight taps with pneumatic actuator |
|---|---|
| Pressure: | 50 bar |
| Connecting: | Thread |
| Material: | Brass |
| Medium: | Air, Water |
| Standard: | ISO 5211 |
| Thread design: | Internal |
| Brightness DN: | 20 |
| Seals: | PTFE |
| Drive type: | Single-acting pneumatic actuator |
| Thread: | G 3/4" |
| Controls: | Pneumatic drive |
| Design of fittings: | Direct, Two-piece |
