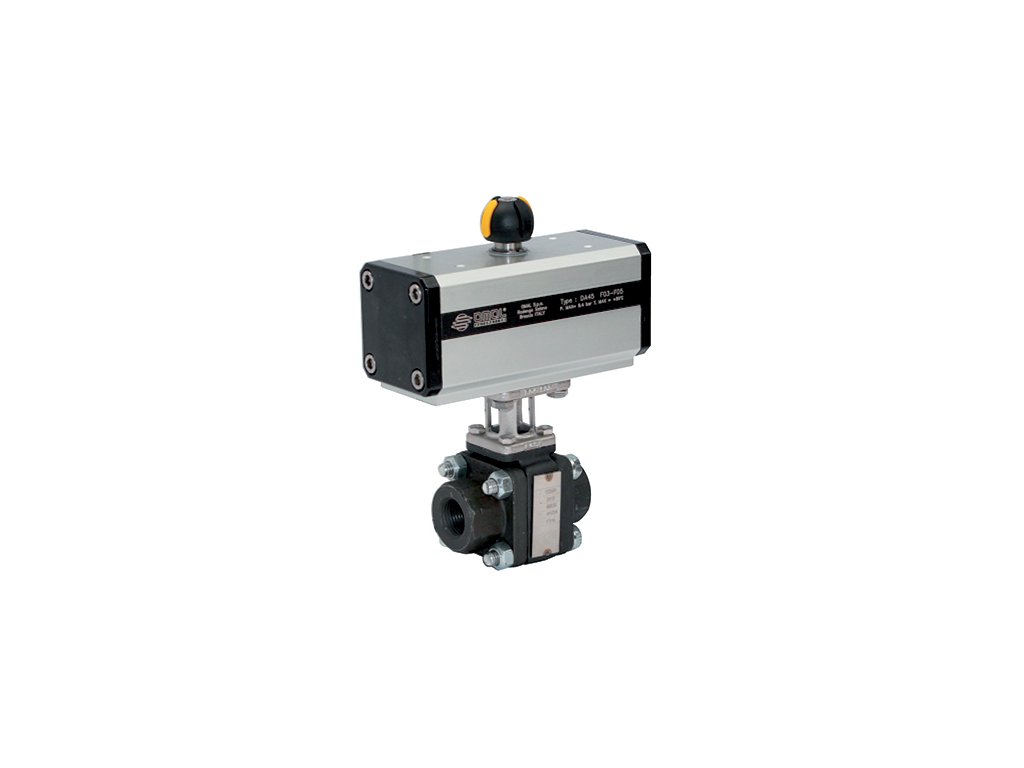

K809 Double Actuator Ball Valve - 3"
Code: K809T-30DAProduct detailed description
Ball valve K809T-30DA
- carbon steel ball valve in double acting DA design
- pTFE+CG seals for temperatures up to 250°C
- actuator operating pressure of at least 5.5 bar
- connection with internal threads DIN ISO 228
- for sealing of pipelines with moderately aggressive media and high pressure
Additional parameters
| Category: | Ball valves K809 with pneumatic actuator |
|---|---|
| Pressure: | 68 bar |
| Connecting: | Thread |
| Material: | Carbon steel |
| Medium: | Air, Water, Slightly aggressive media |
| Standard: | EN 10204-3.1, ISO 5211 |
| Thread design: | Internal |
| Brightness DN: | 80 |
| Seals: | PTFE, CG |
| Drive type: | Double acting pneumatic drive |
| Thread: | G 3" |
| Controls: | Pneumatic drive |
| Design of fittings: | Direct, Automated, Three-part |
