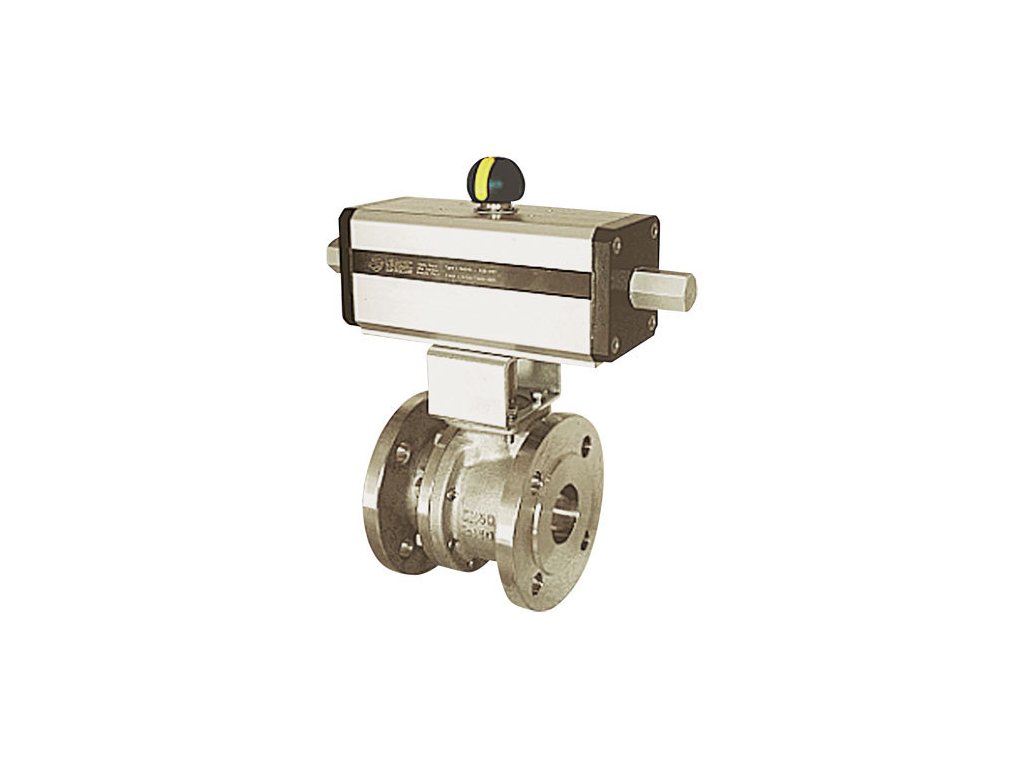

Ball valve 06TTT with double-acting drive - DN150
Code: 06TTT-40-150DAProduct detailed description
Ball valve 06TTT-40-150DA
- 06TTT flanged ball valve system and OMAL type DA pneumatic actuator
- pTFE seals for temperatures up to 200°C
- actuator operating pressure of at least 5.5 bar
- for sealing of pipelines of slightly aggressive media in the chemical and food industry
Additional parameters
| Category: | Ball valves VL851F with pneumatic actuator |
|---|---|
| Pressure: | 40 bar |
| Connecting: | Flange |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media |
| Standard: | DIN3202-F4, ISO 10204-3.1, ISO 5211 |
| Brightness DN: | 150 |
| Seals: | PTFE |
| Drive type: | Double acting pneumatic drive |
| Controls: | Pneumatic drive |
| Design of fittings: | Automated, Intermediate flanges, Two-piece |
