    Ball valves K806 with pneumatic actuator

    • stainless steel ball valves in double acting DA or single acting SR design
    • pTFE+CG seals for temperatures up to 250°C
    • actuator operating pressure of at least 5.5 bar
    • connections with DIN ISO 228 internal threads or with threaded sleeves
    • for closing aggressive and high-pressure pipelines

    Ball valves K806T with internal threads and double acting pneumatic actuator DA
    Order no. Thread
    "    		 Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    double acting    		 Kulové kohouty K806T s vnitřními závity s dvojčinným pneupohonem DA
    K806T-14DA 1/4" 8 140 up to +250°C stainless steel 1.4408 PTFE+CG DA30
    K806T-38DA 3/8" 10 140 up to +250°C stainless steel 1.4408 PTFE+CG DA30
    K806T-12DA 1/2" 15 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806T-34DA 3/4" 20 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806T-10DA 1" 25 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806T-54DA 1 1/4" 32 140 up to +250°C stainless steel 1.4408 PTFE+CG DA60
    K806T-15DA 1 1/2" 40 140 up to +250°C stainless steel 1.4408 PTFE+CG DA120
    K806T-20DA 2" 50 100 up to +250°C stainless steel 1.4408 PTFE+CG DA180
    K806T-25DA 2 1/2" 65 100 up to +250°C stainless steel 1.4408 PTFE+CG DA180
    K806T-30DA 3" 80 68 up to +250°C stainless steel 1.4408 PTFE+CG DA240

    K806T ball valves with internal threads and single acting SR pneumatic actuator
    Order no. Thread
    "    		 Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    single-acting    		 Kulové kohouty K806T s vnitřními závity s jednočinným pneupohonem SR
    K806T-14SR 1/4" 8 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806T-38SR 3/8" 10 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806T-12SR 1/2" 15 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806T-34SR 3/4" 20 140 up to +250°C stainless steel 1.4408 PTFE+CG SR45
    K806T-10SR 1" 25 140 up to +250°C stainless steel 1.4408 PTFE+CG SR45
    K806T-54SR 1 1/4" 32 140 up to +250°C stainless steel 1.4408 PTFE+CG SR60
    K806T-15SR 1 1/2" 40 140 up to +250°C stainless steel 1.4408 PTFE+CG SR120
    K806T-20SR 2" 50 100 up to +250°C stainless steel 1.4408 PTFE+CG SR120
    K806T-25SR 2 1/2" 65 100 up to +250°C stainless steel 1.4408 PTFE+CG SR180
    K806T-30SR 3" 80 68 up to +250°C stainless steel 1.4408 PTFE+CG SR240

    Ball valves K806W with guides and double acting pneumatic actuator DA
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    double acting    		 Kulové kohouty K806W s návarky s dvojčinným pneupohonem DA
    K806W-008DA 8 140 up to +250°C stainless steel 1.4408 PTFE+CG DA30
    K806W-010DA 10 140 up to +250°C stainless steel 1.4408 PTFE+CG DA30
    K806W-015DA 15 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806W-020DA 20 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806W-025DA 25 140 up to +250°C stainless steel 1.4408 PTFE+CG DA45
    K806W-032DA 32 140 up to +250°C stainless steel 1.4408 PTFE+CG DA60
    K806W-040DA 40 140 up to +250°C stainless steel 1.4408 PTFE+CG DA120
    K806W-050DA 50 100 up to +250°C stainless steel 1.4408 PTFE+CG DA180
    K806W-065DA 65 100 up to +250°C stainless steel 1.4408 PTFE+CG DA180
    K806W-080DA 80 68 up to +250°C stainless steel 1.4408 PTFE+CG DA240

    Ball valves K806W with guides and single-acting pneumatic actuator SR
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    single-acting    		 Kulové kohouty K806W s návarky s jednočinným pneupohonem SR
    K806W-008SR 8 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806W-010SR 10 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806W-015SR 15 140 up to +250°C stainless steel 1.4408 PTFE+CG SR30
    K806W-020SR 20 140 up to +250°C stainless steel 1.4408 PTFE+CG SR45
    K806W-025SR 25 140 up to +250°C stainless steel 1.4408 PTFE+CG SR45
    K806W-032SR 32 140 up to +250°C stainless steel 1.4408 PTFE+CG SR60
    K806W-040SR 40 140 up to +250°C stainless steel 1.4408 PTFE+CG SR120
    K806W-050SR 50 100 up to +250°C stainless steel 1.4408 PTFE+CG SR120
    K806W-065SR 65 100 up to +250°C stainless steel 1.4408 PTFE+CG SR180
    K806W-080SR 80 68 up to +250°C stainless steel 1.4408 PTFE+CG SR240

    Bestsellers

    Ball valve K806 with single-acting drive - DN80
    103 081 Kč –100 %
    Ball valve K806 with single-acting drive - DN80
    up to 14 days
    Code: K806W-080SR
    Was: 103 081 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN65
    73 962 Kč –100 %
    Ball valve K806 with single-acting drive - DN65
    up to 14 days
    Code: K806W-065SR
    Was: 73 962 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN50
    45 531 Kč –100 %
    Ball valve K806 with single-acting drive - DN50
    up to 14 days
    Code: K806W-050SR
    Was: 45 531 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN40
    35 824 Kč –100 %
    Ball valve K806 with single-acting drive - DN40
    up to 14 days
    Code: K806W-040SR
    Was: 35 824 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN32
    25 605 Kč –100 %
    Ball valve K806 with single-acting drive - DN32
    up to 14 days
    Code: K806W-032SR
    Was: 25 605 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN25
    23 029 Kč –100 %
    Ball valve K806 with single-acting drive - DN25
    up to 14 days
    Code: K806W-025SR
    Was: 23 029 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN20
    20 833 Kč –100 %
    Ball valve K806 with single-acting drive - DN20
    up to 14 days
    Code: K806W-020SR
    Was: 20 833 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN15
    15 313 Kč –99 %
    Ball valve K806 with single-acting drive - DN15
    up to 14 days
    Code: K806W-015SR
    Was: 15 313 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with single-acting drive - DN10
    14 728 Kč –99 %
    Ball valve K806 with single-acting drive - DN10
    up to 14 days
    Code: K806W-010SR
    Was: 14 728 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Ball valve K806 with double-acting drive - DN80
    94 853 Kč –100 %
    Ball valve K806 with double-acting drive - DN80
    up to 14 days
    Code: K806W-080DA
    Was: 94 853 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Show more products
    4 items total
    Ball valve K806 with double-acting drive - DN80
    94 853 Kč –100 %
    Ball valve K806 with double-acting drive - DN80
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Ball valves K806 with DN80 clearance. Double-acting version with DA240 drive made of stainless steel DIN 1,4408. Designed for pressures up to 68 bar and temperatures up to...

    Code: K806W-080DA
    Ball valve K806 with single-acting drive - DN80
    103 081 Kč –100 %
    Ball valve K806 with single-acting drive - DN80
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Ball valves K806 with DN80 clearance. Double-acting version with SR240 drive made of stainless steel DIN 1,4408. Designed for pressures up to 68 bar and temperatures up to...

    Code: K806W-080SR

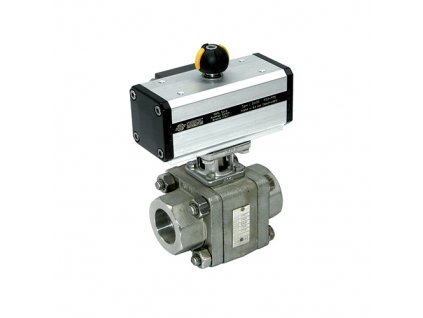

    K806 Double Actuator Ball Valve - 3"
