    Ball valves 02TTT with pneumatic actuator

    • pekoss 02TTT flanged ball valve system and OMAL type DA and SR pneumatic actuator
    • pTFE seals for temperatures up to 200 °C
    • actuator operating pressure of at least 5.5 bar
    • for sealing of pipelines of non-aggressive media

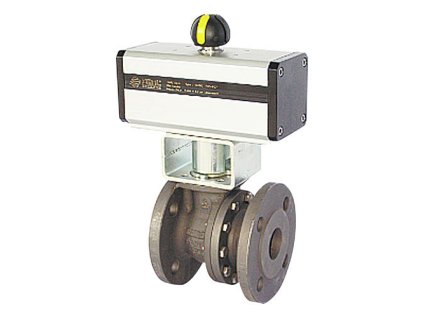

    Ball valves 02TTT with double acting pneumatic actuator DA
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    double acting    		 Kulové kohouty 02TTT s dvojčinným pneupohonem DA
    02TTT-16-015DA 15 16 up to +200°C gray cast iron GG25 PTFE DA15
    02TTT-16-020DA 20 16 up to +200°C gray cast iron GG25 PTFE DA30
    02TTT-16-025DA 35 16 up to +200°C gray cast iron GG25 PTFE DA30
    02TTT-16-032DA 32 16 up to +200°C gray cast iron GG25 PTFE DA45
    02TTT-16-040DA 40 16 up to +200°C gray cast iron GG25 PTFE DA60
    02TTT-16-050DA 50 16 up to +200°C gray cast iron GG25 PTFE DA90
    02TTT-16-065DA 65 16 up to +200°C gray cast iron GG25 PTFE DA120
    02TTT-16-080DA 80 16 up to +200°C gray cast iron GG25 PTFE DA180
    02TTT-16-100DA 100 16 up to +200°C gray cast iron GG25 PTFE DA240
    02TTT-16-125DA 125 16 up to +200°C gray cast iron GG25 PTFE DA480
    02TTT-16-150DA 150 16 up to +200°C gray cast iron GG25 PTFE DA720
    02TTT-16-200DA 200 16 up to +200°C gray cast iron GG25 PTFE DA960

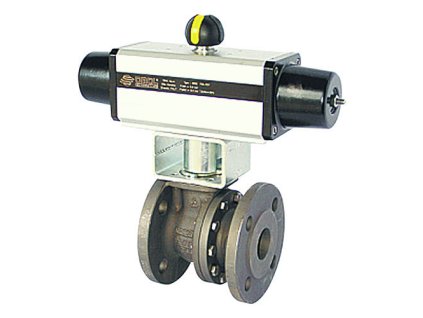

    Ball valves 02TTT with single-acting pneumatic actuator SR
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drive
    single-acting    		 Kulové kohouty 02TTT s jednočinným pneupohonem SR
    02TTT-16-015SR 15 16 up to +200°C gray cast iron GG25 PTFE SR15
    02TTT-16-020SR 20 16 up to +200°C gray cast iron GG25 PTFE SR30
    02TTT-16-025SR 25 16 up to +200°C gray cast iron GG25 PTFE SR30
    02TTT-16-032SR 32 16 up to +200°C gray cast iron GG25 PTFE SR45
    02TTT-16-040SR 40 16 up to +200°C gray cast iron GG25 PTFE SR60
    02TTT-16-050SR 50 16 up to +200°C gray cast iron GG25 PTFE SR90
    02TTT-16-065SR 65 16 up to +200°C gray cast iron GG25 PTFE SR120
    02TTT-16-080SR 80 16 up to +200°C gray cast iron GG25 PTFE SR180
    02TTT-16-100SR 100 16 up to +200°C gray cast iron GG25 PTFE SR240
    02TTT-16-125SR 125 16 up to +200°C gray cast iron GG25 PTFE SR480
    02TTT-16-150SR 150 16 up to +200°C gray cast iron GG25 PTFE SR720
    02TTT-16-200SR 200 16 up to +200°C gray cast iron GG25 PTFE SR960
